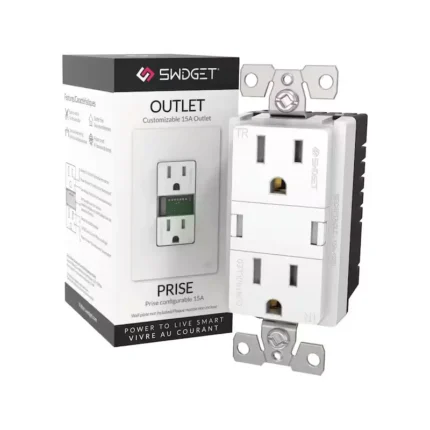

Panasonic Swidget R1015SWA 15A Outlet
| Product Number: |
R1015SWA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,15A |
| Outlet Receptacle Configuration: |
NEMA 5-15R |
| Resistive Load Rating: |
1800W |
| Motor Load Rating: |
0.5HP |
| Inductive Load Rating: |
8A@125VAC (PF 0.4) |
| Relay Mechanical Endurance Rating: |
1 ,000 ,000 cycles (or 274 years @ 10 cycles per day) |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

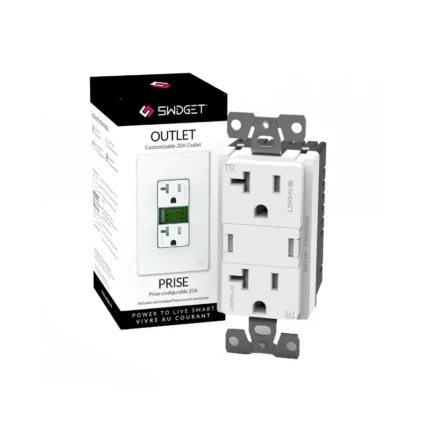

Panasonic Swidget R1020SWA 20A Outlet
| Product Number: |
R1020SWA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,20A |
| Outlet Receptacle Configuration: |
NEMA 5-20R |
| Resistive Load Rating: |
2400W |
| Motor Load Rating: |
1.0HP |
| Inductive Load Rating: |
– |
| Relay Mechanical Endurance Rating: |
2 ,000 ,000 cycles (or 548 years @ 10 cycles per day) |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

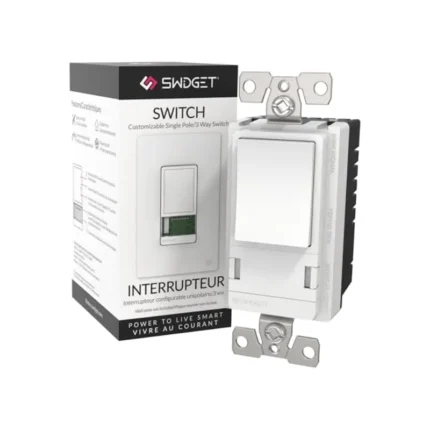

Panasonic Swidget S16001WA On-Off Switch
| Product Number: |
S16001WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,5A |
| LED/CFL Load Rating: |
300W |
| Incandescent Load Rating: |
600W |
| Horsepower Load Rating: |
0.3 HP |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single pole ,dry contact |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

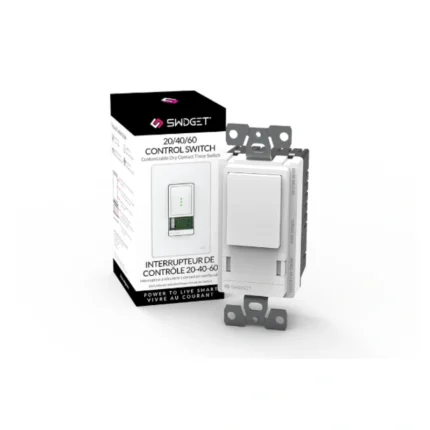

Panasonic Swidget S16008WA 20-40-60 Dry Contact Timer Switch
| Product Number: |
S16008WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,5A |
| LED/CFL Load Rating: |
300W |
| Incandescent Load Rating: |
600W |
| Horsepower Load Rating: |
0.3 HP |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single pole ,dry contact |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

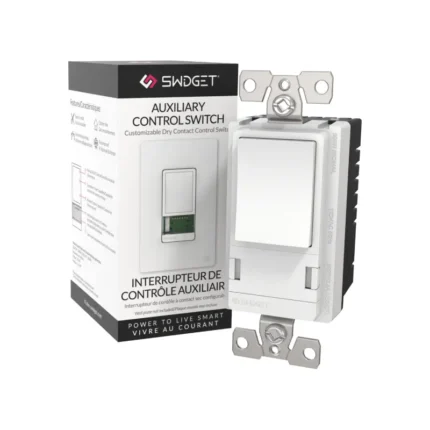

Panasonic Swidget S16009WA Auxiliary Control Switch
| Product Number: |
S16009WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,5A |
| LED/CFL Load Rating: |
300W |
| Incandescent Load Rating: |
600W |
| Horsepower Load Rating: |
0.3 HP |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single pole ,dry contact |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

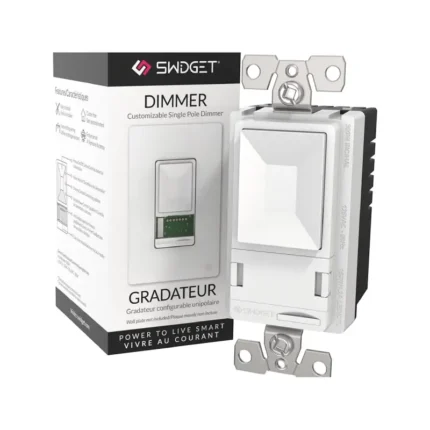

Panasonic Swidget SD3001WA Dimmer Switch
| Product Number: |
SD3001WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,2.5A |
| LED/CFL Load Rating: |
150Q |
| Incandescent Load Rating: |
300W |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single (1p) |
| Testing and Code Compliance: |
UL1472/ UL1310 ,CSA C22.2 #184.1 ,#223 (Canada and US) |
| Compatibility: |
NEMA SSL 7A Compliant |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |
Panasonic Swidget WI000UWA WIFI Control Module
Panasonic Swidget WI001UWA WIFI + USB Module
| Product Number: |
WI001UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Output Power Rating: |
5Vdc +/-5% @ 2A (Class 2) |
| USB Output Connector: |
Type A |
| Smart Charge Detection: |
BC1.2 compliant |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |

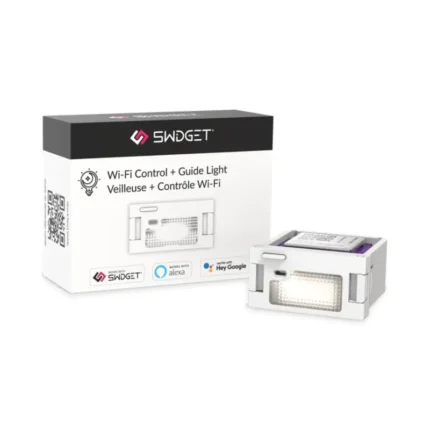

Panasonic Swidget WI002UWA WIFI + Guidelight Module
Panasonic Swidget WI003UWA WIFI + Power-Out Module
| Product Number: |
WI003UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| LED Intensity Specification: |
1900mcd@20mA |
| Operation: |
Automated illumination at loss of power |
| Max Run Time: |
1 hour |
| Charge Times: |
20%@5min, 80%@60min |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |

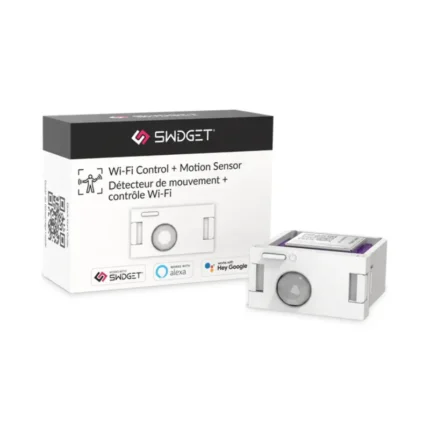

Panasonic Swidget WI004UWA WIFI + Motion Module
| Product Number: |
WI004UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Detection Range : |
3m |
| Field of view: |
120 degrees |
| Vacancy Timer: |
Adjustable between 1-60 minutes |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |
Panasonic Swidget WI005UWA WIFI + Temp / Humidity Module
| Product Number: |
WI005UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Temperature Range: |
-10 – 40 °C (+/- 1 °C {after calibration}) |
| Relative Humidity Range: |
0-100% {+/- 5% RH) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |
Panasonic Swidget WI006UWA WIFI + Temp / Humidity / Motion Module
| Product Number: |
WI006UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Detection Range : |
3m |
| Field of view: |
120 degrees |
| Vacancy Timer: |
Adjustable between 1-60 minutes |
| Temperature Range: |
-10 – 40 °C (+/- 1 °C {after calibration}) |
| Relative Humidity Range: |
0-100% {+/- 5% RH) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |

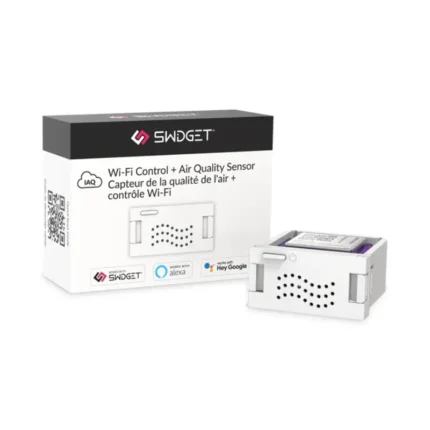

Panasonic Swidget WI008UWA WIFI + Indoor Air Quality Module
| Product Number: |
WI008UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Temperature Range: |
-10 – 40 °C (+/- 1 °C {after calibration}) |
| Relative Humidity Range: |
0-100% {+/- 5% RH) |
| Air Pressure: |
300 – 1100 hPa (+/-2hPa) |
| Calculated IAQ: |
0 – 500 |
| Calculated TVOC: |
0- 1000 ppb (TBC) |
| Calculated eCO2 |
400 – 6000 ppm (TBC) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |
