Panasonic FV-15NLFS1H WhisperFresh Select Fresh Air Supply Fan, 50-150 CFM
SKU:
PANFV15NLFS1H
| Model number: | FV-15NLFS1H |
|---|---|
| Fan Type: | Fan Only |
| Air Volume Supply (CFM): | @0.2 and 0.3= 50, 60, 70, 80, 90, 100, 110, 130, 150@0.4=50, 60, 70, 80, 90, 100, 110, 130, 130 |
| Power Consumption (Watts): | 50 CFM=8.2, 60=9.3, 70=10.0, 80=12.4, 90= 13.5, 100=15.3, 110=16.7, 130=22.6, 150=27.3 |
| Energy Efficiency (CFM/Watt): | 50 CFM=7.40, 60 CFM=7.58, 70 CFM=7.64, 80 CFM=7.83, 90 CFM=7.61, 100 CFM, 7.45, 110 CFM=7.05, 130 CFM=6.30, 150 CFM=5.59 |
| Current (Amps): | 50=0.20, 60=0.15, 70=0.16, 80= 0.18, 90=0.20, 100=0.23, 110=0.25, 130=0.33, 150, 0.41 |
| Power Rating (V/Hz): | 120/60 |
| Motor Type (AC/DC): | ECM |
| ENERGY STAR® Certified: | Yes |
| Other Approved Codes and Standards: | ASHRAE 62.2, LEED CA Tittle 24 |
| Duct Diameter: | 6 inch |
| Mounting Options: | Vertical /Horizontal |
| Ventilation Design Approach: | Supply Ventilation, Balance Ventilation when used with an exhaust fan |
| Warranty: | 6 year ECM motor/3 year parts |
| Industry: | Residential, Light Commercial |
| Radiation Damper Available: | N/A |
| Available Options | Air Supply Fan – FV15NLFS1H |
Panasonic FV-CSVK1 WhisperGreen Select Condensation Sensor Module
SKU:
PANFVCSVK1
| Advanced Features: | Humidity Control |
|---|---|
| Construction Type: | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Humidity/Condensation Sensor: | Yes |
| Industry: | Residential. Light Commercial. |
| Product Family Name: | WhisperGreen Select Fan. WhisperGreen Select Fan/Light. |
| Available Options | Condensation Sensor Module – FVCSVK1 |
Panasonic FV-JD Transfer Register Box For WhisperValue Fans
SKU:
PANFVJD
| Advanced Features: | Single Speed |
|---|---|
| CFM: | 80-110. 120-150 |
| Construction Type: | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Ventilation Design Approach: | Continuous Ventilation. Spot Ventilation |
| Duct Diameter: | 3″. 4″ |
| Fan Type: | Fan only. Fan/Light CFL |
| Industry: | Residential. Light Commercial |
| Installation: | Wall Mount |
| Mounting Options: | Ceiling Mount. Wall Mount(UL). Tub/Shower(UL) |
| Product Family Name: | WhisperValue DC. WhisperValue Lite |

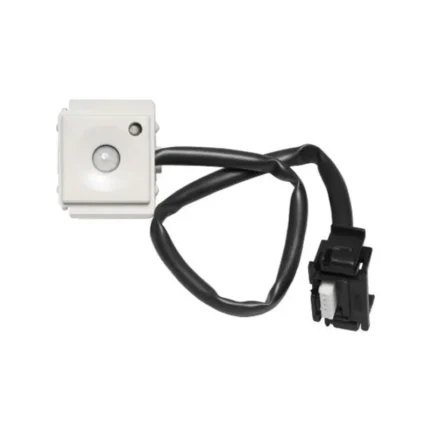

Panasonic FV-MSVK1 WhisperGreen Select Motion Sensor Module
SKU:
PANFVMSVK1
| Advanced Features: | Motion Sensor |
|---|---|
| Construction Type: | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Industry: | Residential. Light Commercial. |
| Product Family Name: | WhisperGreen Select Fan. WhisperGreen Select Fan/Light. |
| Available Options | Motion Sensor Module – FVMSVK1 |
Panasonic FV-NLF46RES Recessed Inlet with Light
SKU:
PANFVNLF46RES
| Additional info: | *Only for Lamp |
|---|---|
| Advanced Features: | Single Speed |
| California Title 24 Compliant: | Yes |
| Color Rendering Index: | 92 |
| Color Temperature (Kelvin): | 2, 700 |
| Construction Type: | Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. |
| Ventilation Design Approach: | Continuous Ventilation. Spot Ventilation. |
| ENERGY STAR® Certified: | Yes |
| Fan Type: | Fan/Light – LED |
| Housing Collar Opening (Inches): | 6″ Round |
| Industry: | Residential. Light Commercial. |
| Inlet: | Inlet Unit |
| Lamp Model # (Green Creative): | 11BR30G4DIM/927/GU24 |
| Lamp Watts | 1 x 11 |
| Lumens (lm): | 750 |
| Lumens Per Watt (LPW): | 69 |
| Mfg in ISO 9001 Certified Facility: | Yes |
| Motor Type (AC/DC): | N/A |
| Mounting Options: | Ceiling Mount (UL). Tub/Shower (UL) |
| Power Rating (V/Hz): | 120/60 |
| Product Family Name: | Recessed Inlet |
| Rated Life (hours): | 25, 000 |
| Trim Outer Diameter (Inches): | 7-1/4″ Round |
| Type of Lamp Socket: | GU24 |
| UL tub/Shower Enclosure: | Yes |
Panasonic FV-VS15VK1 WhisperGreen Select Multi-Speed Module
SKU:
PANFVVS15VK1
| Advanced Features: | Multi-Speed. Delay Timer. |
|---|---|
| Construction Type: | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Industry: | Residential. Light Commercial. |
| Product Family Name: | WhisperGreen Select Fan. WhisperGreen Select Fan/Light. |
| Available Options | Multi-Speed Module – FVVS15VK1 |

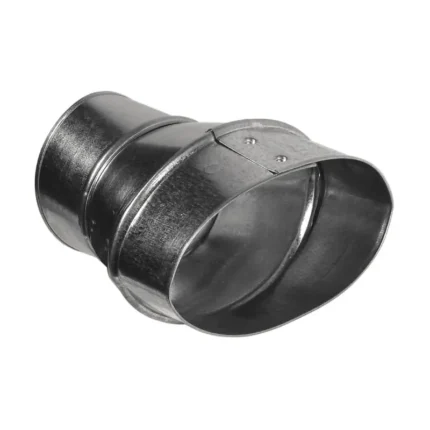

Panasonic FV-VS43R 4″ to 3″ Duct Adaptor
SKU:
PANFVVS43R
| Advanced Features: | Single Speed |
|---|---|
| CFM: | 80-110. 120-150 |
| Construction Type: | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Ventilation Design Approach: | Continuous Ventilation. Spot Ventilation |
| Duct Diameter: | 3″. 4″ |
| Fan Type: | Fan only. Fan/Light CFL |
| Industry: | Residential. Light Commercial |
| Installation: | Wall Mount |
| Mounting Options: | Ceiling Mount. Wall Mount(UL). Tub/Shower(UL) |
| Product Family Name: | WhisperValue DC. WhisperValue Lite |
