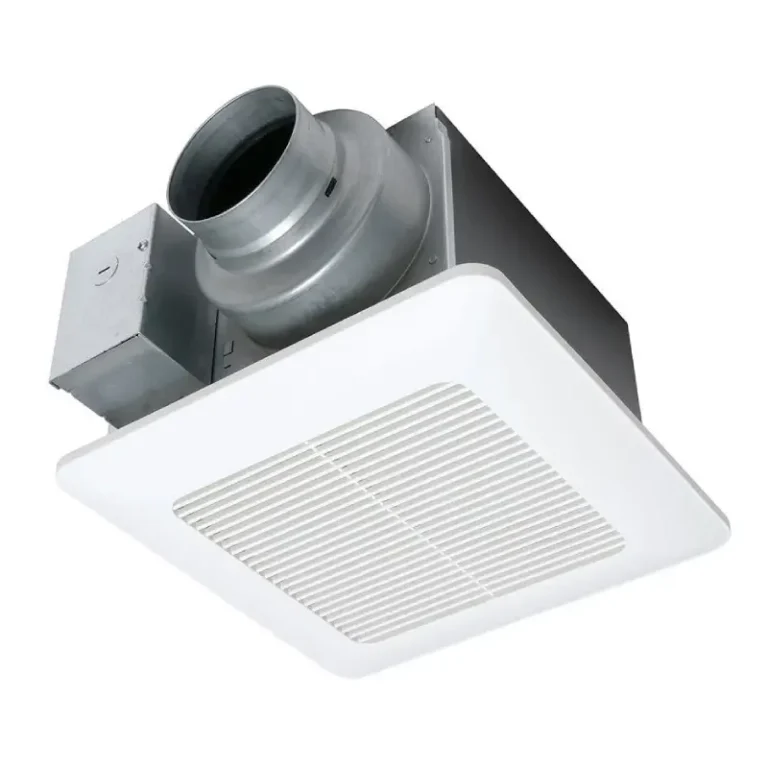

Panasonic FV-0511VQ1 WhisperCeiling DC Ventilation Fan
| Model: |
FV-0511VQ1 |
|---|---|
| Advanced Features: |
Single Speed |
| Air Volume (CFM): |
110 ,111 ,80 ,83 ,50 ,53 |
| Blower Wheel Type: |
Sirocco |
| California Title 24 Compliant: |
Yes |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.18 ,0.07 ,0.13 |
| Duct Diameter: |
4" or 6" |
| Energy Efficiency (CFM/Watt): |
10.6 ,6.9 ,13.6 ,7.7 ,12.5 ,7.4 |
| ENERGY STAR® Certified: |
Yes |
| Grille Size (in sq.): |
13 |
| Gross Weight (lbs): |
11 |
| MAX. Current (Amps): |
0.27 |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Motor Type (AC/DC): |
DC |
| Mounting Opening (in sq.): |
2010-01-02 |
| Noise (Sones): |
<0.3 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.6 ,16.4 ,5.9 ,10.8 ,4.0 ,7.2 |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperCeiling DC |
| Speed (RPM): |
1342 1480 ,1016 ,1268 ,867 ,1185 ,768 ,1097 |
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Thermal Fuse Protection: |
Yes |
| Type of Motor Bearing: |
Ball |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| Available Options |
Fan-only – FV0511VQ1 |

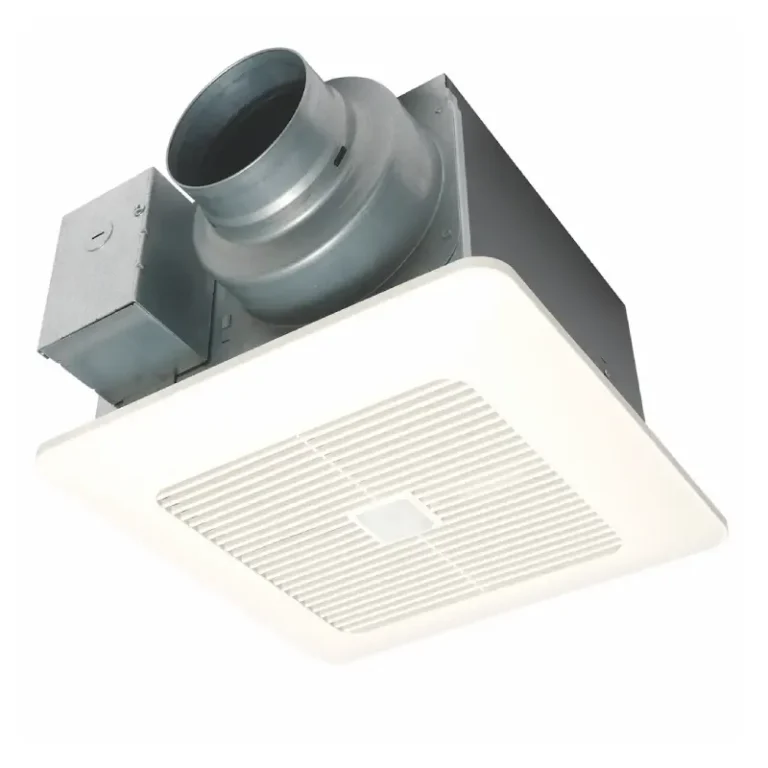

Panasonic FV-0511VQC1 WhisperSense DC Ventilation Fan
| Model: |
FV-0511VQC1 |
|---|---|
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Air Volume (CFM): |
110 ,111 ,80 ,83 ,50 ,53 |
| Noise (Sones): |
<0.3 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.6 ,16.4 ,5.9 ,10.8 ,4.0 ,7.2 |
| Energy Efficiency (CFM/Watt): |
10.6 ,6.9 ,13.6 ,7.7 ,12.5 ,7.4 |
| Speed (RPM): |
1342 1480 ,957 ,1239 ,821 ,1172 ,756 ,1093 |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.18 ,0.07 ,0.13 |
| Power Rating (V/Hz): |
0.27 |
| Motor Type (AC/DC): |
DC |
| Duct Diameter: |
4" or 6" |
| Mounting Opening (in sq.): |
2010-01-02 |
| Grille Size (in sq.): |
13 |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protection: |
Yes |
| Blower Wheel Type: |
Sirocco |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| California Title 24 Compliant: |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Gross Weight (lbs): |
11.2 |
| ENERGY STAR Qualified: |
Yes |
| Available Options |
Fan-only – FV0511VQC1 |

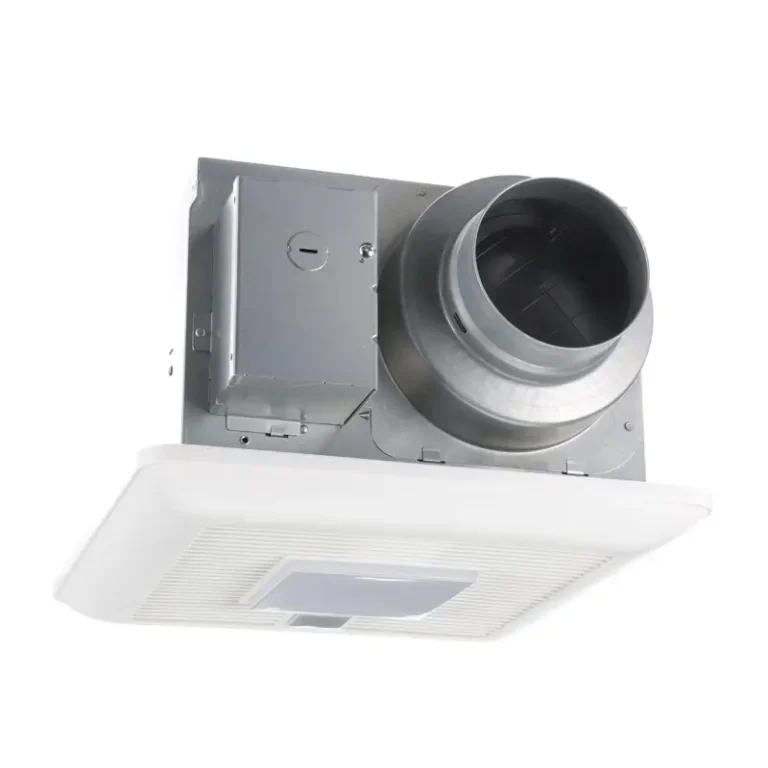

Panasonic FV-0511VQCL1 WhisperSense LED & Humidity Exhaust Fan
| Model: |
FV-0511VQCL1 |
|---|---|
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Air Volume (CFM): |
110 ,110 ,80 ,83 ,50 ,50 |
| Noise (Sones): |
0.4 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.9 ,16.1 ,6.0 ,11.0 ,3.9 ,7.1 |
| Energy Efficiency (CFM/Watt): |
10.3 ,7.0 ,13.7 ,7.7 ,14.1 ,7.8 |
| Speed (RPM): |
1342 1480 ,1016 ,1268 ,867 ,1185 ,768 ,1097 |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.19 ,0.07 ,0.12 |
| Power Rating (V/Hz): |
120/60 |
| Motor Type (AC/DC): |
DC |
| Duct Diameter: |
4" or 6" |
| Mounting Opening (in sq.): |
2010-01-02 |
| Grille Size (in sq.): |
13 |
| MAX. Current (Amps): |
0.3 |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protection: |
Yes |
| Blower Wheel Type: |
Sirocco |
| Lamp Watts: |
10 |
| Lumens (lm): |
700 |
| Night Light: |
0.2 |
| Lumens Per Watt (LPW): |
70 |
| Color Temperature (Kelvin): |
3 ,000 |
| Color Rendering Index: |
90 |
| Rated Life (hours): |
50 ,000 |
| Type of Lamp Socket: |
LED Chip |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| California Title 24 Compliant: |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Gross Weight (lbs): |
11.9 |
| ENERGY STAR Qualified: |
Yes |
| Available Options |
Fan & Light – FV0511VQCL1 |

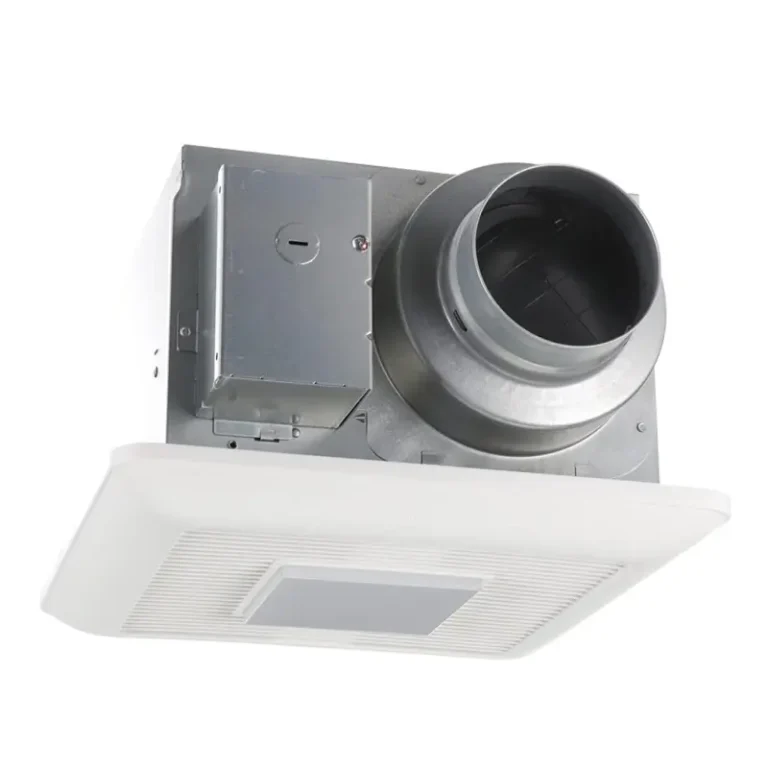

Panasonic FV-0511VQL1 WhisperCeiling LED Exhaust Fan (50-80-110 CFM)
| Model: |
FV-0511VQL1 |
|---|---|
| Advanced Features: |
Single Speed |
| Air Volume (CFM): |
110 ,110 ,80 ,83 ,50 ,50 |
| Blower Wheel Type: |
Sirocco |
| California Title 24 Compliant: |
Yes |
| Color Rendering Index: |
90 |
| Color Temperature (Kelvin): |
3 ,000 |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.19 ,0.07 ,0.12 |
| Duct Diameter: |
4" or 6" |
| Energy Efficiency (CFM/Watt): |
10.3 ,7.0 ,13.7 ,7.7 ,14.1 ,7.8 |
| ENERGY STAR® Certified: |
Yes |
| Grille Size (in sq.): |
13" |
| Gross Weight (lbs): |
11.7 |
| Lamp Watts: |
10 |
| Lumens (lm): |
700 |
| Lumens Per Watt (LPW): |
70 |
| MAX. Current (Amps): |
0.3 |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Motor Type (AC/DC): |
DC |
| Mounting Opening (in sq.): |
10-1/2" |
| Night Light: |
0.2 |
| Noise (Sones): |
0.4 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.9 ,16.1 ,6.0 ,11.0 ,3.9 ,7.1 |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperCeiling DC |
| Rated Life (hours): |
50 ,000 |
| Speed (RPM): |
1016 ,1268 ,867 ,1185 ,768 ,1097 |
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Thermal Fuse Protection: |
Yes |
| Type of Lamp Socket: |
LED Chip |
| Type of Motor Bearing: |
Ball |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| Available Options |
Fan & Light – FV0511VQL1 |

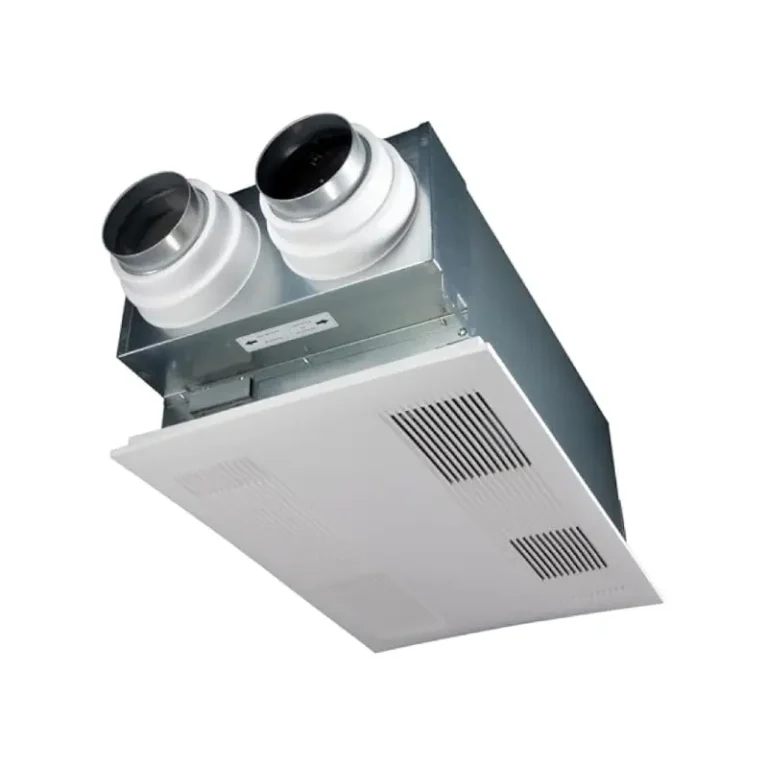

Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM
| Stock Code: |
FV06VE1 |
|---|---|
| Brand: |
Panasonic |
| Family: |
WhisperComfort® ERV |
| UPC: |
8.8517E+11 |
| Voltage (V): |
120V |
| Duct Size: |
4 in. |
| Housing Depth (in.): |
09-Aug |
| Housing Dimensions: |
23-5/8" x 15-3/4" x 8-7/8" (600 x 400 x 225 mm) |
| UL Listed: |
cULus |
| Warranty: |
6-year warranty on DC Motor ,3-years on all parts |
| Cross Refefence: |
FV-06VE1 |

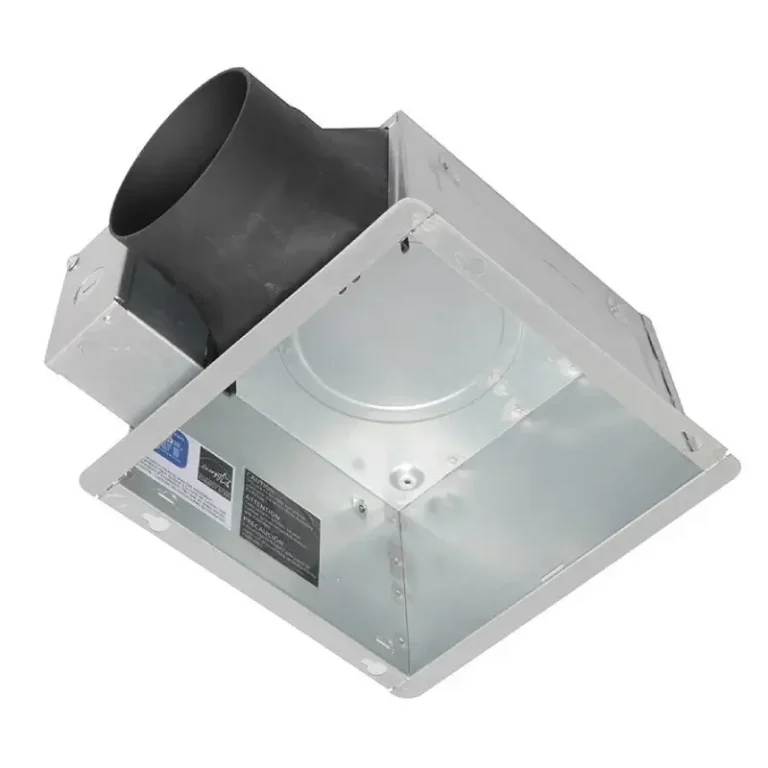

Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack)
| Airflow (CFM): |
70 |
|---|---|
| Duct Size (in) |
4" |
| Energy Efficiency (CFM/W): |
70 @ 0.1" SP = 3.5 CFM/W, 90 @ 0.1" SP = 3.8 CFM/W |
| Energy Star Qualified: |
Yes |
| Grill Dimensions (in): |
9-1/2" |
| Gross Weight (lbs): |
12.6 |
| Height (in): |
20-1/2" |
| Length (in): |
8-2/3" |
| Motor Type: |
AC |
| Mounting Opening (in.sq): |
7-7/8" |
| Power Consumption (W): |
70 @ 0.1" SP = 20.0W, 90 @ 0.1" SP = 24.0W, |
| Power Rating (V/Hz): |
120/60 |
| Sones: |
0.4 |
| UL Tub/Shower Enclosure: |
Yes |
| Volts (V): |
120 |
| Width (in): |
10-1/4" |
| UPC: |
8.8517E+11 |

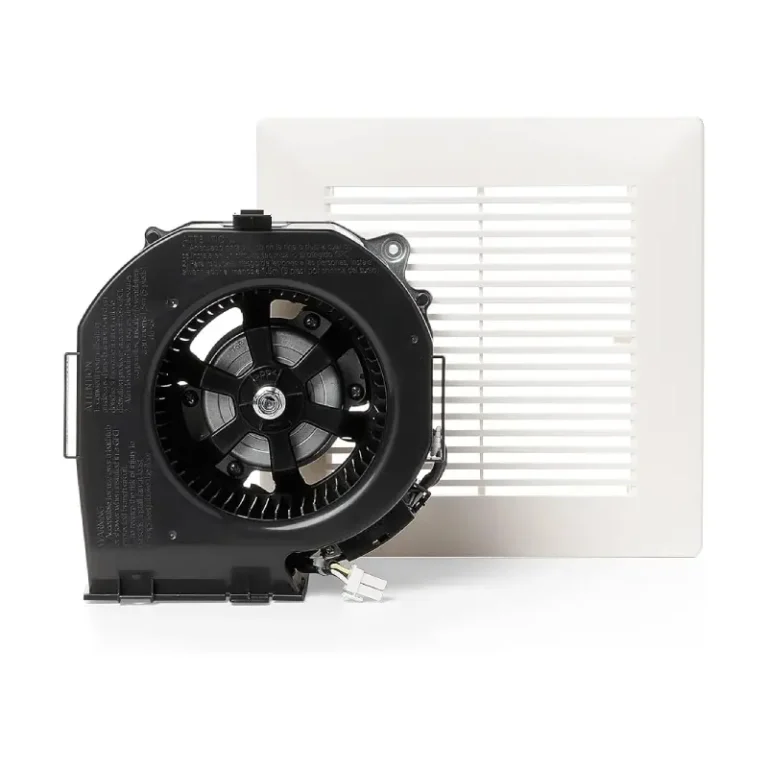

Panasonic FV-07VBB1 Motor/Grille Assembly EcoVent (4 Pack)
| Airflow (CFM): |
70 |
|---|---|
| Duct Size (in) |
4" |
| Energy Efficiency (CFM/W): |
70 @ 0.1" SP = 3.5 CFM/W, 90 @ 0.1" SP = 3.8 CFM/W |
| Energy Star Qualified: |
Yes |
| Grill Dimensions (in): |
9-1/2" |
| Gross Weight (lbs): |
12.6 |
| Height (in): |
20-1/2" |
| Length (in): |
8-2/3" |
| Motor Type: |
AC |
| Mounting Opening (in.sq): |
7-7/8" |
| Power Consumption (W): |
70 @ 0.1" SP = 20.0W, 90 @ 0.1" SP = 24.0W, |
| Power Rating (V/Hz): |
120/60 |
| Sones: |
0.4 |
| UL Tub/Shower Enclosure: |
Yes |
| Volts (V): |
120 |
| Width (in): |
10-1/4" |
| UPC: |
8.8517E+11 |

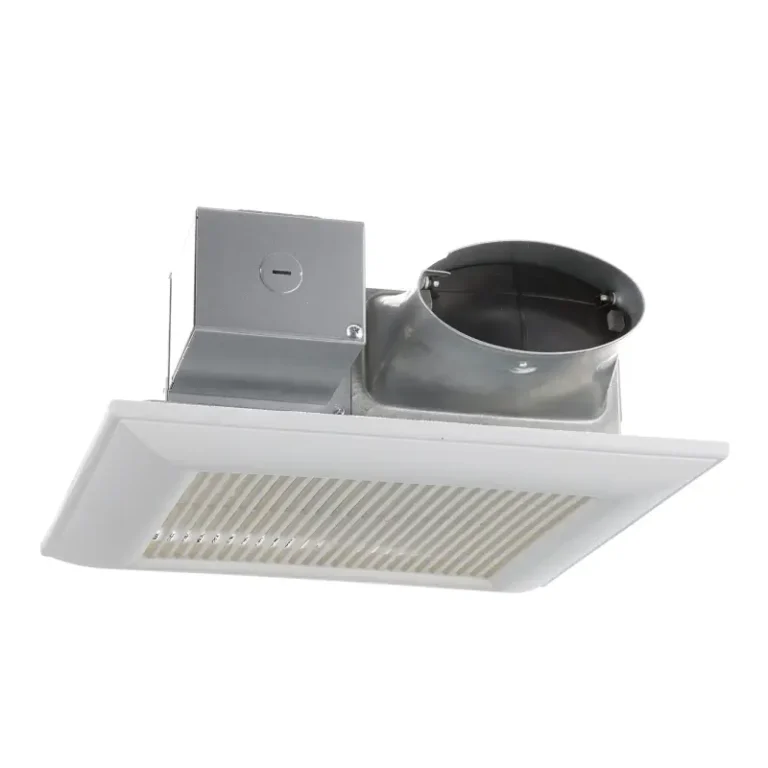

Panasonic FV-0810VSS1 WhisperValue DC
| Model: |
FV-0810VSS1 |
|---|---|
| Air Volume Exhaust (CFM): |
30 ,31 ,40 ,41 ,50 ,52 ,60 ,64 ,70 ,72 ,80 ,81 ,100 ,101 @ 0.1" SP and @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
6.89 x 14.25 x 16.73 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
Yes |
| Construction Type: |
Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
| Current (Amps): |
Values Provided |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
Values Provided |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Motor Type (AC/DC): |
ECM |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Noise (Sones): |
Noise Levels Provided |
| Power Consumption (Watts): |
Values Provided |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
9 |
| Available Options |
Fan-only – FV0810VSS1 |

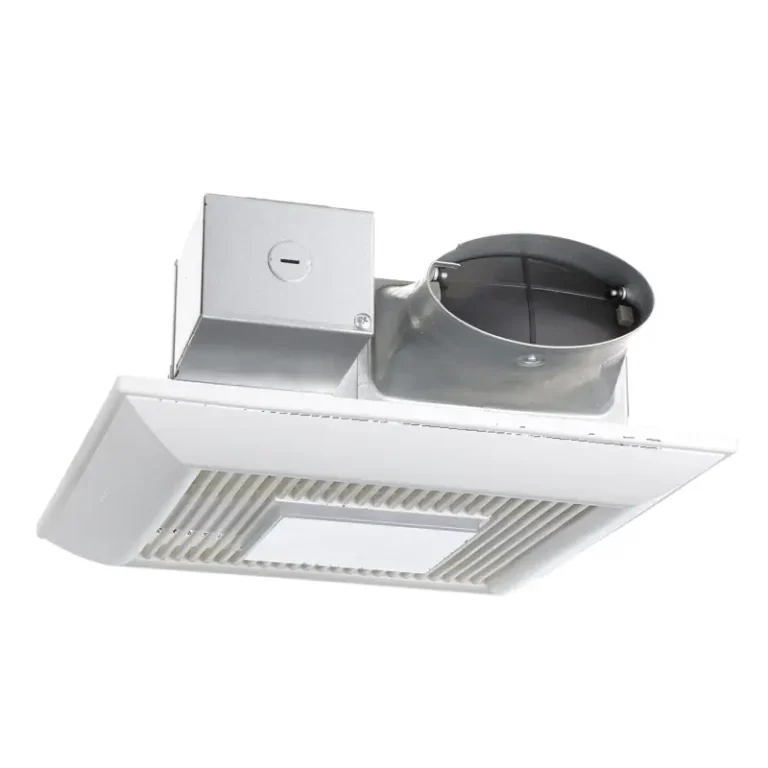

Panasonic FV-0810VSSL1 WhisperValue Exhaust Fan
| Model: |
FV-0810VSSL1 |
|---|---|
| Air Volume Exhaust (CFM): |
30 ,31 ,40 ,41 ,50 ,52 ,60 ,64 ,70 ,72 ,80 ,81 ,100 ,101 @ 0.1" SP and @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
9.06 x 14.17 x 16.93 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
Yes |
| Color Rendering Index: |
90 |
| Color Temperature (Kelvin): |
3 ,000 |
| Construction Type: |
Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
| Current (Amps): |
Values Provided |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
Values Provided |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Lamp Watts: |
10 |
| Lumens (lm): |
700 |
| Lumens Per Watt (LPW): |
70 |
| Motor Type (AC/DC): |
ECM |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Night Light: |
0.2 |
| Noise (Sones): |
Noise Levels Provided |
| Power Consumption (Watts): |
Values Provided |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| Rated Life (hours): |
50 ,000 |
| Type of Lamp Socket: |
LED chip |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
9.9 |
| Available Options |
Fan & Light – FV0810VSSL1 |

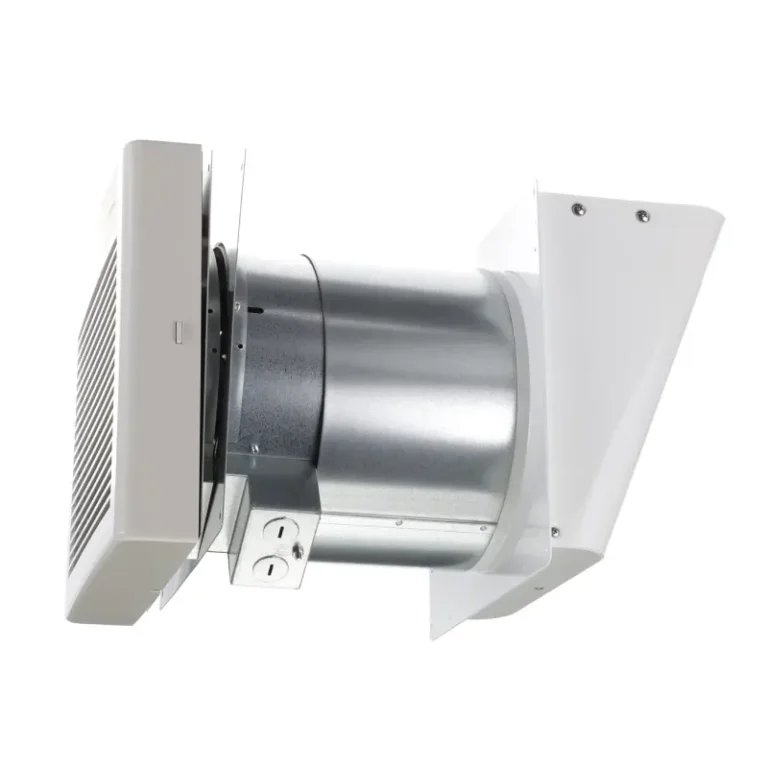

Panasonic FV-08WQ1 WhisperWall Exhaust Fan
| Airflow (CFM): |
70 |
|---|---|
| Amperage: |
0.2 |
| Duct Size (in): |
8" Round |
| Energy Star Qualified: |
Yes |
| Fan Type: |
Through-Wall |
| Grille Dimensions (in): |
10-1/4" x 10-1/4" |
| Grille Finish: |
White |
| Housing Height (in): |
4-17/32" |
| Housing Length (in): |
9-7/16" |
| Housing Width (in): |
9-7/16" |
| Hz: |
60 |
| RPM: |
660 |
| Sones: |
1.1 |
| Volts (V) |
120 |
| Watts (W): |
18 |
| UPC: |
092281137674 |

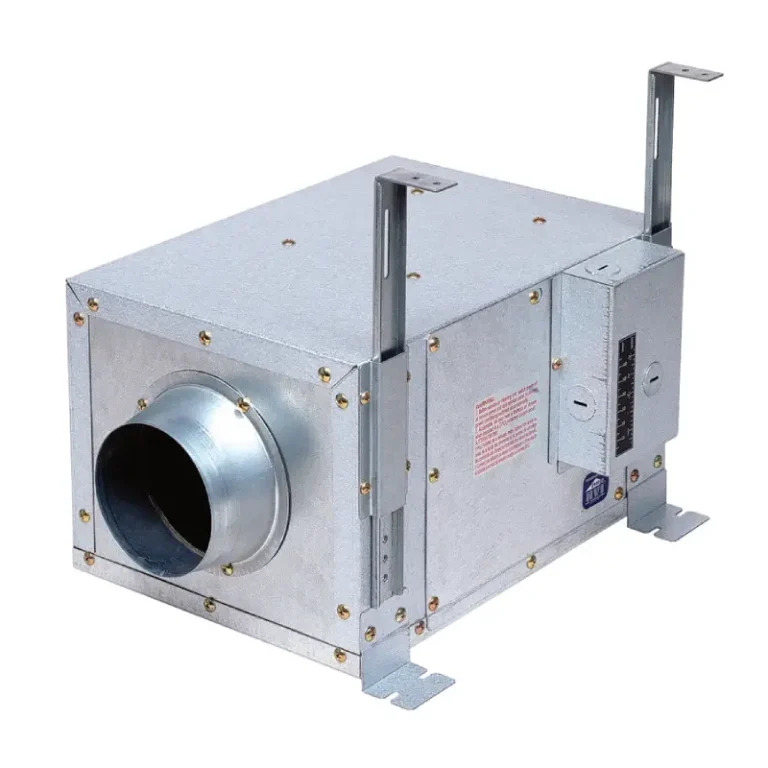

Panasonic FV-10NLF1E WhisperLine 120 CFM In-Line Bathroom Fan
| SKU: |
FV-10NLF1E |
|---|---|
| Product family name: |
WhisperLine™ |
| Air volume exhaust (CFM): |
120 CFM @ 0.2" SP ,105 CFM @ 0.3" SP ,82 CFM @ 0.4" SP |
| Noise (sones): |
— |
| Energy efficiency (CFM/Watt): |
4.4 CFM/W @0.2" SP ,4.4 CFM/W @0.3" SP ,3.9 CFM/W @0.4" SP |
| Motor type (AC/DC): |
AC |
| Duct diameter: |
4" (102 mm) |
| Lighted: |
No |
| Motion sensor: |
No |
| Moisture sensor/condensation: |
No |
| Multi-speed with time delay: |
No |
| Night light: |
No |
| Installation: |
Ceiling |
| Radiation damper available: |
No |
| Housing dimensions (L x W x H): |
— |
| Grille size - Square inches (mm): |
— |
| ENERGY STAR®, ASHRAE 62.2, LEED: |
Yes |
| cUL listed for tub/shower enclosure: |
No |
| Available CFM Options |
120 CFM – FV10NLF1E |

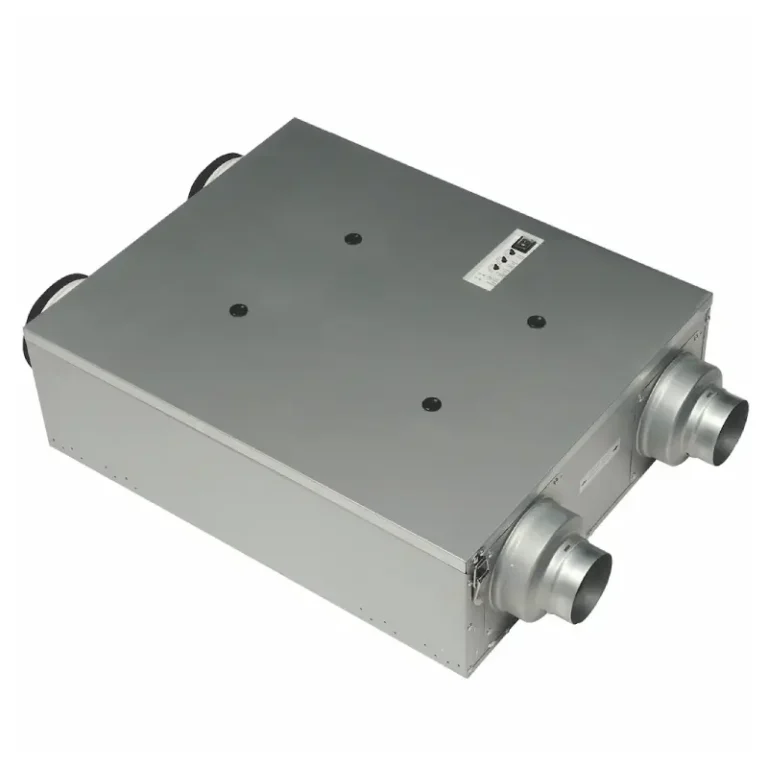

Panasonic FV-10VEC2 Intelli-Balance Ventilator
| Model: |
FV-10VEC2 |
|---|---|
| Additional info: |
* Meets strict energy efficiency guidelines set by Natural Resources Canada and is ENERGY STAR certified for the Canadian market only. |
| Air Volume Exhaust (CFM): |
96 @ 0.1" SP ,95 @ 0.4" SP |
| Air Volume Supply (CFM): |
98 @ 0.1" SP ,96 @ 0.4" SP |
| Master Carton Dimensions (HxWxD): |
28.46" X 12.09" x 39.21" |
| Duct Diameter: |
(4) 4" or 6" |
| Energy Recovery Ventilator (ERV): |
Energy Recovery Ventilator (ERV) |
| ENERGY STAR® Certified: |
Yes* |
| Installation: |
Ceiling Mount and Wall Mount |
| Motor Type (AC/DC): |
DC (2) DC Motors |
| Power Consumption (Watts): |
64 @ 0.1" SP ,84@ 0.4" SP |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
Intelli-Balance 100 |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
No |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
57.3 |
| Available Options |
Any Climate – FV10VEC2 |
