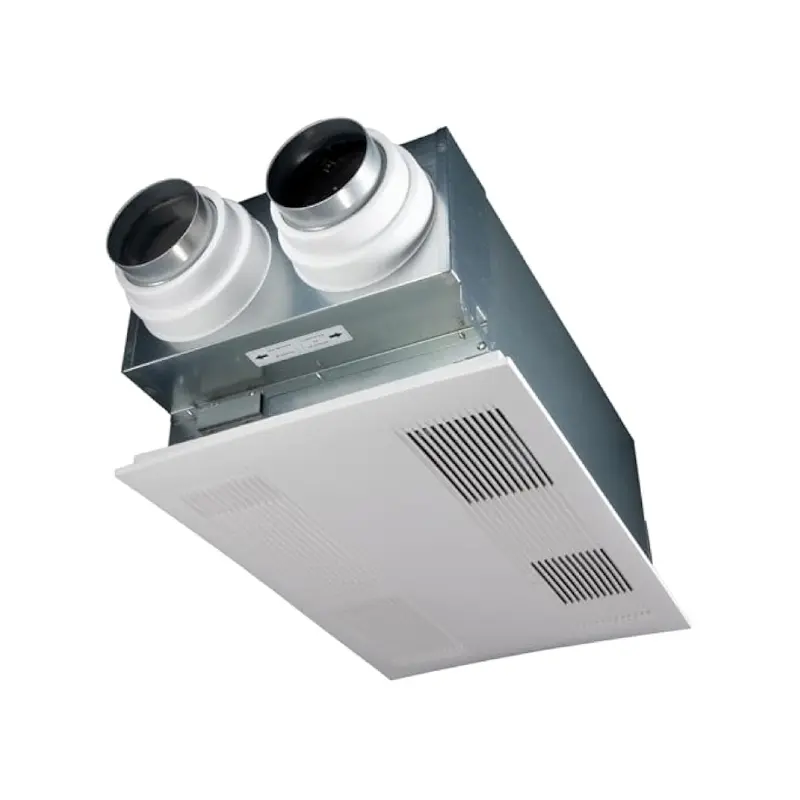

Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM
$536.080
4 in stock (can be backordered)
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM Energy Recovery Ventilator (ERV) is a stand-alone system that provides balanced ventilation. WhisperComfort 60 UL Listed ceiling or wall mount Energy Recovery Ventilator provides a tempered fresh air supply and balanced exhaust air flow to maintain neutral pressure throughout the home.
KEY FEATURES
- Product is HVI certified for energy recovery and sound
- Static pressure access ports make it easy for raters to verify airflow for ASHRAE 62.2 compliance
- Suitable for new/remodel, single-family/multi-family, energy efficient projects
- Multi-speed selector (20 to 50 CFM) provides customizable airflow
- Occupant controllable Boost function moves fan speed to 60 CFM when activated
- High efficiency capillary core recovers heat and helps maintain desired moisture levels inside
| Stock Code: |
FV06VE1 |
|---|---|
| Brand: |
Panasonic |
| Family: |
WhisperComfort® ERV |
| UPC: |
8.8517E+11 |
| Voltage (V): |
120V |
| Duct Size: |
4 in. |
| Housing Depth (in.): |
09-Aug |
| Housing Dimensions: |
23-5/8" x 15-3/4" x 8-7/8" (600 x 400 x 225 mm) |
| UL Listed: |
cULus |
| Warranty: |
6-year warranty on DC Motor ,3-years on all parts |
| Cross Refefence: |
FV-06VE1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Installation guide
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Sell Sheet
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Service Manual
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Specification Submittal Data
