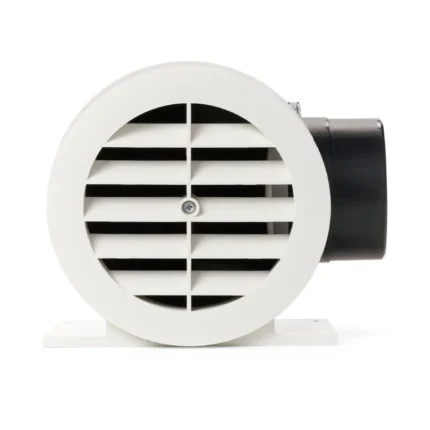

Panasonic EZSV14 EZ Soffit Vent Termination System
| Model: |
EZSV14 |
|---|---|
| ventfan_backdrap_damper: |
Yes |
| Master Carton Dimensions (HxWxD): |
6.00 X 8.00 X 9.38 |
| Duct Diameter: |
4" |
| ventfan_duct_mount_area: |
Side |
| ventfan_grille_rotation: |
360° |
| Grille Size (in sq.): |
7.56 |
| ventfan_hvi_cert: |
Yes |
| ventfan_iso_cert: |
Yes |
| ventfan_pre_soffit_install: |
Yes |
| ventfan_rotation: |
180° |
| ventfan_usa_made: |
Yes |
| Master Carton Gross Weight (lbs.): |
1.3 |
Panasonic FV-0510VS1 WhisperValue DC Exhaust Fan 50/80/100 CFM
| Model: |
FV-0510VS1 |
|---|---|
| Air Volume Exhaust (CFM): |
50 @ 0.1" SP ,53 @ 0.25" SP ,80 @ 0.1" SP ,81 @ 0.25" SP ,100 @ 0.1" SP ,100 @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
6.89 x 14.25 x 16.73 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Construction Type: |
Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. |
| Current (Amps): |
50 CFM= .09A ,80 CFM= .13A ,100 CFM=.20A |
| Ventilation Design Approach: |
Ventilation Design Approach |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
50 CFM= 12.8 CFM/W ,80 CFM=11.4 CFM/W ,100 CFM = 9.2 CFM/W |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Motor Type (AC/DC): |
DC |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL) |
| Noise (Sones): |
50 @ 0.1" SP = < 0.3 ,etc. |
| Power Consumption (Watts): |
50 CFM= 4.4W ,80 CFM= 7.2W ,100 CFM=11.1W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
8.82 |
| Available Options |
Fan-only – FV0510VS1 |

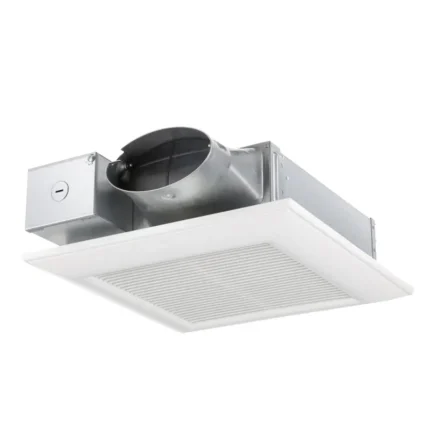

Panasonic FV-0510VSC1 WhisperValue Condensation Sensor (50-80-100 CFM)
| Model: |
FV-0510VSC1 |
|---|---|
| Air Volume Exhaust (CFM): |
50 @ 0.1" SP ,52 @ 0.25" SP ,80 @ 0.1" SP ,81 @ 0.25" SP ,100 @ 0.1" SP ,101 @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
6.89 x 14.25 x 16.73 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Construction Type: |
Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. |
| Current (Amps): |
50 CFM= .08A ,80 CFM= .13A ,100 CFM= .18A |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
50 CFM= 12.1 CFM/W ,80 CFM=10.0 CFM/W ,100 CFM = 8.2 CFM/W |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Motor Type (AC/DC): |
ECM |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Noise (Sones): |
50 @ 0.1" SP = < 0.3 ,52 @ 0.25" SP = 0.5 ,80 @ 0.1" SP = less than 0.4 ,81 @ 0.25" SP = 0.8 ,100 @ 0.1" SP = 0.9 ,101 @ 0.25" SP = 1.3 |
| Power Consumption (Watts): |
50 CFM= 4.5W ,80 CFM= 8.5W ,100 CFM=12.4W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
9 |
| Available Options |
Fan-only – FV0510VSC1 |
Panasonic FV-0510VSCL1 WhisperValue Exhaust Fan Condensation Sensor
| Model: |
FV-0510VSL1 |
|---|---|
| Air Volume Exhaust (CFM): |
50 @ 0.1" SP ,52 @ 0.25" SP ,80 @ 0.1" SP ,81 @ 0.25" SP ,100 @ 0.1" SP ,101 @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
9.06 x 14.17 x 16.93 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Color Rendering Index: |
90 |
| Color Temperature (Kelvin): |
3 ,000 |
| Construction Type: |
Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
| Current (Amps): |
50 CFM= .08A ,80 CFM= .13A ,100 CFM=.18A |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
50 CFM= 12.1 CFM/W ,80 CFM=10.0 CFM/W ,100 CFM = 8.2 CFM/W |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Lamp Watts: |
10 |
| Lumens (lm): |
700 |
| Lumens Per Watt (LPW): |
70 |
| Motor Type (AC/DC): |
ECM |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Night Light: |
0.2 |
| Noise (Sones): |
50 @ 0.1" SP = < 0.3 ,52 @ 0.25" SP = 0.5 ,80 @ 0.1" SP = 0.4 ,81 @ 0.25" SP = 0.8 ,100 @ 0.1" SP = 0.9 ,101 @ 0.25" SP = 1.3 |
| Power Consumption (Watts): |
50 CFM= 4.5W ,80 CFM= 8.5W ,100 CFM=12.4W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| Rated Life (hours): |
50 ,000 |
| Type of Lamp Socket: |
LED chip |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
9.92 |
| Available Options |
Fan & Light – FV0510VSCL1 |

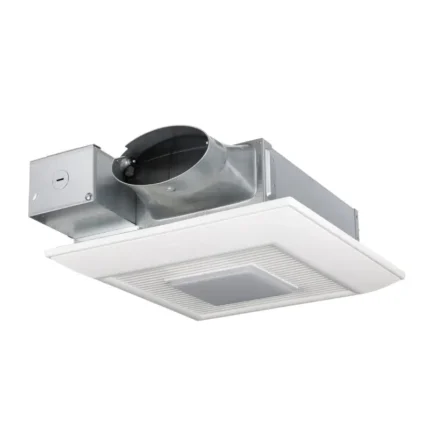

Panasonic FV-0510VSL1 WhisperValue Ventilation Fan
| Model: |
FV-0510VSL1 |
|---|---|
| Air Volume Exhaust (CFM): |
50 @ 0.1" SP ,52 @ 0.25" SP ,80 @ 0.1" SP ,81 @ 0.25" SP ,100 @ 0.1" SP ,101 @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
9.06 x 14.17 x 16.93 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Color Rendering Index: |
90 |
| Color Temperature (Kelvin): |
3 ,000 |
| Construction Type: |
Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
| Current (Amps): |
50 CFM= .08A ,80 CFM= .13A ,100 CFM=.18A |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
50 CFM= 12.1 CFM/W ,80 CFM=10.0 CFM/W ,100 CFM = 8.2 CFM/W |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Lamp Watts: |
10 |
| Lumens (lm): |
700 |
| Lumens Per Watt (LPW): |
70 |
| Motor Type (AC/DC): |
ECM |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Night Light: |
0.2 |
| Noise (Sones): |
Noise Levels Provided |
| Power Consumption (Watts): |
50 CFM= 4.5W ,80 CFM= 8.5W ,100 CFM=12.4W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| Rated Life (hours): |
50 ,000 |
| Type of Lamp Socket: |
LED chip |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
9.92 |
| Available Options |
Fan & Light – FV0510VSL1 |

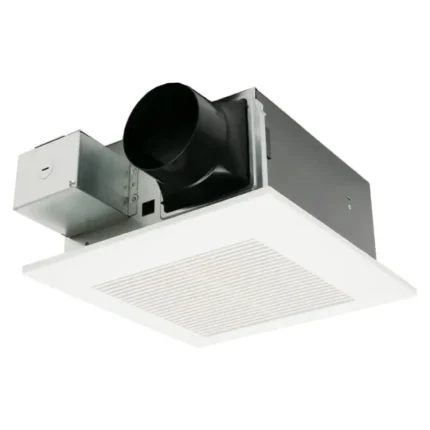

Panasonic FV-0511VF1 WhisperFit DC Fan
| Airflow (CFM): |
80/110 |
|---|---|
| Amperage: |
0.18 (80 CFM), 0.23 (110 CFM) |
| Collar Material: |
Metal |
| Duct Size (in): |
3" & 4" Round |
| Energy Star Qualified: |
Yes |
| Grille Dimensions (in): |
13" x 13" |
| Grille Finish: |
White |
| Heater: |
No |
| Housing Height (in): |
5-5/8" |
| Housing Length (in): |
10-1/4" |
| Housing Width (in): |
10-1/4" |
| Hz: |
60 |
| Light: |
No |
| RPM: |
848 (80 CFM), 961 (110 CFM) |
| Sones: |
0.3 (80 CFM), 0.8 (110 CFM) |
| Speed: |
Multi-Speed |
| Volts (V): |
120 |
| Watts (W): |
21.1 (80 CFM), 26.5 (110 CFM) |
| UPC |
8.8517E+11 |
| Available Options |
Fan-only – FV0511VF1 |

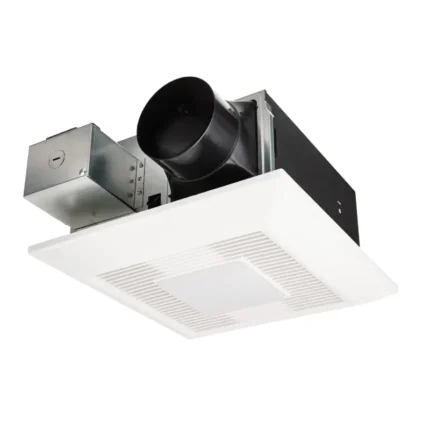

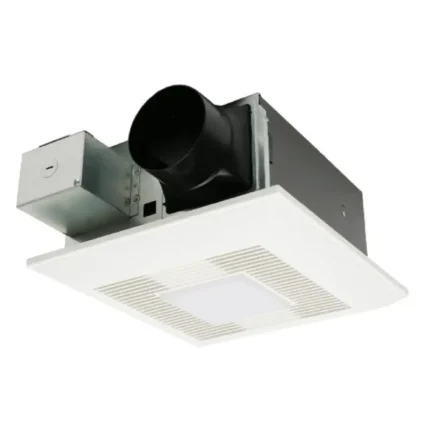

Panasonic FV-0511VFL1 WhisperFit Ventilation Fan
| Airflow (CFM): |
110 |
|---|---|
| Amperage: |
0.28 |
| Collar Material: |
Metal |
| Current (amps): |
0.28 |
| Dimmable: |
Yes |
| Duct Size (in): |
4" |
| Energy Efficiency (CFM/W): |
Yes |
| Energy Star Qualified: |
Yes |
| Grill Dimensions (in): |
13" |
| Heater: |
No |
| Hz: |
60 |
| Light: |
Yes |
| RPM: |
1400 |
| Sones: |
1.3 |
| Speed: |
Multi-Speed |
| Volts (V): |
120 |
| Watts (W): |
16.4 |
| UPC: |
8.8517E+11 |
| Available Options |
Fan & Light – 0511VFL1 |

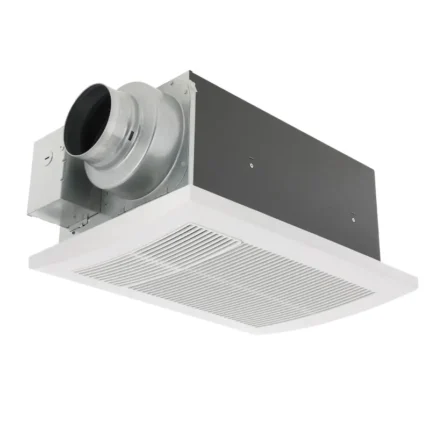

Panasonic FV-0511VH1 WhisperWarm DC Ceiling Fan
| Model: |
FV-0511VH1 |
|---|---|
| Fan Type: |
Fan/Heater |
| Advanced Features: |
Pick-A-Flowâ„¢ Airflow Selector ,ECM motor with SmartFlow technology |
| Air Volume Supply (CFM): |
@0.1= 110 ,80 ,50 @0.25= 112 ,82 ,51 @0.375= 110 ,82 ,53 |
| Noise (Sones): |
@0.1"SP (50 ,80 ,110 CFM) = 0.7 ,<0.3 ,<0.3 @0.25"SP(50 ,80 ,110 CFM) = 1.5 ,1.0 ,08 |
| Power Consumption (Watts): |
@ 0.1"SP (50 ,80 ,110 CFM) = 12 ,7.7 ,4.7 @ 0.25"SP = 19 ,13.3 ,8.6 @0.375"SP 26.0 ,18.2 ,12.3 |
| Energy Efficiency (CFM/Watt): |
@ 0.1"SP (50 ,80 ,110 CFM) = 9.2 ,10.4 ,10.6 @ 0.25"SP = 5.9 ,6.2 ,5.9 @0.375"SP 4 ,4.5 ,4.3 |
| Speed (RPM): |
@ 0.1"SP (50 ,80 ,110 CFM) = 861 ,736 ,638 @ 0.25"SP = 1090 ,1008 ,930 @0.375"SP 1249 ,1173 ,1112 |
| Current (Amps): |
@ 0.1"SP (50 ,80 ,110 CFM) = 0.24 ,0.16 ,0.10 @ 0.25"SP = 0.37 ,0.26 ,0.18 @0.375"SP 0.49 ,0.35 ,0.25 |
| MAX. Current (Amps): |
120/60 |
| Motor Type (AC/DC): |
ECM (DC) |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protector: |
Yes |
| Blower Wheel Type: |
Sirocco |
| ENERGY STAR® Certified: |
No |
| Duct Diameter: |
4" or 6" (inches) |
| Mounting Opening (in sq.): |
10-1/4" x 16" |
| Grille Size (in sq.): |
13-1/4" x 18-1/4" |
| Gross Weight (lbs): |
16.3 |
| UL tub/Shower Enclosure: |
No |
| Wall Installation: |
No |
| California Title 24 Complaint (LED): |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Available Options |
Fan-only – FV0511VH1 |

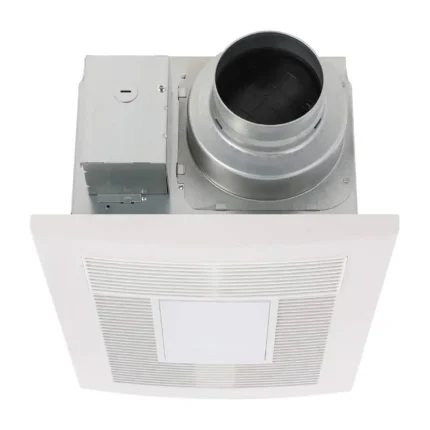

Panasonic FV-0511VHL1 WhisperWarm Fan
| Model: |
FV-0511VHL1 |
|---|---|
| Fan Type: |
Fan/Heater/Light – LED |
| Advanced Features: |
Pick-A-Flowâ„¢ Airflow Selector ,ECM motor with SmartFlow technology ,LED Light |
| Air Volume Supply (CFM): |
@0.1= 110 ,80 ,50 @0.25= 111 ,81 ,52 @0.375= 99 ,82 ,53 |
| Noise (Sones): |
@0.1"SP (50 ,80 ,110 CFM) = 0.7 ,<0.3 ,<0.3 @0.25"SP(50 ,80 ,110 CFM) = 1.5 ,1.0 ,0.7 |
| Power Consumption (Watts): |
@ 0.1"SP (50 ,80 ,110 CFM) = 12.4 ,7.4 ,4.7 @ 0.25"SP = 19.8 ,13.1 ,8.9 @0.375"SP 26.0 ,18.6 ,12.7 |
| Energy Efficiency (CFM/Watt): |
@ 0.1"SP (50 ,80 ,110 CFM) = 8.9 ,10.8 ,10.6 @ 0.25"SP = 5.6 ,6.2 ,5.9 @0.375"SP 3.8 ,4.4 ,4.2 |
| Speed (RPM): |
@ 0.1"SP (50 ,80 ,110 CFM) = 885 ,745 ,654 @ 0.25"SP = 1115 ,1022 ,943 @0.375"SP 1265 ,1194 ,1130 |
| Current (Amps): |
@ 0.1"SP (50 ,80 ,110 CFM) = 0.25 ,0.15 ,0.10 @ 0.25"SP = 0.39 ,0.27 ,0.18 @0.375"SP 0.48 ,0.37 ,0.26 |
| MAX. Current (Amps): |
0.5 |
| Power Rating (V/Hz): |
120/60 |
| Motor Type (AC/DC): |
ECM (DC) |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protector: |
Yes |
| Blower Wheel Type: |
Sirocco |
| ENERGY STAR® Certified: |
No |
| Duct Diameter: |
4" or 6" inches |
| Mounting Opening (in sq.): |
10-1/4" x 16" |
| Grille Size (in sq.): |
13-1/4" x 18-1/4" |
| Lamp Watts: |
10 |
| Lumens (lm): |
750 |
| Lumens Per Watt (LPW): |
≧70 |
| Color Rendering Index: |
≧90 |
| Color Temperature (Kelvin): |
3000K |
| Rated Life (hours): |
50000 |
| Lamp Model #: |
N/A |
| Type of Lamp Socket: |
LED chip |
| Night Light: |
0.2 Watts |
| Gross Weight (lbs): |
17.4 |
| UL tub/Shower Enclosure: |
No |
| Wall Installation: |
No |
| California Title 24 Complaint (LED): |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Available Options |
Fan & Light – FV0511VHL1 |
