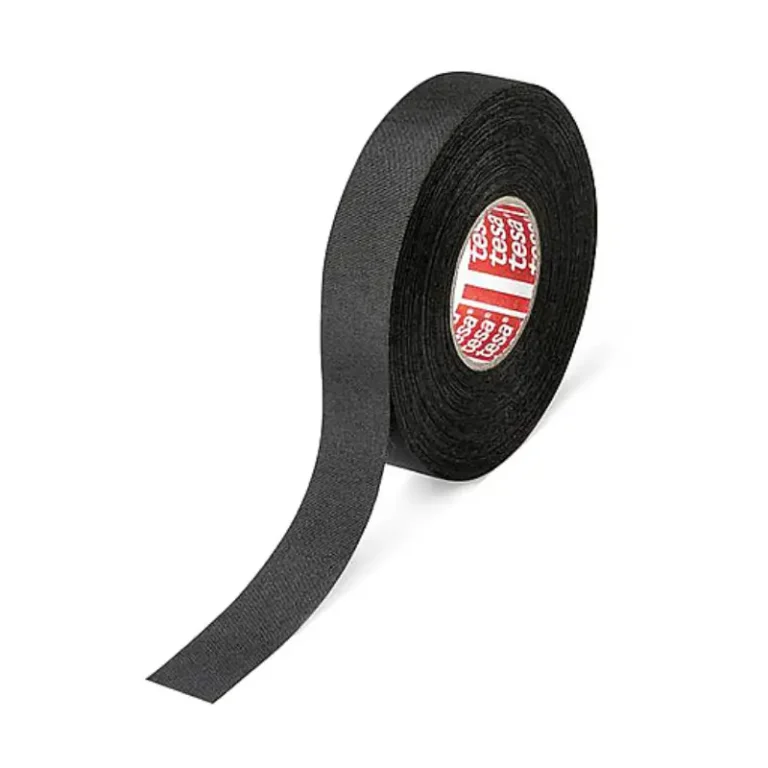

Tesa 51026 PET Cloth Wire Harness Tape
SKU:
TES51026
| Elongation at break | 40 % |
|---|---|
| Type of adhesive | acrylic |
| Tensile strength | 275 N/cm |
| Total thickness | 260 µm |
| Backing material | PET cloth |
| Abrasion resistance (5mm mandrel) | Class D (acc. to LV312) |
| Temperature resistance (3000h) | 150 °C |
| Temperature resistance min. | -40 °C |
| Unwind force (roll width ≤ 9mm) | 11 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Noise damping (decibel) | Class A (acc. to LV312) dB |
| Abrasion resistance (10mm mandrel) | Class D (acc. to LV312) |
| Adhesion to steel | 5.5 N/cm |

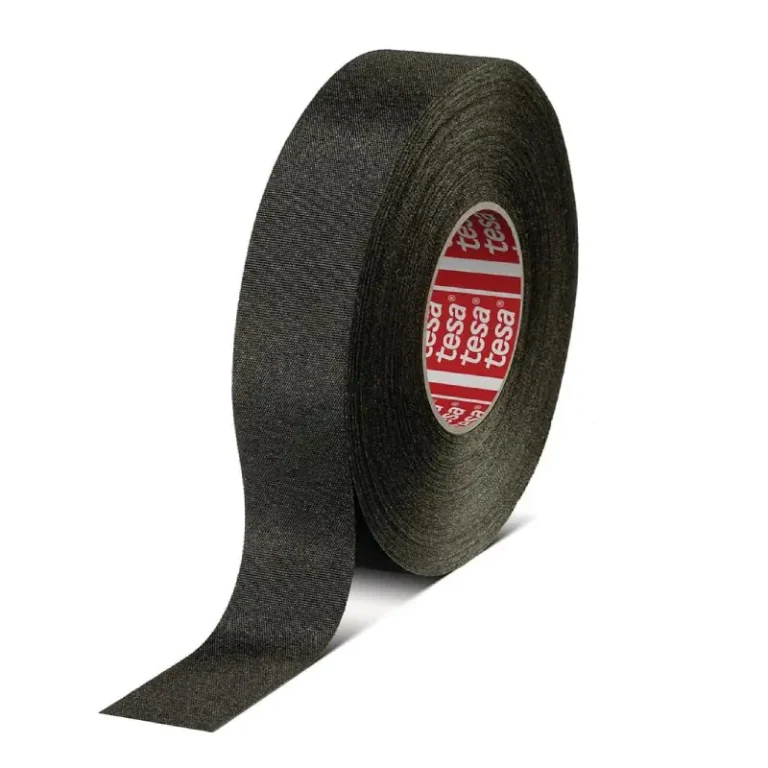

Tesa 51036 PET Cloth Wire Harness Tape
SKU:
TES51036
| Carrier/Backing: | PET Cloth |
|---|---|
| Adhesive: | acrylic |
| Thickness: | 10.2 mils (carrier, adhesive) |
| Adhesion: | 26.9 ounces per inch (to stainless steel test panel) |
| Service/Operating Temperature: | -40°F to 302°F |
| Elongation: | 45% |
| Abrasion resistance (5mm mandrel): | Class D (acc. to LV312) |
| Flame resistance as composite: | Class B (acc. to LV312) |
| Tensile strength | 275 N/cm |
| Total thickness | 260 µm |

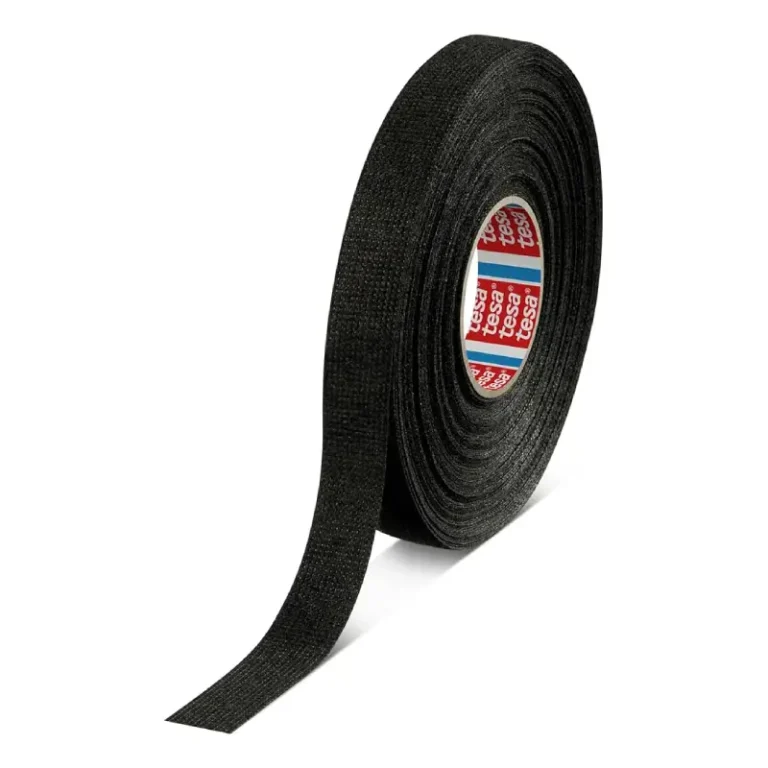

Tesa 51608 PET Cloth Wire Harness Tape 19mm x 15m
SKU:
TES51068-19x15
Tesa 51608 PET Cloth Wire Harness Tape 19mm x 25m
SKU:
TES51608-19x25
