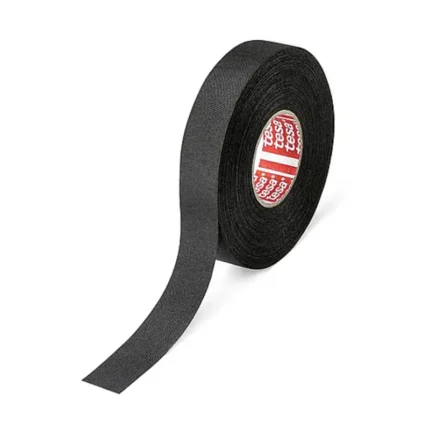

Tesa 51026 PET Cloth Wire Harness Tape
SKU:
TES51026
| Elongation at break |
40 % |
|---|---|
| Type of adhesive |
acrylic |
| Tensile strength |
275 N/cm |
| Total thickness |
260 µm |
| Backing material |
PET cloth |
| Abrasion resistance (5mm mandrel) |
Class D (acc. to LV312) |
| Temperature resistance (3000h) |
150 °C |
| Temperature resistance min. |
-40 °C |
| Unwind force (roll width ≤ 9mm) |
11 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) |
11 N/roll (30 m/min) |
| Noise damping (decibel) |
Class A (acc. to LV312) dB |
| Abrasion resistance (10mm mandrel) |
Class D (acc. to LV312) |
| Adhesion to steel |
5.5 N/cm |

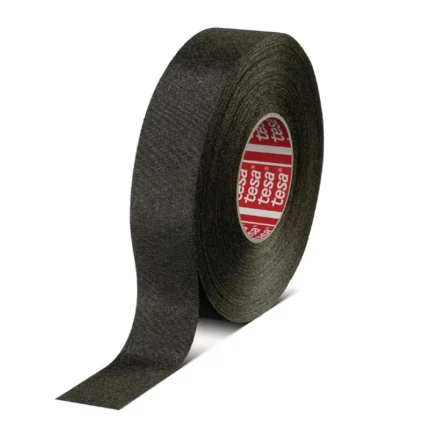

Tesa 51036 PET Cloth Wire Harness Tape
SKU:
TES51036
| Carrier/Backing: |
PET Cloth |
|---|---|
| Adhesive: |
acrylic |
| Thickness: |
10.2 mils (carrier, adhesive) |
| Adhesion: |
26.9 ounces per inch (to stainless steel test panel) |
| Service/Operating Temperature: |
-40°F to 302°F |
| Elongation: |
45% |
| Abrasion resistance (5mm mandrel): |
Class D (acc. to LV312) |
| Flame resistance as composite: |
Class B (acc. to LV312) |
| Tensile strength |
275 N/cm |
| Total thickness |
260 µm |

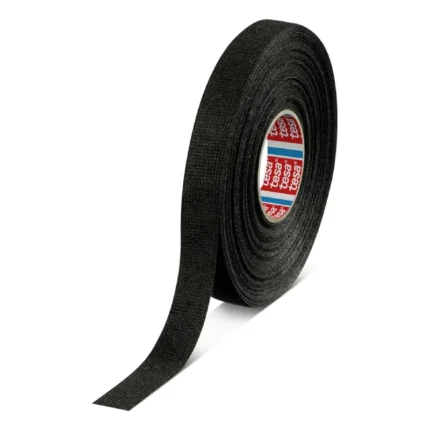

Tesa 51608 PET Cloth Wire Harness Tape 19mm x 15m
SKU:
TES51068-19x15
Tesa 51608 PET Cloth Wire Harness Tape 19mm x 25m
SKU:
TES51608-19x25
