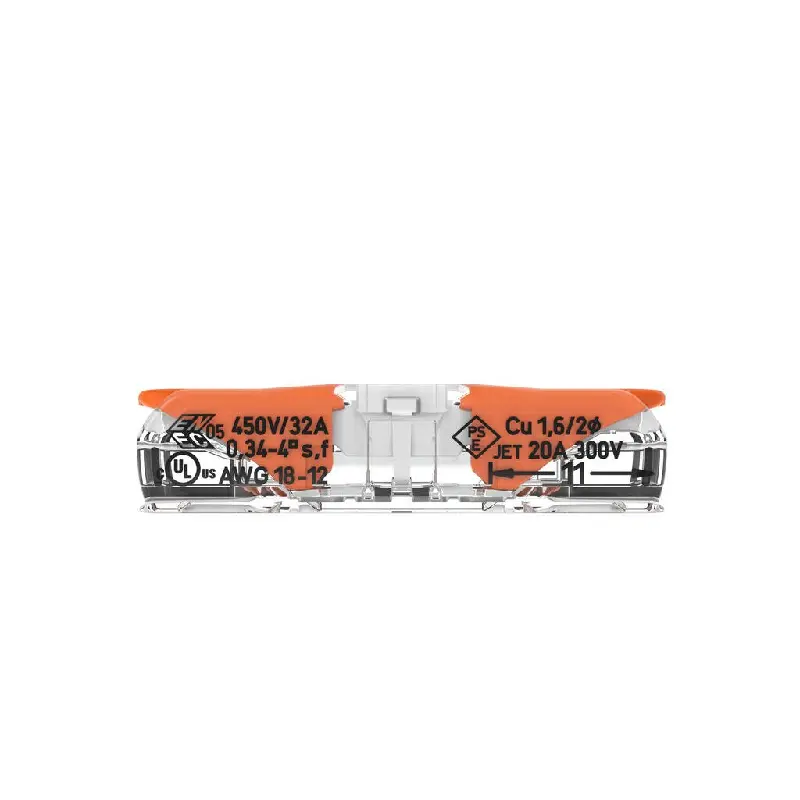

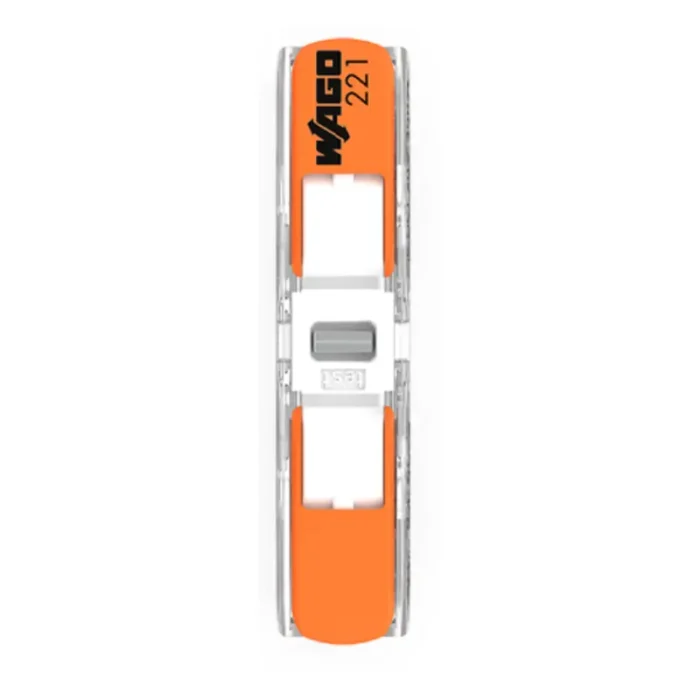

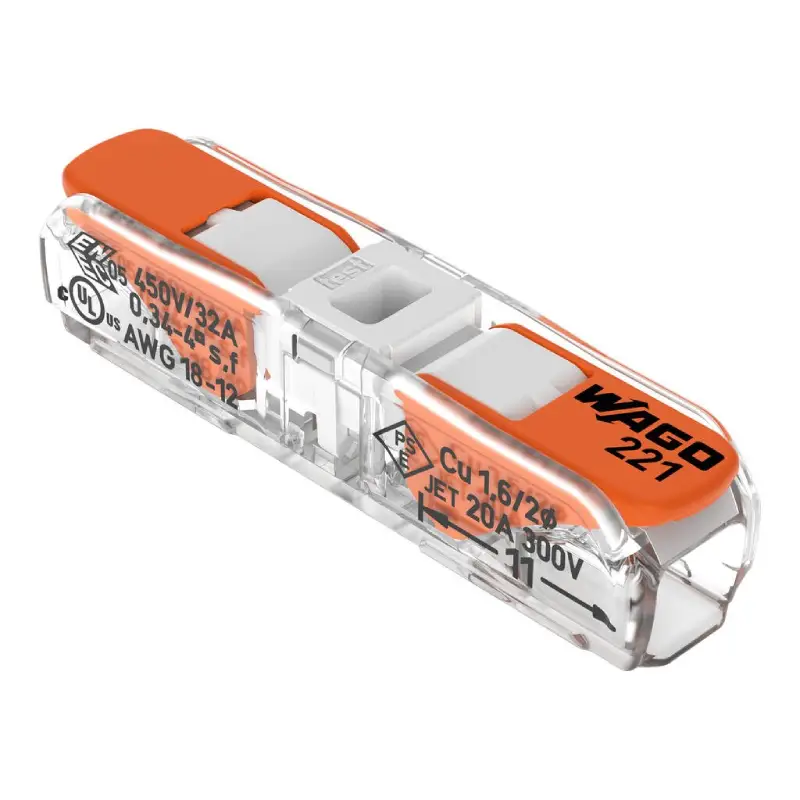

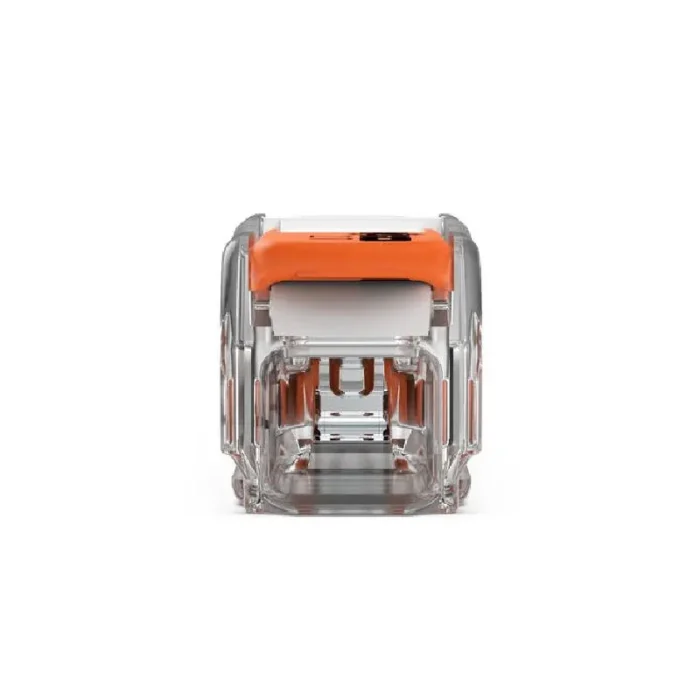

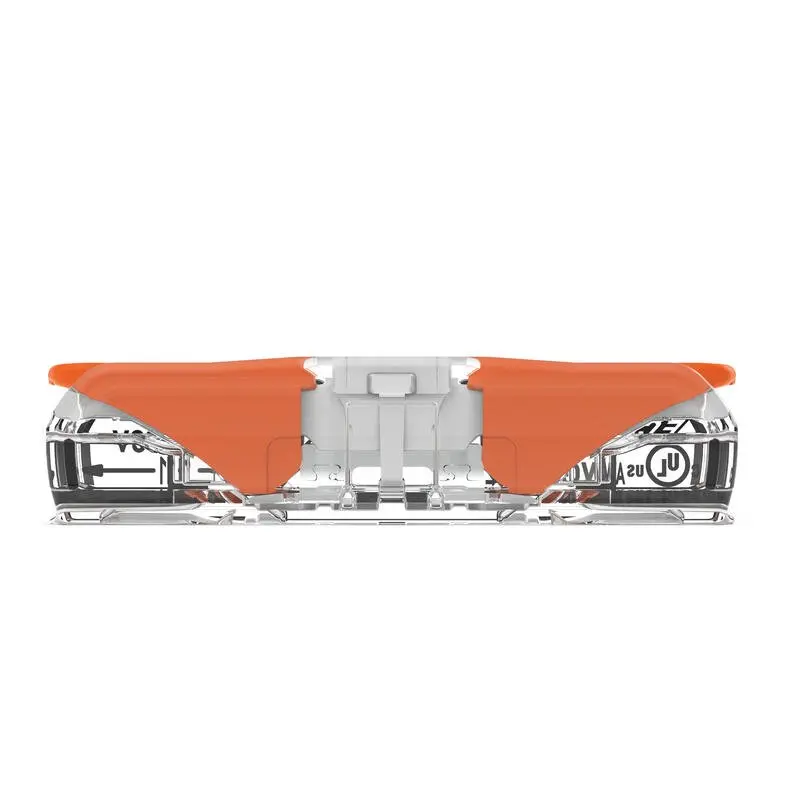

WAGO 221-2401 Inline Splicing Connector

Name: WAGO 221-2401 Inline Splicing Connector
SKU: WAG221-2401
Price: 0.27235 USD
Availability: InStock

$0.27235

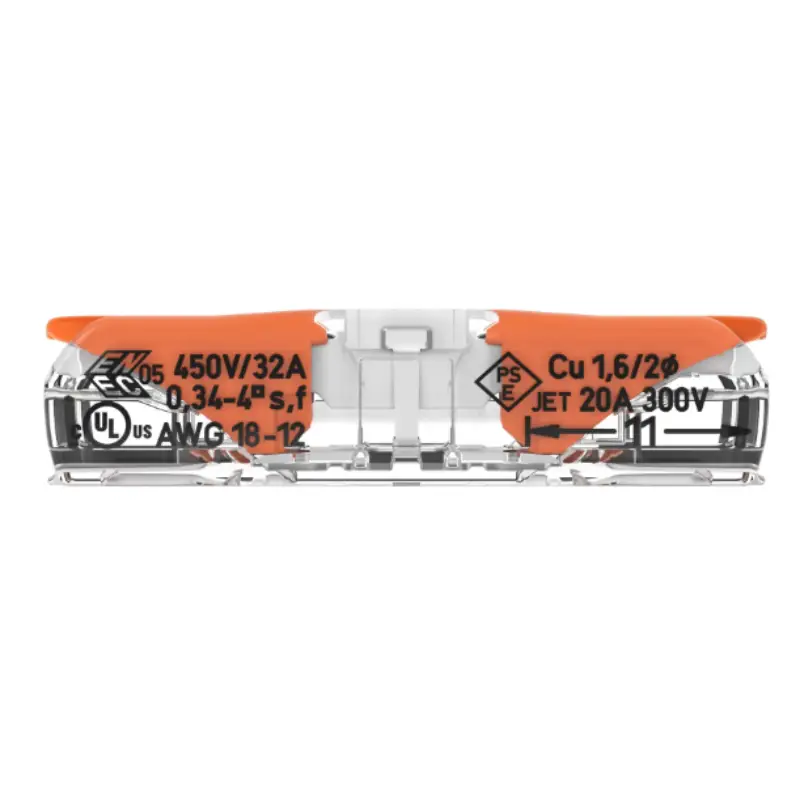

WAGO 221-2401 Inline Splicing Connector With lever; For All Conductor Types; 12 AWG (max.); 2-Conductor; Transparent Housing; White Cover; Surrounding Air Temperature: max 85°C (T85); 4.00 mm²; Transparent

Availability: 4546 in stock (can be backordered)

Bulk Pricing:

Quantity	Discount	Per Item Price
1-9	~~$0.27235~~ $13.18022	$13.18022
10-24	~~$0.27235~~ $1.59272	$1.59272
25-49	~~$0.27235~~ $0.82022	$0.82022
50-99	~~$0.27235~~ $0.56272	$0.56272
100-249	~~$0.27235~~ $0.43397	$0.43397
250-499	~~$0.27235~~ $0.35387	$0.35387
500-999	~~$0.27235~~ $0.32303	$0.32303
1000-2499	~~$0.27235~~ $0.31046	$0.31046
2500-4999	~~$0.27235~~ $0.30044	$0.30044
5000-9999	~~$0.27235~~ $0.29795	$0.29795
10000-15000	~~$0.27235~~ $0.29425	$0.29425

Stock available
Order yours today!
Free Shipping
Ships out same business day.

EAN: 4066966120462 SKU: WAG221-2401 Category: Wire/Splicing Connectors Tags: 221 Series, WAGO

Guaranteed Safe Checkout

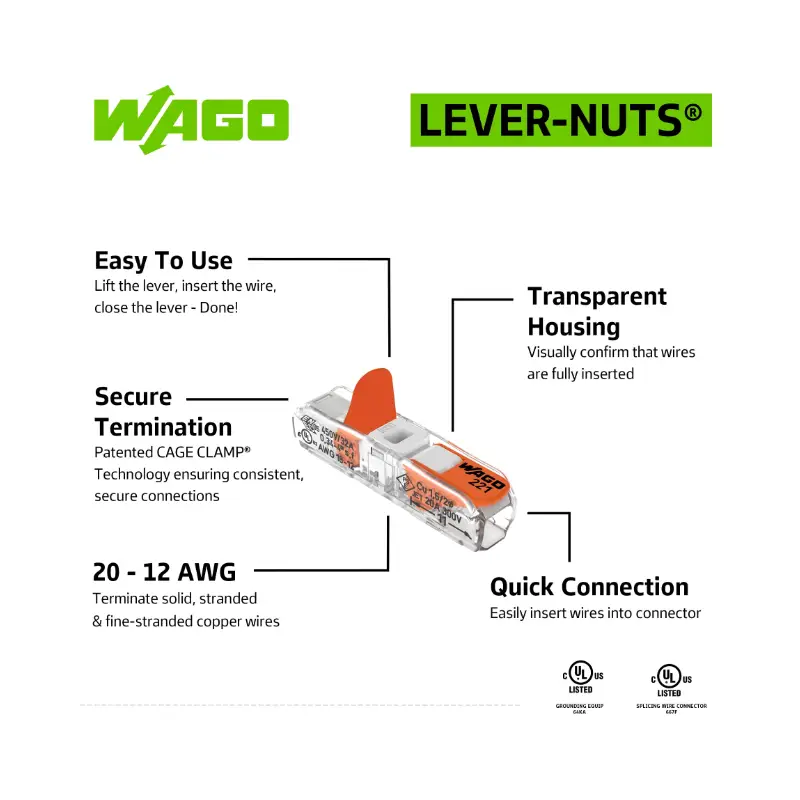

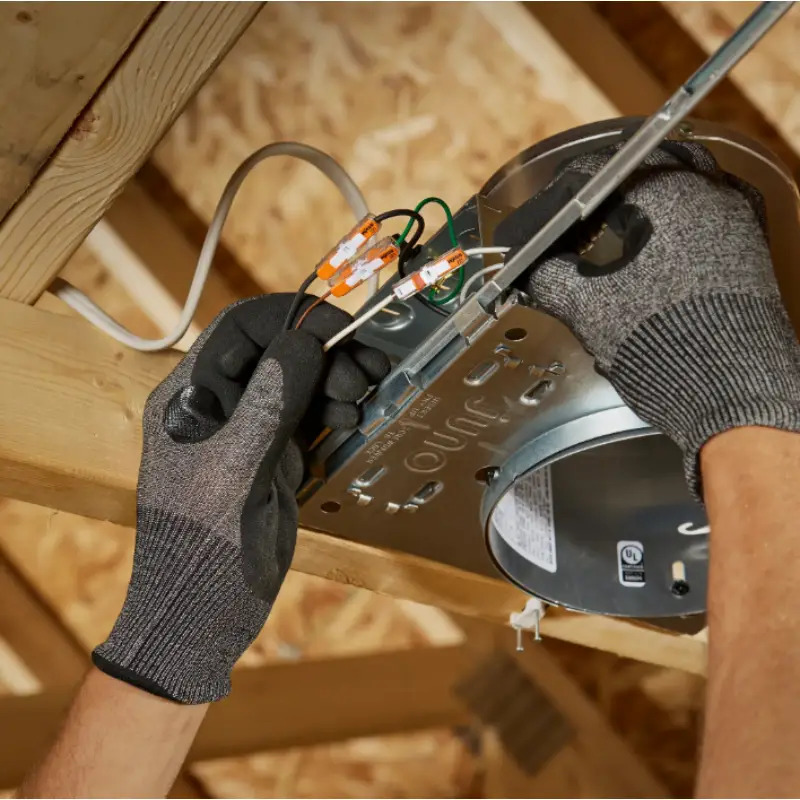

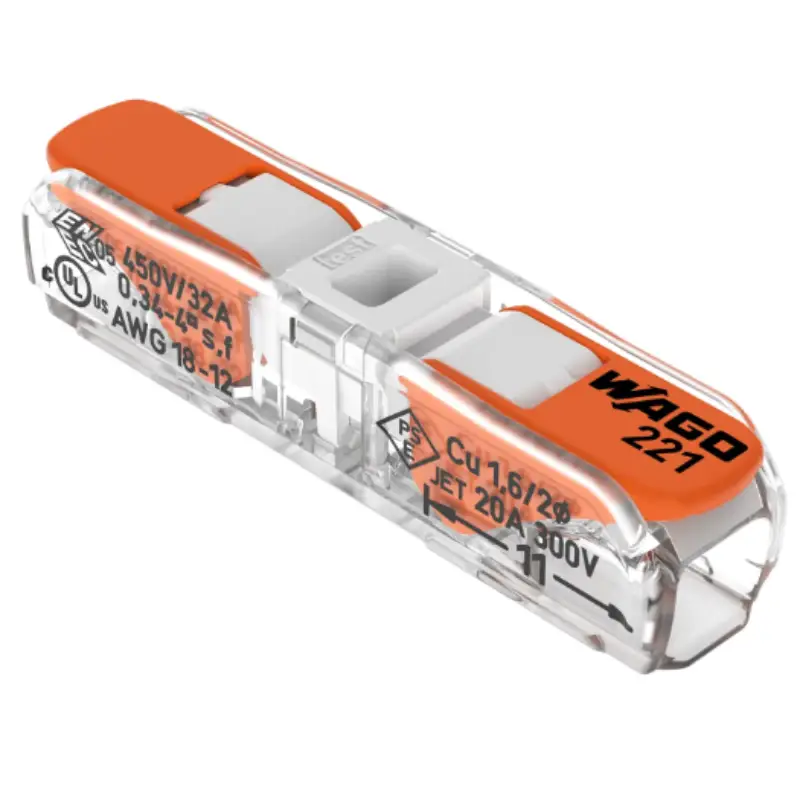

Introducing the new WAGO 221-2401 Inline Splicing Connector superstars for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes. The transparent housing allows visual inspection for correct wiring. There are also test ports at the front and rear of the connector.

WAGO’s 221-2401 Inline Splicing Connector is 12 AWG capable and ideal for installations in the North American market.

Connecting solid, stranded and fine-stranded conductors from 0.2 to 4mm² in the feedthrough direction
Slim design minimizes dimensions for installation in tight spaces

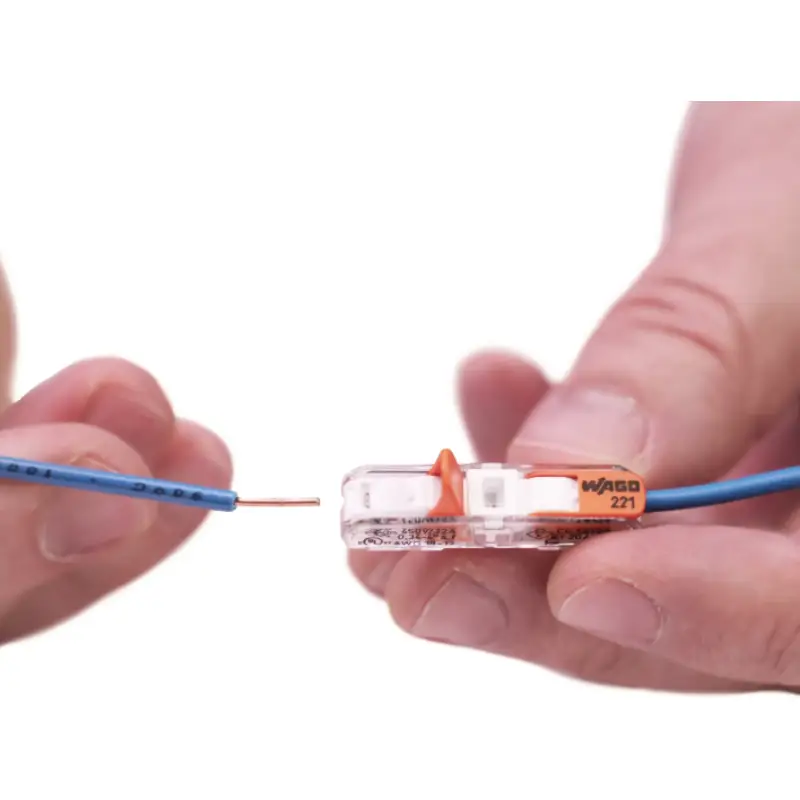

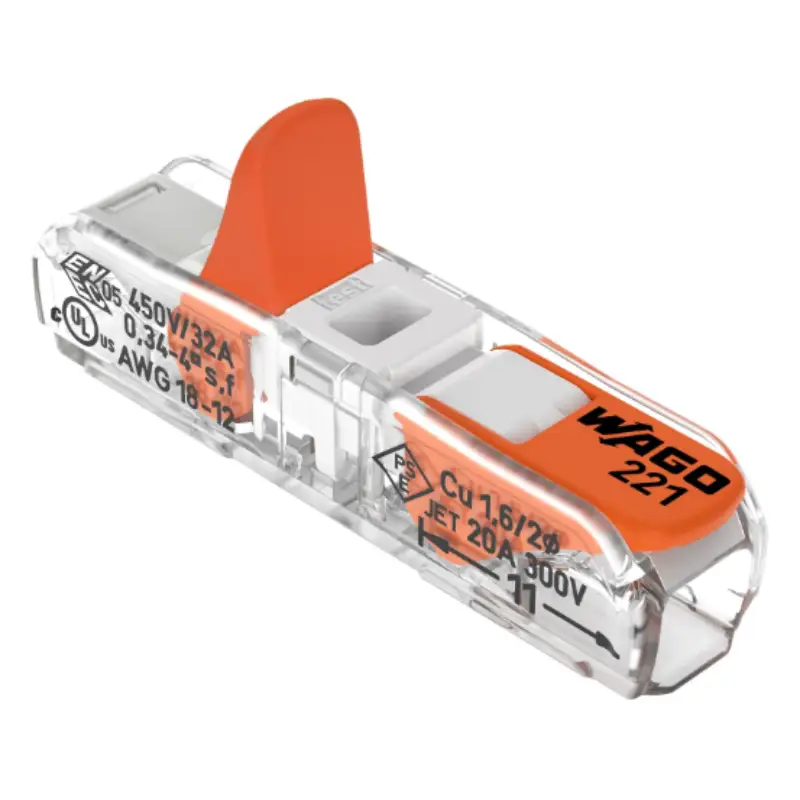

Tool-free connection and disconnection thanks to convenient lever technology

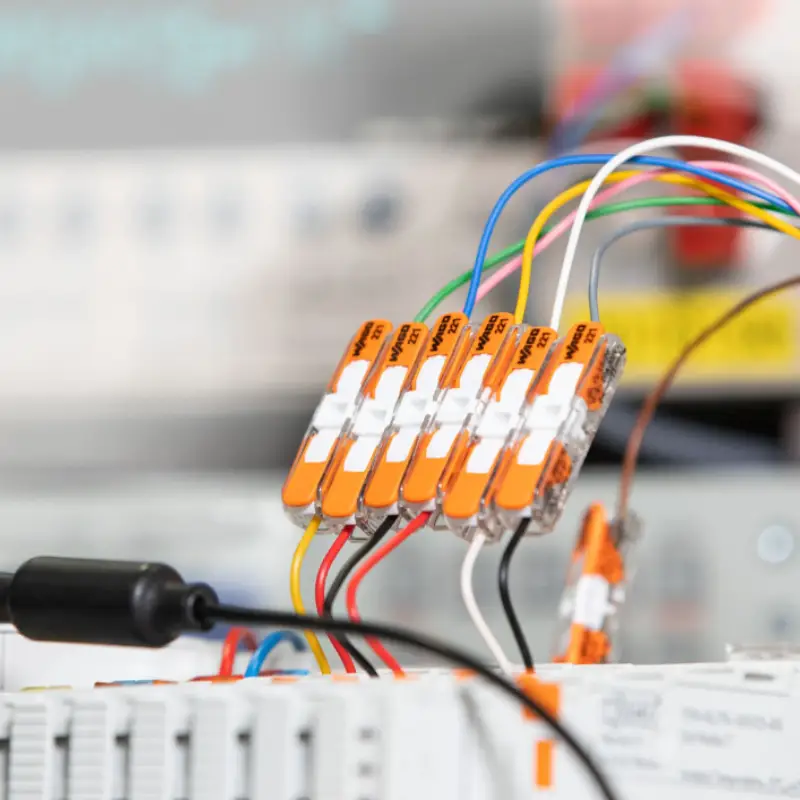

Choosing between fixed-position installation and multi-pole installation with an adapter

WAGO 221-2401 Inline Splicing Connector Data Sheet

Related Products:

WAGO 221-412 Compact Splicing Connector

WAGO 221-413 Compact Splicing Connector

WAGO 221-415 Compact Splicing Connector

Product Range:	221 Series
No. of Positions:	2 Positions
No. of Contacts:	2 Contacts
Wire Size (AWG):	18AWG to 12AWG
Connector Type:	Terminal Block
Conductor Area CSA:	4mm²
Wire Connection Method:	Push In Lock
Connector Mounting:	Cable Mount
Wire Size AWG Max:	12AWG
Wire Size AWG Min:	18AWG
Rated Current:	20A
Rated Voltage:	600V
Contact Plating:	Tin Plated Contacts
Contact Material:	Copper
Solid conductor	0.2 … 4 mm² / 20 … 12 AWG
Stranded conductor	0.2 … 2.5 mm² / 18 … 12 AWG
Fine-stranded conductor	0.34 … 4 mm² / 18 … 12 AWG
Strip length	11 mm / 0.43 inches

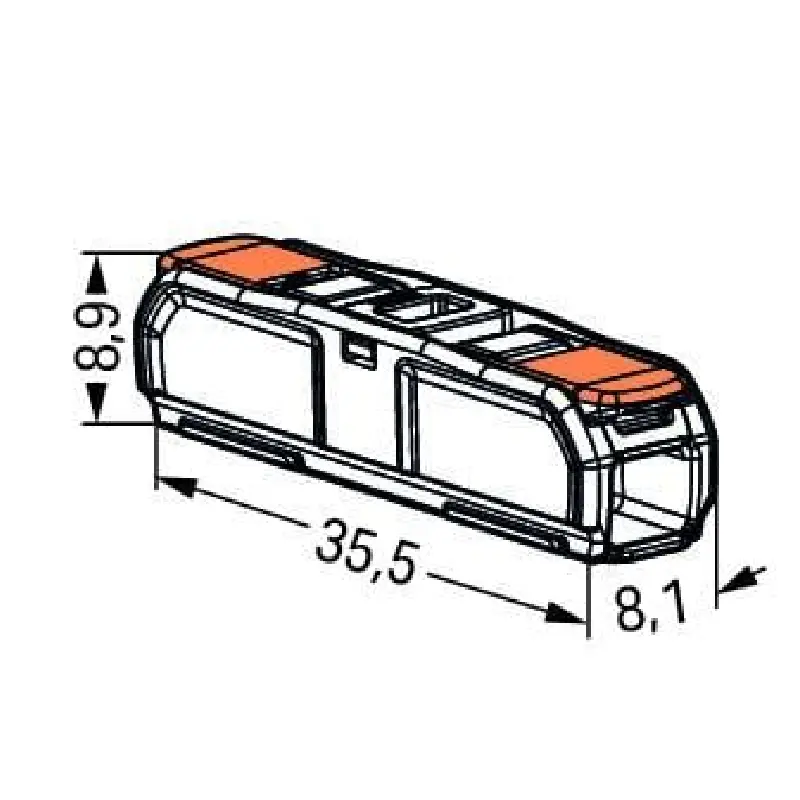

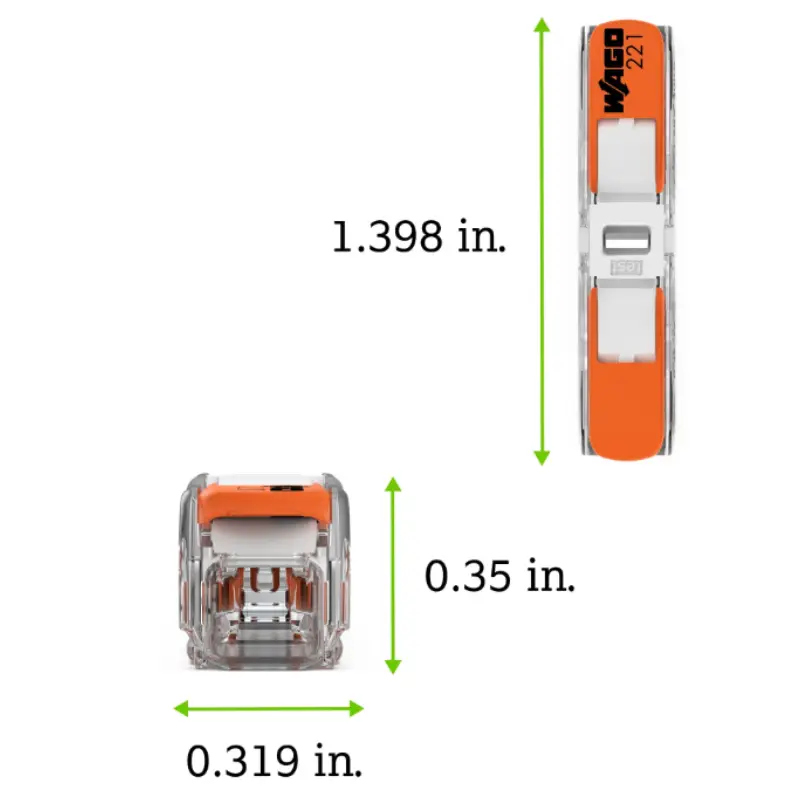

Width	8.1 mm / 0.319 inches
Height	8.9 mm / 0.35 inches
Depth	35.5 mm / 1.398 inches
Weight	2.3 g
