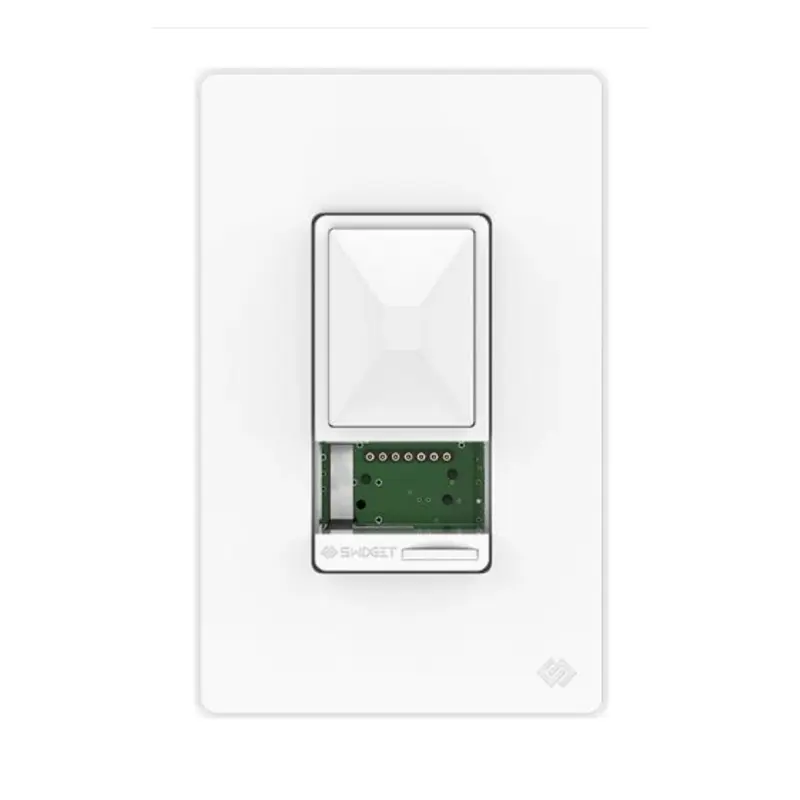

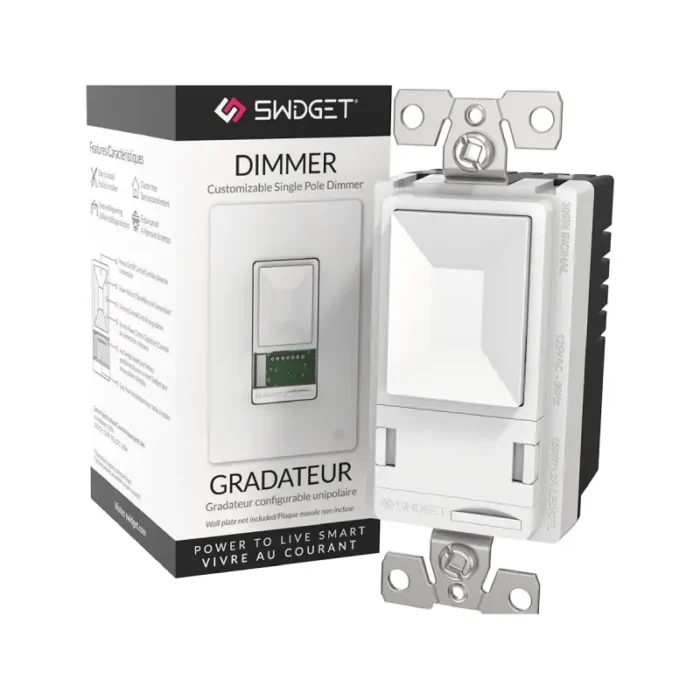

Panasonic Swidget SD3001WA Dimmer Switch
CAD$ 81.066
18 in stock (can be backordered)
Panasonic Swidget SD3001WA Dimmer Switch The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.
The Dimmer Switch has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced – making Swidget the optimal choice for building renovations and new construction. The Swidget Dimmer Switch uses a simple 3-wire interface, making installation easy.
Product Details
125VAC 2.5A modular Smart Home enabled dimmer
Key Features
- ON/OFF/Dimmer control in a single pad with the capability for scene programming (Wi-Fi Inserts only)
- Designed with industry-leading anti-flicker technology for dimmable LED’s
- Direct power monitoring
- Wide range of customization and feature options with plug and play Swidget Inserts
| Product Number: |
SD3001WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,2.5A |
| LED/CFL Load Rating: |
150Q |
| Incandescent Load Rating: |
300W |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single (1p) |
| Testing and Code Compliance: |
UL1472/ UL1310 ,CSA C22.2 #184.1 ,#223 (Canada and US) |
| Compatibility: |
NEMA SSL 7A Compliant |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |
Brand
Swidget
Panasonic Swidget® is an innovative line of modular smart controls and sensors designed to improve indoor air quality, energy efficiency, and smart home automation. Developed in partnership with Swidget®, this unique platform integrates seamlessly with Panasonic’s trusted ventilation systems—offering advanced control and customization through interchangeable smart inserts.
Panasonic Swidget combines power outlets and switches with modular inserts such as motion sensors, humidity sensors, temperature monitors, air quality sensors, and Wi-Fi/Bluetooth connectivity—turning traditional electrical devices into smart, adaptable building blocks. This intelligent system enables real-time air quality management, occupancy detection, and remote control for ERV/HRV units, bathroom exhaust fans, and other ventilation products.
Designed with healthy homes, smart buildings, and energy-conscious consumers in mind, Swidget works with Amazon Alexa, Google Assistant, IFTTT, and third-party integrations. The solution is also ideal for Net Zero and Energy Star®-certified homes, offering building professionals and homeowners a scalable way to manage comfort and performance.
As an official Panasonic Swidget distributor in Canada, we provide full access to these cutting-edge solutions, backed by expert support, fast delivery, and competitive pricing.
RELATED PRODUCTS
Panasonic Swidget R1020SWA 20A Outlet
| Product Number: |
R1020SWA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,20A |
| Outlet Receptacle Configuration: |
NEMA 5-20R |
| Resistive Load Rating: |
2400W |
| Motor Load Rating: |
1.0HP |
| Inductive Load Rating: |
– |
| Relay Mechanical Endurance Rating: |
2 ,000 ,000 cycles (or 548 years @ 10 cycles per day) |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |
Panasonic Swidget WI001UWA WIFI + USB Module
| Product Number: |
WI001UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Output Power Rating: |
5Vdc +/-5% @ 2A (Class 2) |
| USB Output Connector: |
Type A |
| Smart Charge Detection: |
BC1.2 compliant |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |
Panasonic Swidget WI002UWA WIFI + Guidelight Module
Panasonic Swidget WI004UWA WIFI + Motion Module
| Product Number: |
WI004UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Detection Range : |
3m |
| Field of view: |
120 degrees |
| Vacancy Timer: |
Adjustable between 1-60 minutes |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |
