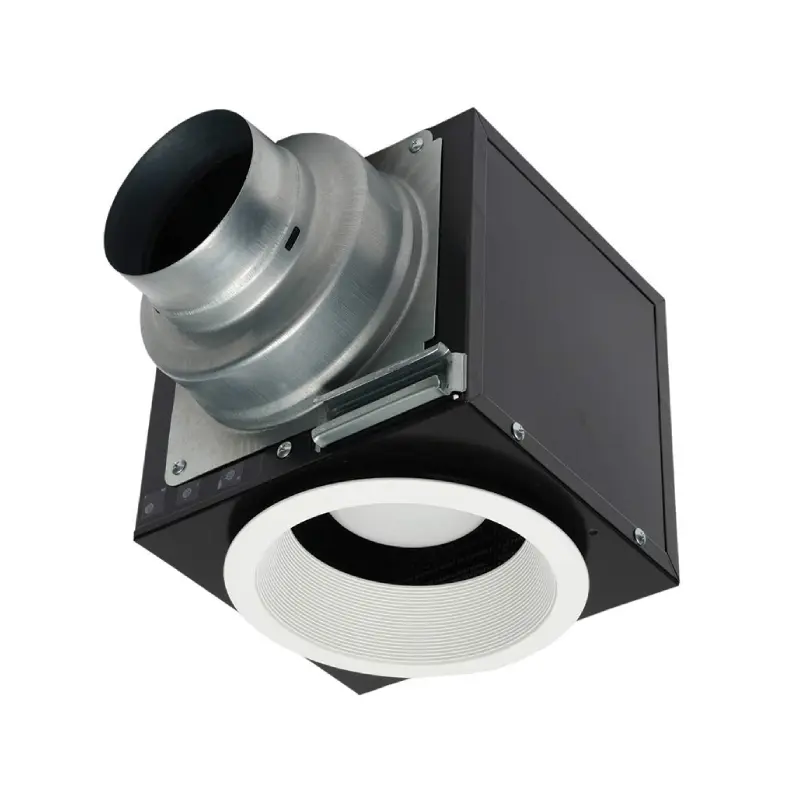

Panasonic FV-NLF46RES Recessed Inlet with Light
$128.628
1 in stock (can be backordered)
Recessed Inlet® is a multi-purpose exhaust or supply inlet that is ideal for use with remote mount in-line fans or H/ERV’s, or as a light-only option matching the WhisperRecessed® fan/LED light.
Key Features
- Incorporates an architectural-grade, recessed, can light design with 6″ aperture
- Includes (1) replaceable 11W, ENERGY STAR® 2.0 certified, GU24 base dimmable LED lamp
- Ultra-energy efficient LED lamp uses up to 40% less energy than CFLs
The Design Solution for Exhaust or Supply Inlets
Recessed Inlet® is a multi-purpose exhaust or supply inlet that is ideal for use with remote mount in-line fans or H/ERV’s, or as a light-only option matching the WhisperRecessed® fan/LED light.
Recessed Inlet is an attractive way to remove moist, polluted air from the home or distribute fresh air to multiple rooms when needed. Its upscale, recessed, can light appearance complements the aesthetics of any bathroom, living room or laundry room area.
Recessed Inlet includes an 11 Watt, ENERGY STAR® 2.0 certified, GU24 base LED lamp, and is also UL listed for tub/shower enclosure when GFCI protected.
Additional Features and Benefits:
- Integrated 4″ or 6″ duct adapter
- UL listed for tub/shower enclosure when GFCI protected
- IC rated
- 5-year warranty on LED, 3-year warranty on parts
| Additional info: |
*Only for Lamp |
|---|---|
| Advanced Features: |
Single Speed |
| California Title 24 Compliant: |
Yes |
| Color Rendering Index: |
92 |
| Color Temperature (Kelvin): |
2 ,700 |
| Construction Type: |
Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation. |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan/Light – LED |
| Housing Collar Opening (Inches): |
6" Round |
| Industry: |
Residential. Light Commercial. |
| Inlet: |
Inlet Unit |
| Lamp Model # (Green Creative): |
11BR30G4DIM/927/GU24 |
| Lamp Watts |
1 x 11 |
| Lumens (lm): |
750 |
| Lumens Per Watt (LPW): |
69 |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Motor Type (AC/DC): |
N/A |
| Mounting Options: |
Ceiling Mount (UL). Tub/Shower (UL) |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
Recessed Inlet |
| Rated Life (hours): |
25 ,000 |
| Trim Outer Diameter (Inches): |
7-1/4" Round |
| Type of Lamp Socket: |
GU24 |
| UL tub/Shower Enclosure: |
Yes |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-NLF46RES Recessed Inlet with Light - Architectural Specification
Panasonic FV-NLF46RES Recessed Inlet with Light - Installation Instructions
Panasonic FV-NLF46RES Recessed Inlet with Light - Sell Sheet
Panasonic FV-NLF46RES Recessed Inlet with Light - Service Manual
Panasonic FV-NLF46RES Recessed Inlet with Light - Specification Submittal Sheet
