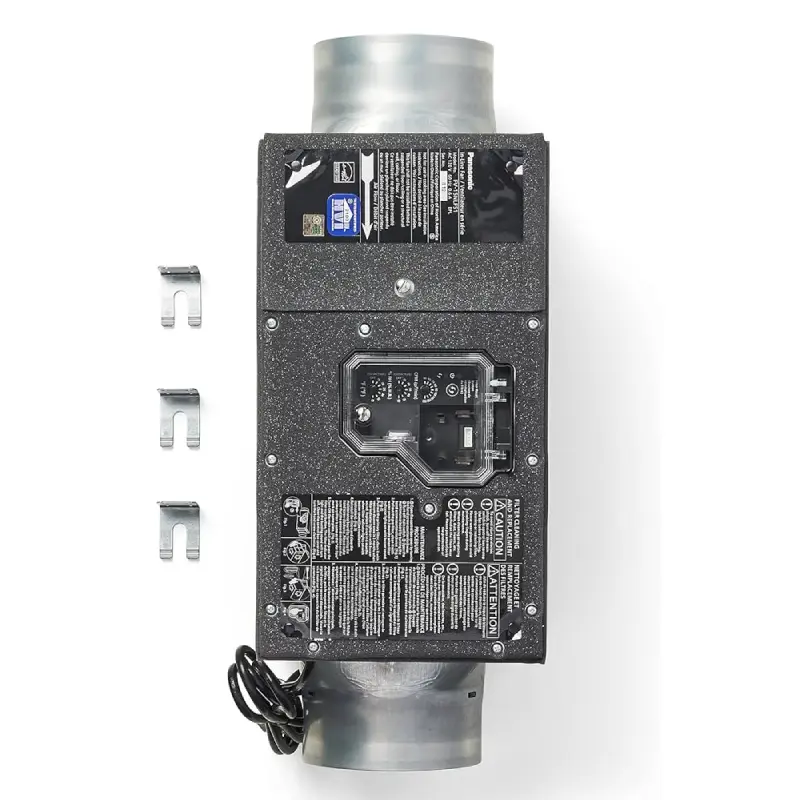

Panasonic FV-15NLFS1 WhisperFresh Select Fresh Air Supply Fan, 50-150 CFM
CAD$ 531.233
2 in stock (can be backordered)
Panasonic FV-15NLFS1 WhisperFresh Select Fresh Air Supply Fan, 50-150 CFM WhisperFresh Select™ is the ultimate supply air fan. Built-in Pick-A-Flow™ airflow selector switch allows you to select your required airflow (50-150 CFM). WhisperFresh Select can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.
KEY FEATURES
- Customizable fresh air supply fan with Pick-A-Flow™ technology – one fan, you choose the CFM (9 settings)
- Intelligent ECM motor with SmartFlow technology provides optimum CFM output for precision whole-house supply ventilation
- Operates as a stand-alone filtered supply fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air
- Capable of communicating with Panasonic’s acclaimed WhisperGreen® Select™ to create a balanced ventilation solution
- Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone
| Model: |
FV-15NLFS1H |
|---|---|
| Model number: |
FV-15NLFS1H |
| Fan Type: |
Fan Only |
| Advanced Features: |
Pick-A-Flow™ speed selector ,ECM motor with SmartFlow technology ,and built-in humidity and temperature settings |
| Air Volume Supply (CFM): |
@0.2 and 0.3= 50-150 ,@0.4=50-130 |
| Power Consumption (Watts): |
Multiple Levels: 8.2W to 27.3W |
| Energy Efficiency (CFM/Watt): |
Multiple Levels: 7.40 to 5.59 |
| Current (Amps): |
Multiple Levels: 0.15 to 0.41 |
| Power Rating (V/Hz): |
120/60 |
| Motor Type (AC/DC): |
ECM |
| ENERGY STAR® Certified: |
Yes |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED CA Tittle 24 |
| Duct Diameter: |
6 inch |
| Mounting Options: |
Vertical /Horizontal |
| Ventilation Design Approach: |
Supply Ventilation ,Balance Ventilation when used with an exhaust fan |
| Warranty: |
6 year ECM motor/3 year parts |
| Industry: |
Residential ,Light Commercial |
| Radiation Damper Available: |
N/A |
| Master Carton Gross Weight (lbs.): |
17.4 (1 unit) |
| Master Carton Dimensions (HxWxD): |
12 x 15 1/2 x 27 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
