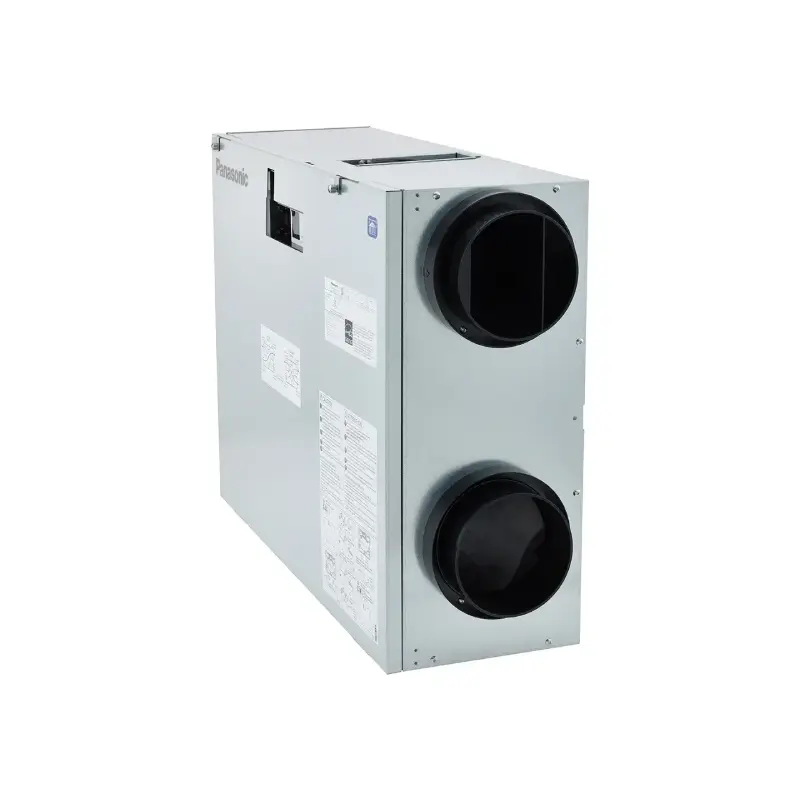

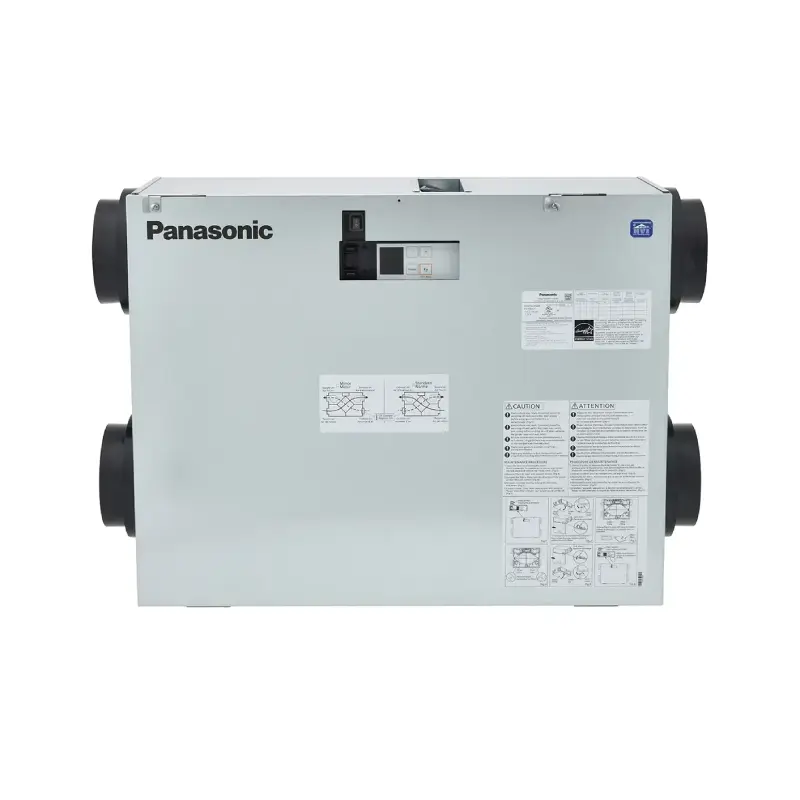

Panasonic FV-12ESC1 Intelli-Balance® Elite Plus+ 120 Energy Recovery Ventilator – Any Climate
CAD$ 1.000
Available on backorder
Panasonic FV-12ESC1 Intelli-Balance® Elite Plus ERV — Product Description
Bring fresh, balanced air to your home — energy smart, whisper-quiet, and built for any climate.
The Panasonic FV-12ESC1 is part of the Intelli-Balance® Elite Plus series — a next-generation energy recovery ventilator (ERV) that meets rigorous indoor air quality standards while helping you save energy.
Key Features & Benefits
1. Superior Energy Recovery
-
Delivers up to 90% Sensible Recovery Efficiency (SRE), recovering heat from outgoing air to pre-condition incoming fresh air.
-
Helps maintain comfortable indoor conditions with minimal load on your HVAC system.
2. Balanced Ventilation for Healthy Air
-
Equipped with 4 dedicated 6” duct ports: supply, exhaust, fresh intake, and stale exhaust.
-
Maintains balanced indoor pressure, preventing negative pressure issues common in tightly sealed homes.
3. Dual ECM Motors with Smart Flow® Technology
-
Two brushless DC motors adjust automatically to static pressure changes, ensuring consistent airflow.
-
Provides quiet operation, long motor life, and superior efficiency.
4. Flexible, Climate-Ready Installation
-
Operates reliably in extreme conditions down to –30°C (–22°F) with built-in frost prevention modes.
-
Can be mounted on a wall, ceiling, floor, or chain-hung for installation flexibility.
-
Adjustable “mirror” configuration allows easy adaptation to various layouts.
5. Intelligent Airflow Control
-
Multi-speed selector (30–120 CFM) allows custom airflow balance or pressurization modes.
-
Intermittent timing function meets ASHRAE 62.2 ventilation code requirements, maintaining optimal indoor air quality.

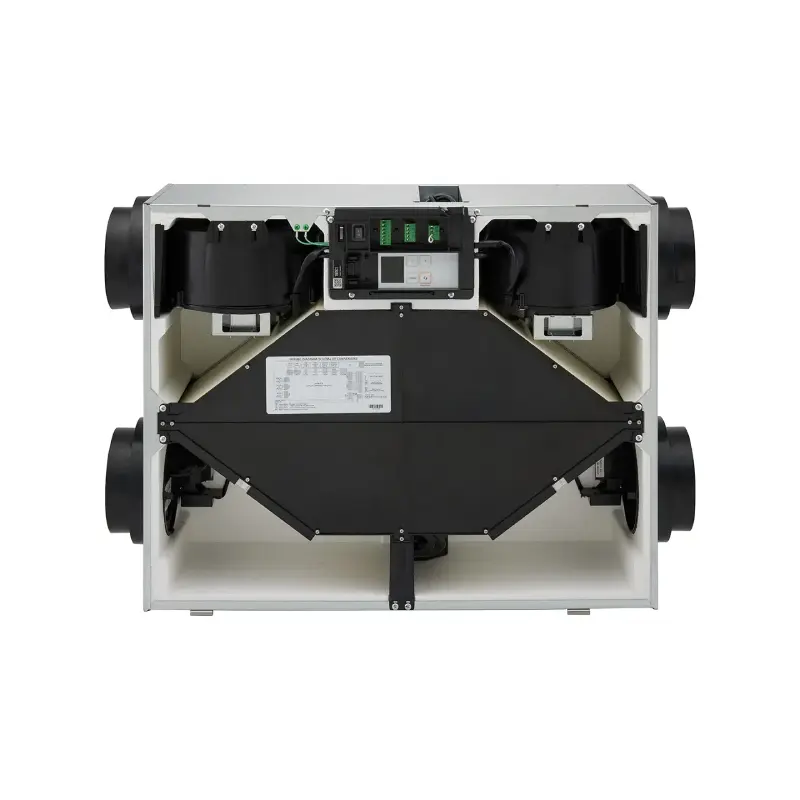

6. High-Performance Core & Filtration
-
Hygroscopic transfer core balances humidity while resisting mold growth.
-
Includes two MERV 13 filters for high air purity; optional washable MERV 6 or replacement MERV 13 filters available.
7. Certified & Reliable
-
Meets ENERGY STAR®, ASHRAE 62.2, and LEED standards for efficiency and sustainability.
-
Backed by a 6-year warranty on DC motors and a 3-year warranty on parts.
Technical Specs at a Glance
| Specification | FV-12ESC1 |
|---|---|
| Air Volume (CFM) | 120 @ 0.4″ SP |
| Rated Voltage | 120 V / 60 Hz |
| Motor Type | Dual DC ECM (Smart Flow) |
| Duct Connections | Four 6″ integrated duct adapters |
| Installation | Wall / ceiling / floor / chain-mounted |
| Warranty | 6-year motor / 3-year parts |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
