Sold out
Dundas Jafine AF625 Flexible Aluminum Foil Duct – 6″ x 25′
$53.057
Possible Delays – Please Contact For More Info
Out of stock

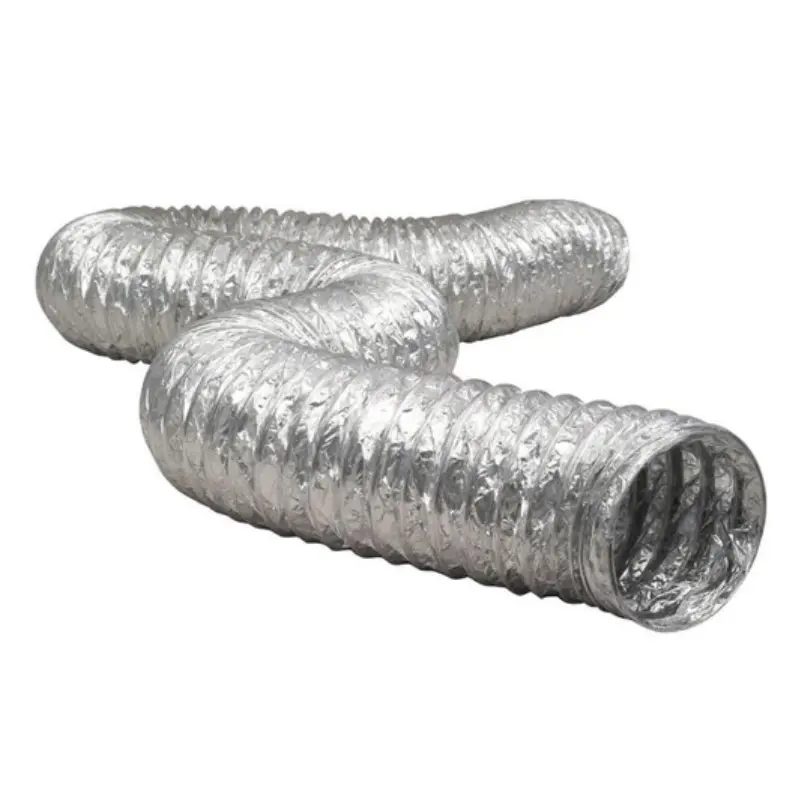

Dundas Jafine AF625 Flexible Aluminum Foil Duct – 6″ x 25′
The AF625 Flexible Aluminum Foil Duct is engineered for general-purpose ventilation applications such as bathroom fans, kitchen exhaust vents, and other low- to mid-pressure air systems. It is not recommended for dryer exhaust, even though UL-rated versions are available for code compliance where needed.
Constructed from a durable 3-ply aluminum foil laminate reinforced with a steel wire helix, this duct is flexible yet crush-resistant—ideal for long runs and tight routing. Rated to withstand up to 250 °F, it combines light weight with good airflow and tear-resistance.
Key Features:
Lightweight and flexible for easy installation
Operates safely up to 250 °F
Tear- and puncture-resistant aluminum foil construction
Available in UL‑181 Class 1 configurations where required
Excellent for bathroom and kitchen exhaust applications
Brand
Dundas Jafine
Dundas Jafine® is a leading manufacturer of high-performance air distribution, dryer venting, and ventilation products trusted by professionals and homeowners across North America. With over 80 years of innovation, Dundas Jafine delivers reliable, easy-to-install solutions designed to meet the needs of modern HVAC systems, laundry rooms, bathroom exhausts, and kitchen ventilation setups.
The brand offers a full range of UL-listed and CSA-certified products including dryer transition ducts, aluminum and flexible ducts, roof and wall vents, inline draft blockers, exhaust fans, and air diffusers. Known for quality craftsmanship and durability, Dundas Jafine products help improve airflow efficiency, reduce moisture buildup, and meet building code compliance for residential and light commercial use.
As a trusted Canadian distributor of Dundas Jafine products, we provide a complete selection of ventilation and air duct accessories backed by fast delivery, competitive pricing, and expert support.
