Arlington GBB5P Intersystem Grounding Bridge with PVC Adaptor
$29.712
1 in stock (can be backordered)
Arlington GBB5P Intersystem Grounding Bridge with PVC Adaptor
The Arlington GBB5P is a heavy-duty intersystem grounding bridge with an integrated PVC conduit adapter—designed to bond power and communication grounding systems in a durable, code-compliant way.
Key Features:

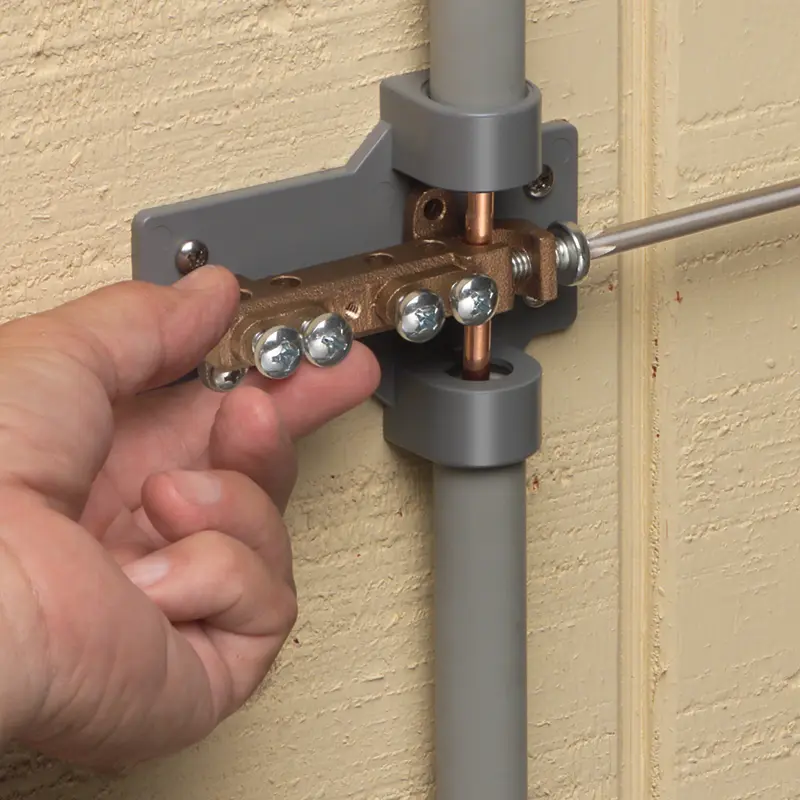

Four termination points for #14–#4 AWG conductors—one more than the NEC minimum
Main grounding lug supports #6–#2 AWG conductors

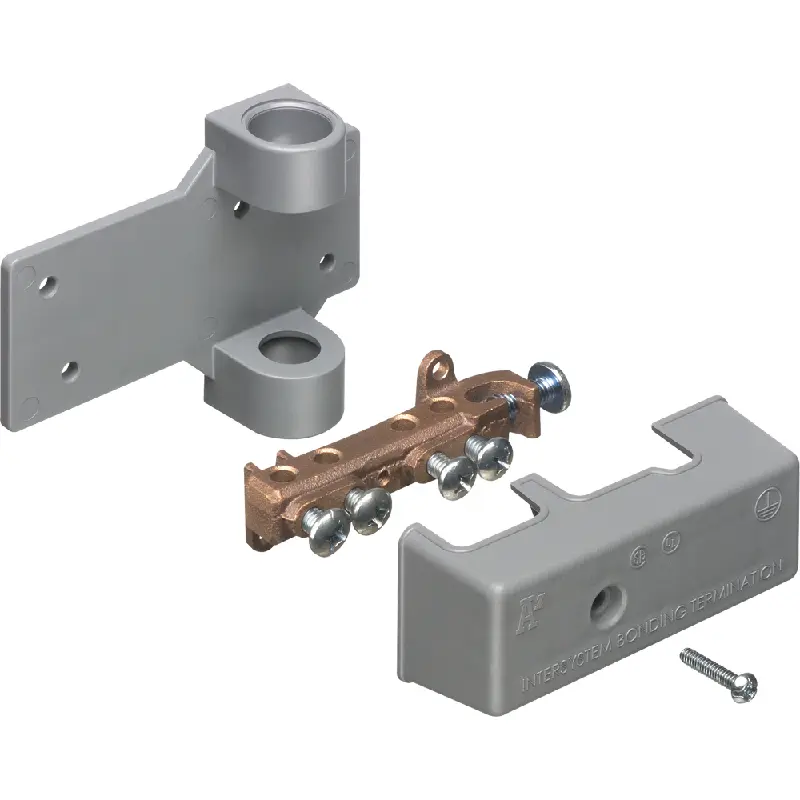

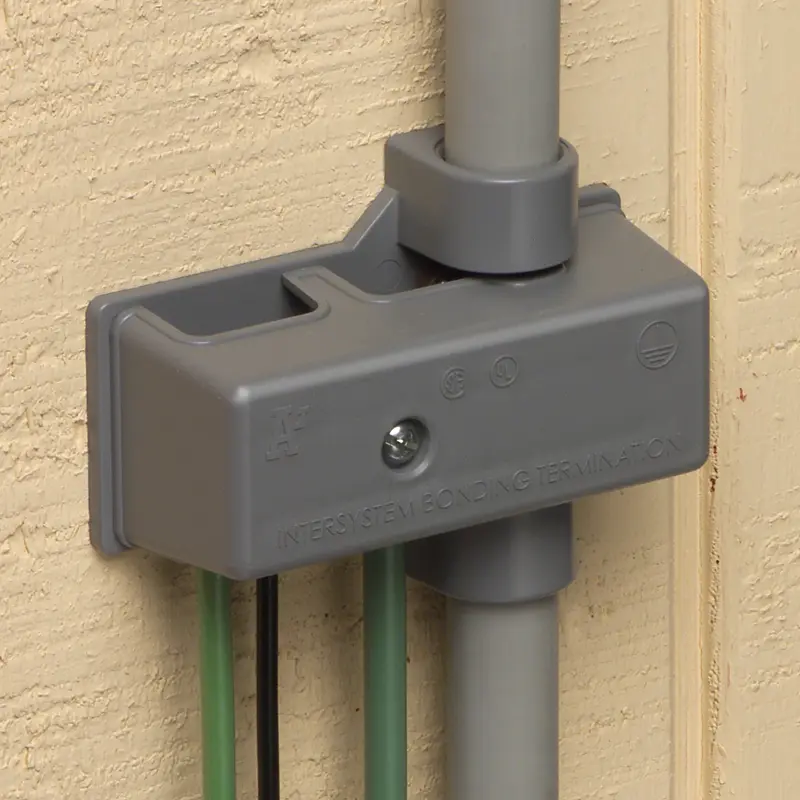

Durable construction: Bronze grounding bar with UV-rated, paintable plastic cover

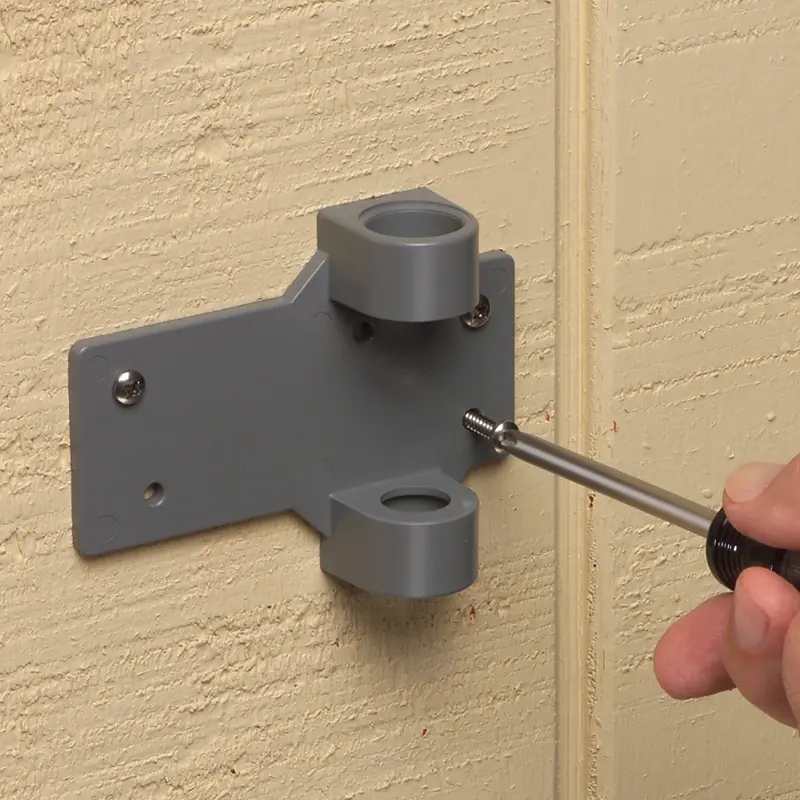

Built-in ½″ PVC adapter for clean conduit connection
Compact dimensions: Approx. 3.38″ × 1.41″ × 0.72″, weighing ~0.69 lbs
Typical Applications:

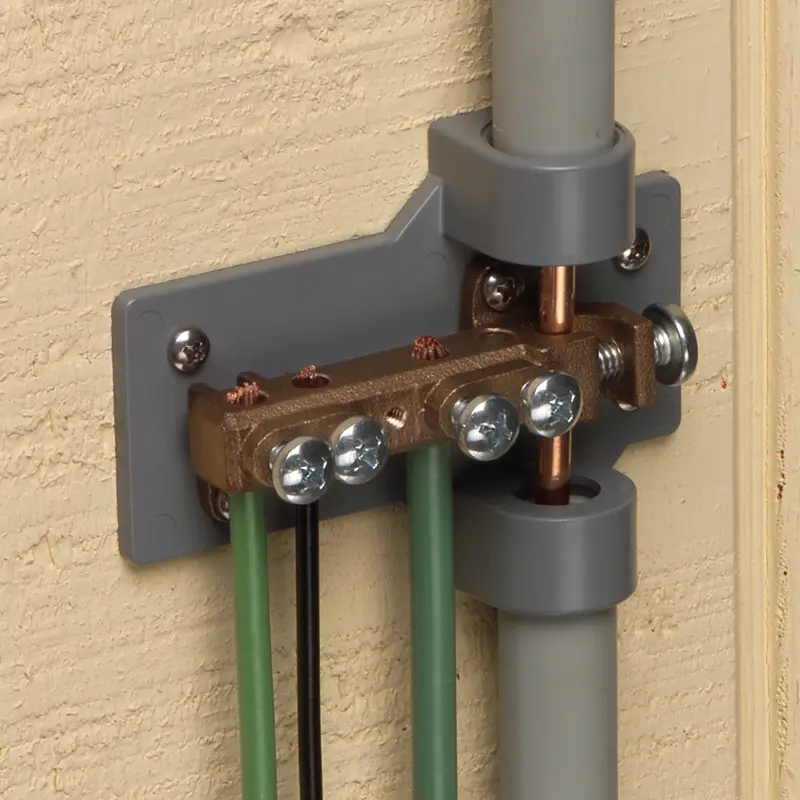

Ideal for connecting multiple systems—phone, CATV, satellite—to the main grounding conductor while maintaining a clean, professional finish.
Brand
Arlington Industries
Arlington Industries® is a leading U.S. manufacturer of high-quality electrical fittings, cable management products, and low-voltage mounting solutions. Known for innovation and code-compliant designs, Arlington has been serving electricians, contractors, and distributors for over 70 years.
With a commitment to quality, Arlington offers a wide range of UL-listed products for residential, commercial, and industrial electrical installations. Their product line includes steel and non-metallic cable connectors, electrical boxes and enclosures, floor box systems, low-voltage brackets, wall plates, and fittings for flexible conduit, NM cable, and MC cable. Arlington’s patented designs are engineered to help professionals save time, reduce labor costs, and meet NEC and CSA standards with ease.
Whether you're wiring a home, outfitting a data center, or upgrading a commercial facility, Arlington delivers trusted and efficient solutions for modern electrical needs. As a recognized distributor of Arlington products in Canada, we offer a full selection of genuine fittings and accessories, ready to ship nationwide with expert support and competitive pricing.
