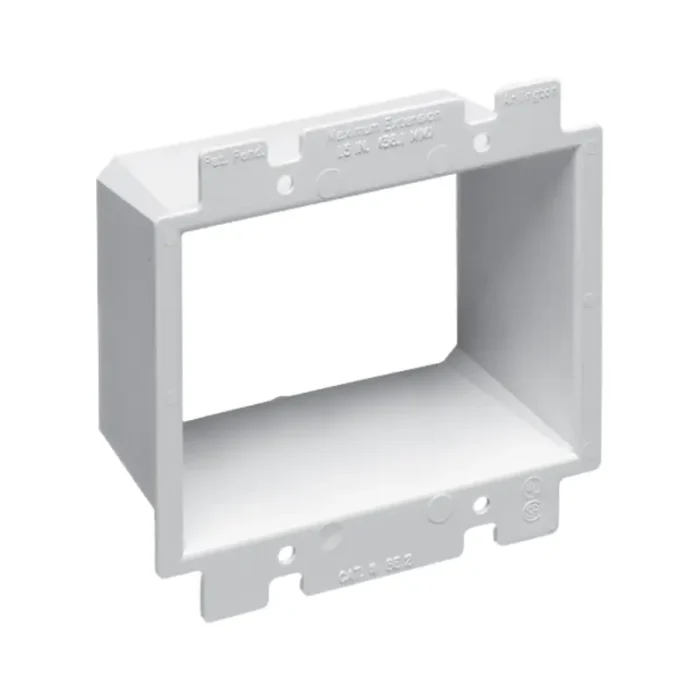

Arlington BE2 Two Gang Box Extender
CAD$ 4.543
9 in stock (can be backordered)
Box Extenders. Box Extender, levels and supports the wiring device where the box is set back from the wall surface extends the box up to 1-1/2″. 2 hour fire rating. Two Gang.
Arlington’s non-conductive box extenders extend set back metal or non-metallic electrical boxes up to 1-1/2 inches, the easy way! They work with any single gang device and most steel and non-metallic outlet boxes, providing a level, fully supported wiring device that’s flush with the wall surface. In steel boxes they prevent arcing and shorting by creating a barrier between the box and device screws.
Now available in three- or four-gang, our newest box extenders have a slightly larger flange that provides extra device support when the wall opening is miscut or oversized. They accommodate midi or jumbo cover plates – and they’re trimmable along the perforated flange for use with standard plates. Best of all they cost the same as our ‘regular’ flange box extenders. If you normally use a midi plate these are the box extenders for you!
Features and Benifits
- Functions with all standard devices, switches, and GFCIs
- Allows the contractor to comply with 2020 NEC Article 314.20
- Levels and supports the wiring device where the box is set back
from the wall surface (adjusts up to a 1-1/2” box extension) - Works in handy boxes and 4” square electrical boxes with
plaster rings for single switches or receptacle - Manufactured from 105°C continuous use 94V0 rated
flame retardant plastic for safer installations - 2 hour fire rating
| Available Gang Size |
2 Gang – BE2 |
|---|
Brand
Arlington Industries
Arlington Industries® is a leading U.S. manufacturer of high-quality electrical fittings, cable management products, and low-voltage mounting solutions. Known for innovation and code-compliant designs, Arlington has been serving electricians, contractors, and distributors for over 70 years.
With a commitment to quality, Arlington offers a wide range of UL-listed products for residential, commercial, and industrial electrical installations. Their product line includes steel and non-metallic cable connectors, electrical boxes and enclosures, floor box systems, low-voltage brackets, wall plates, and fittings for flexible conduit, NM cable, and MC cable. Arlington’s patented designs are engineered to help professionals save time, reduce labor costs, and meet NEC and CSA standards with ease.
Whether you're wiring a home, outfitting a data center, or upgrading a commercial facility, Arlington delivers trusted and efficient solutions for modern electrical needs. As a recognized distributor of Arlington products in Canada, we offer a full selection of genuine fittings and accessories, ready to ship nationwide with expert support and competitive pricing.
