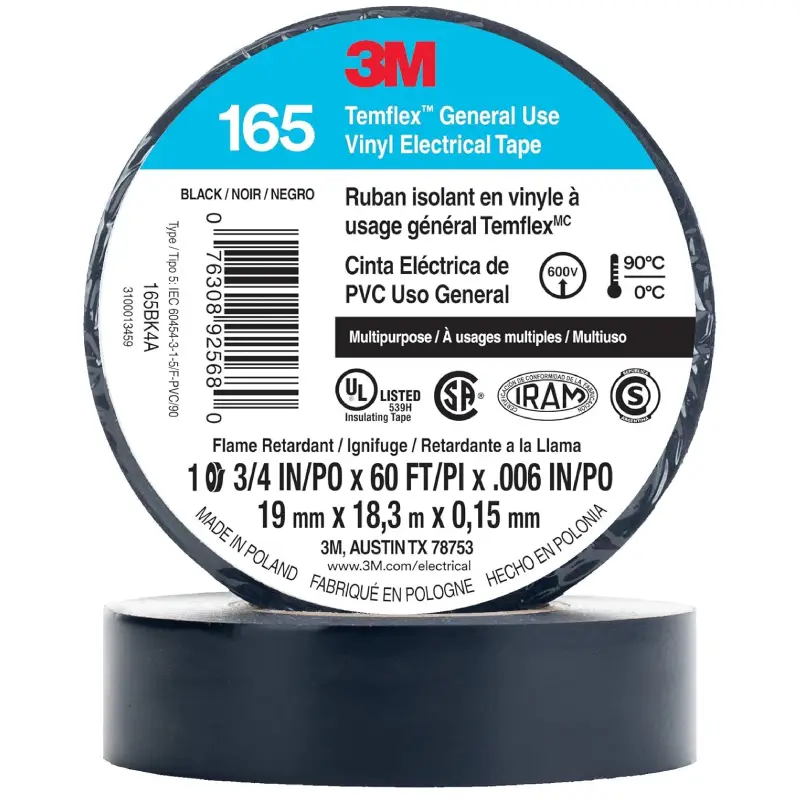

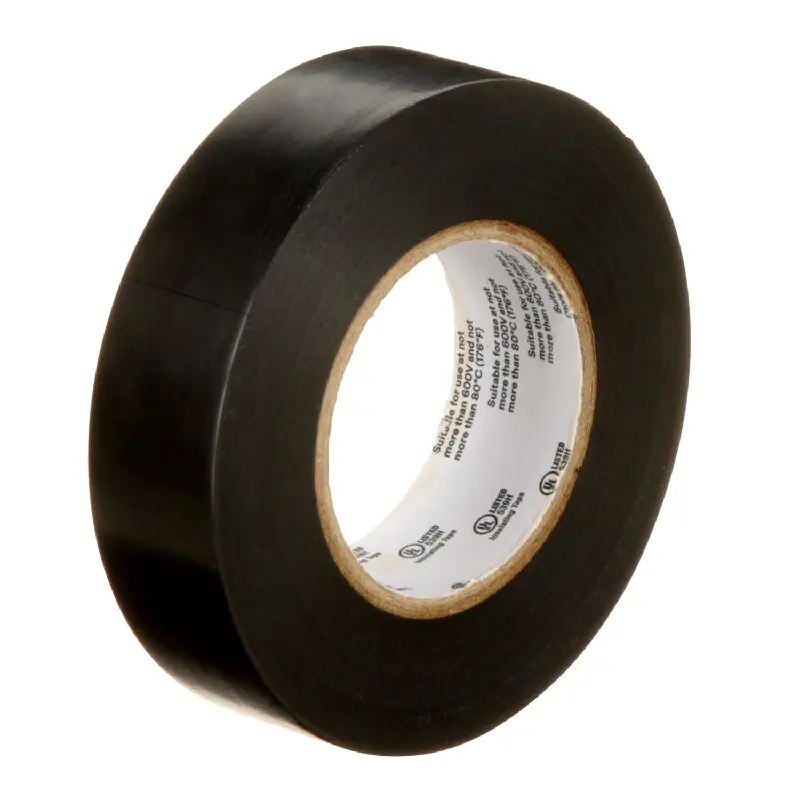

3M TEMFLEX-3/4X60CP10 Temflex Vinyl Electrical Tape 165, Black – 3/4 in x 60 ft
$5.299
10 in stock (can be backordered)
The 3M™ Temflex™ Vinyl Electrical Tape 165 is a good quality, multi-purpose vinyl insulating tape. This tape has great resistance to moisture and varying weather conditions.
The 3M™ Temflex™ Vinyl Electrical Tape 165 is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. This tape provides great mechanical protection with minimum bulk. The 3M™ Temflex™ Vinyl Electrical Tape is a UL Listed and CSA Certified “Insulating Tape.” No solvents are used in the manufacturing process.
Highlights
- Resists abrasion, moisture, alkalis, solvents and acids
- Flame-retardant and helps inhibit the corrosion of electrical conductors
- Made of durable PVC
- Compatible with rubber and synthetic splicing compounds
- Withstands a temperature range of 0 to 90 °C (32 to 194 °F)
- Made without solvents
- UL Listed, CSA and VDE Certified
Suggested applications
- Harnessing
- Wire Marking
- Ideal for harnessing, bundling, pulling, fishing of wires and cables
- Offers electrical insulation for wire and cable splices rated up to 600 volts
- Use for colour-coding phase identification, wire marking, and safety
| Adhesive Type: |
Rubber |
|---|---|
| Applications: |
Insulation |
| Backing (Carrier) Material: |
PVC |
| Brands: |
Temflex |
| Dielectric Strength: |
40 kV/mm |
| Elongation at Break: |
200.0 % |
| Flame Retardant: |
Yes |
| Maximum Operating Temperature (Celsius): |
90 °C |
| Maximum Operating Temperature (Fahrenheit): |
194 null |
| Minimum Operating Temperature (Celsius): |
0 °C |
| Minimum Operating Temperature (Fahrenheit): |
32 null |
| Product Colour: |
Blue, Brown, Green, Grey, Orange, Purple, Yellow, Red, White, Black |
| Shelf Life: |
5 yr |
| Tape Grade: |
General Use |

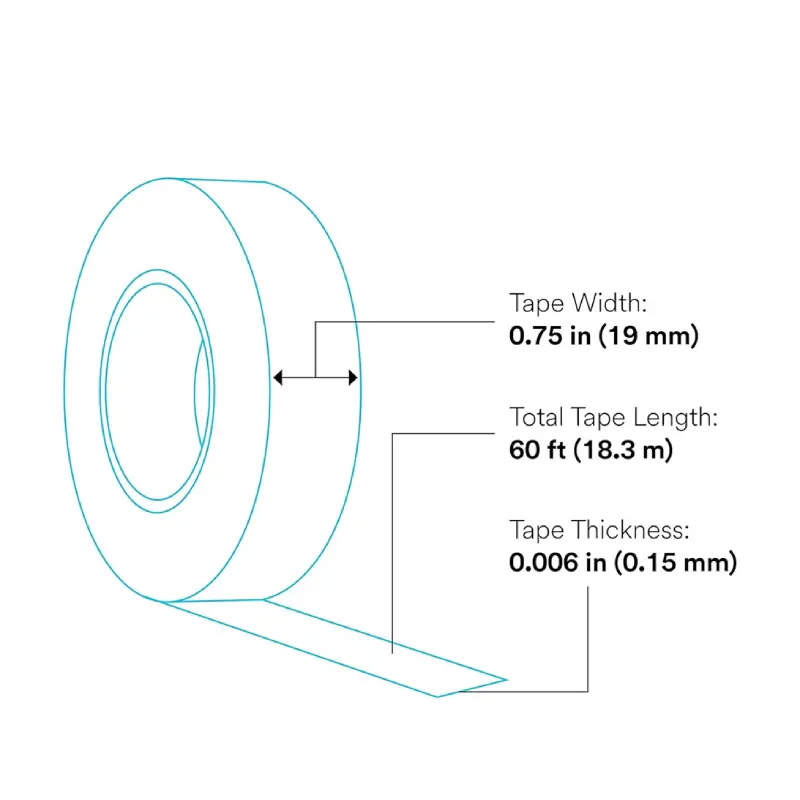

| Total Tape Thickness without Liner (Imperial): |
0.006 in |
| Total Tape Thickness without Liner (metric): |
0.15 mm |
| Voltage Rating: |
600 V |
Brand
3M
