Platinum Tools 100027C ezEX48 Shielded CAT6A Connector, External Ground, Pack of 25
$102.319
1 in stock (can be backordered)

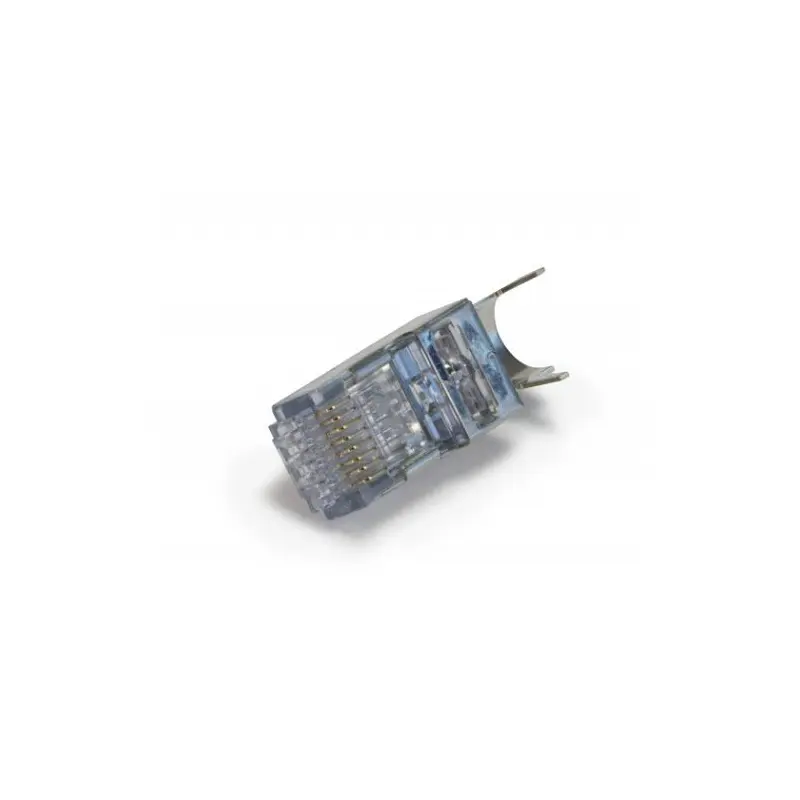

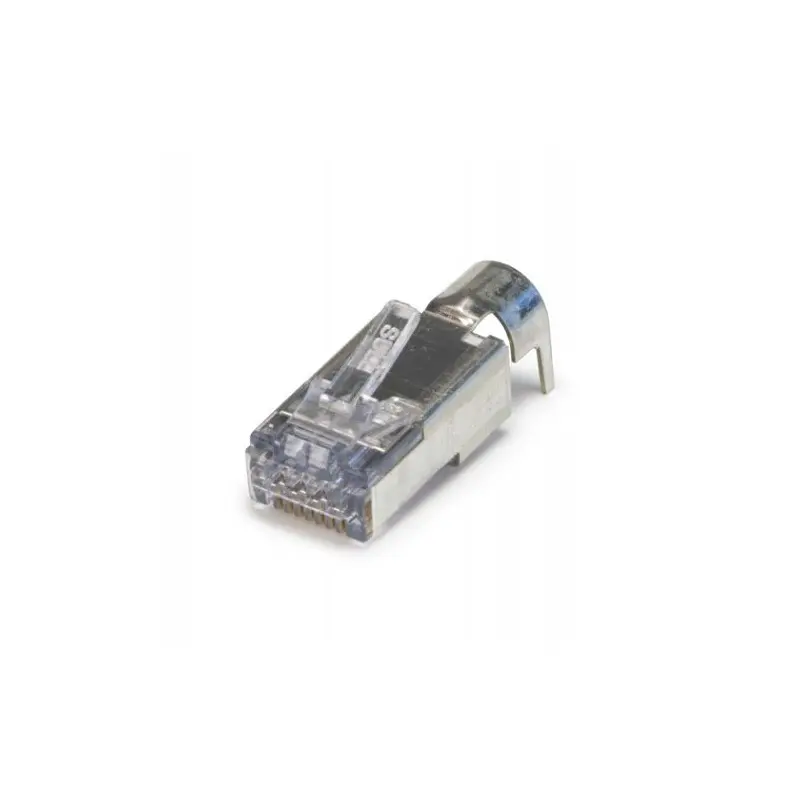

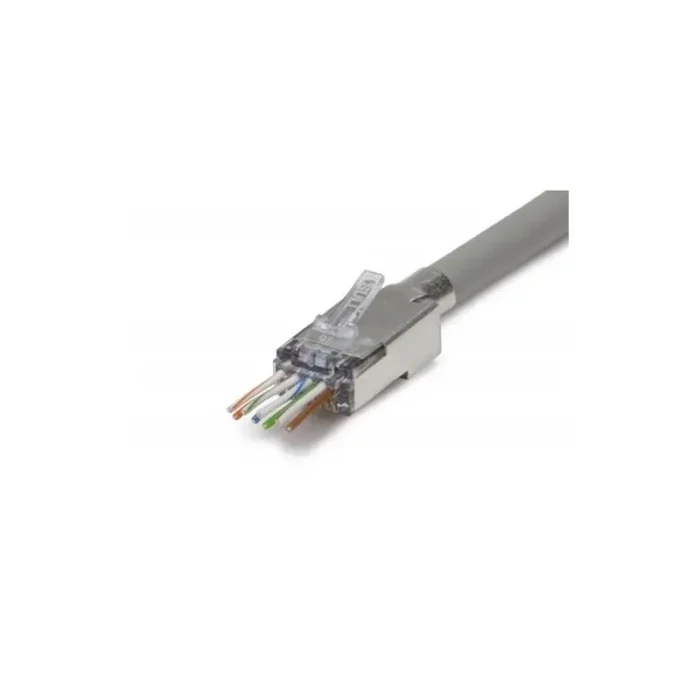

Platinum Tools 100027C ezEX48 Shielded CAT6A Connector, External Ground
Product Overview
The shielded, patented ezEX-RJ45 connector is built for larger diameter cables and conductors, ideal for Cat6A applications. Its integrated Hi-Lo stagger load bar isolates each conductor while the pass-through design allows easy visual confirmation of wiring order before termination. Designed for use with the EXO Crimp Frame® and EXO-EX Die™ (100061C), this one-piece connector eliminates the need for additional bars or liners. It supports conductor insulation diameters from 0.043” to 0.048” (1.09–1.22mm) and cable outer diameters up to 0.305” (7.75mm), accommodating solid or stranded 23-22 AWG wire. Featuring 50-micron gold-plated contacts, the connector is shielded, 6/6A compliant, and meets TAA, TIA, RoHS, UL, and FCC standards. Proudly made in the USA.
Main Features
Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Shielded 6/6A compliant
Insulation Diameter (Conductor) – Size range: 0.043″ – 0.048″ (1.09 -1.22mm)
Max Outer Diameter: 0.305″ (7.75mm)
Brand
Platinum Tools
Platinum Tools® is a trusted name in the world of networking, electrical, and telecommunication tools, known for its commitment to innovation, durability, and precision. Designed specifically for professional installers and contractors, Platinum Tools products are built to streamline workflows, improve connection reliability, and ensure code-compliant installations in the field.
With a full lineup of termination tools, cable testers, networking kits, crimpers, strippers, and connectors, Platinum Tools serves a wide range of industries—from structured cabling and low-voltage installations to security systems, audio/video wiring, and data center maintenance. Their signature products, such as the EZ-RJ45® termination system, offer time-saving, consistent performance with professional-grade results.
Whether you're running Ethernet, coax, fiber optic, or voice/data cable, Platinum Tools provides the right tools for the job—designed to withstand tough environments while maximizing accuracy and productivity.
As an authorized Platinum Tools distributor in Canada, we provide fast access to genuine tools and accessories, backed by expert advice, fast delivery, and competitive pricing.
