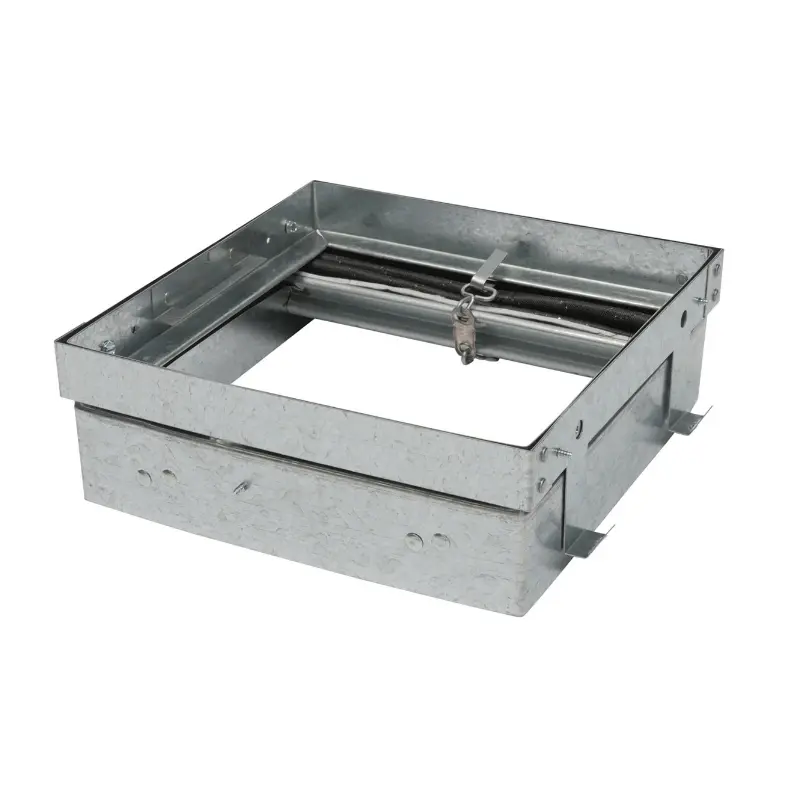

Panasonic PCRD05C5 FlexDamper All-In-One Radiation Damper
CAD$ 139.126
Available on backorder
Our folded, ceramic-curtain style damper meets both combustible and non-combustible UL assemblies. Supports two-stage construction: fan housing and damper sleeve during framing, and fan/motor/damper installation after finishes. The damper provides easy access to fan/motor/damper for hassle-free maintenance
Key Features
- The folded, ceramic-curtain style damper meets both combustible and non-combustible UL assemblies
- Allows for versatile, two-stage construction during framing and after finishes
- Easy access to fan, motor and damper for maintenance
- 5-Year Warranty
- UL approved for most Panasonic 10 1/4″ 50-150 CFM fans, fan/lights and fans with motion sensor; please see product submittal for approved model numbers
FlexDamper® Ceiling Radiation Damper
The FlexDamper® is an all-in-one, flexible radiation damper for combustible and non-combustible assemblies. Panasonic’s next generation FlexDamper addresses the change in UL and Warnock-Hersey’s standard testing protocol:
- UL555C, no longer automatically certifies both Combustible (Wood Joist/Wood Truss) and Non-Combustible (Steel Beams/Girders/Trusses) by meeting the 1 – 3 Hour 555C Rating
- UL and Warnock-Hersey (UL/WH) now require a separate Fire Chamber Fire Test to verify the efficacy of the Ventilation Fan/Radiation Damper in a Wood Truss Assembly
- FlexDamper meets UL Combustible Assembly Ratings for “Stick-Built”, low- or mid-rise, Multi-Family or Hotel/Lodging projects, and offers the best option for Architect/Engineer projects. It allows for two-stage project installation to protect fan/motor during drywall/interiors construction phase, and allows easy access or replacement of the fan/motor.
Approved for Combustible & Non-Combustible Assemblies:
Combustible: UL 555C listed for use in a one hour: fire-rated, wood truss floor/ceiling and roof/ceiling designs; UL 555C classification for the following one hour UL Wood Truss Assembly Ratings: L521, L528, L546, L558, L562, L574, L576, L581, L583, L585, M509; P522, P-533, P-538, P-545 and P-548.
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
RELATED PRODUCTS
Panasonic FV-0511VF1 WhisperFit DC Fan
| Airflow (CFM): |
80/110 |
|---|---|
| Amperage: |
0.18 (80 CFM), 0.23 (110 CFM) |
| Collar Material: |
Metal |
| Duct Size (in): |
3" & 4" Round |
| Energy Star Qualified: |
Yes |
| Grille Dimensions (in): |
13" x 13" |
| Grille Finish: |
White |
| Heater: |
No |
| Housing Height (in): |
5-5/8" |
| Housing Length (in): |
10-1/4" |
| Housing Width (in): |
10-1/4" |
| Hz: |
60 |
| Light: |
No |
| RPM: |
848 (80 CFM), 961 (110 CFM) |
| Sones: |
0.3 (80 CFM), 0.8 (110 CFM) |
| Speed: |
Multi-Speed |
| Volts (V): |
120 |
| Watts (W): |
21.1 (80 CFM), 26.5 (110 CFM) |
| UPC |
8.8517E+11 |
| Available Options |
Fan-only – FV0511VF1 |
Panasonic FV-0511VH1 WhisperWarm DC Ceiling Fan
| Model: |
FV-0511VH1 |
|---|---|
| Fan Type: |
Fan/Heater |
| Advanced Features: |
Pick-A-Flow™ Airflow Selector ,ECM motor with SmartFlow technology |
| Air Volume Supply (CFM): |
@0.1= 110 ,80 ,50 @0.25= 112 ,82 ,51 @0.375= 110 ,82 ,53 |
| Noise (Sones): |
@0.1"SP (50 ,80 ,110 CFM) = 0.7 ,<0.3 ,<0.3 @0.25"SP(50 ,80 ,110 CFM) = 1.5 ,1.0 ,08 |
| Power Consumption (Watts): |
@ 0.1"SP (50 ,80 ,110 CFM) = 12 ,7.7 ,4.7 @ 0.25"SP = 19 ,13.3 ,8.6 @0.375"SP 26.0 ,18.2 ,12.3 |
| Energy Efficiency (CFM/Watt): |
@ 0.1"SP (50 ,80 ,110 CFM) = 9.2 ,10.4 ,10.6 @ 0.25"SP = 5.9 ,6.2 ,5.9 @0.375"SP 4 ,4.5 ,4.3 |
| Speed (RPM): |
@ 0.1"SP (50 ,80 ,110 CFM) = 861 ,736 ,638 @ 0.25"SP = 1090 ,1008 ,930 @0.375"SP 1249 ,1173 ,1112 |
| Current (Amps): |
@ 0.1"SP (50 ,80 ,110 CFM) = 0.24 ,0.16 ,0.10 @ 0.25"SP = 0.37 ,0.26 ,0.18 @0.375"SP 0.49 ,0.35 ,0.25 |
| MAX. Current (Amps): |
120/60 |
| Motor Type (AC/DC): |
ECM (DC) |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protector: |
Yes |
| Blower Wheel Type: |
Sirocco |
| ENERGY STAR® Certified: |
No |
| Duct Diameter: |
4" or 6" (inches) |
| Mounting Opening (in sq.): |
10-1/4" x 16" |
| Grille Size (in sq.): |
13-1/4" x 18-1/4" |
| Gross Weight (lbs): |
16.3 |
| UL tub/Shower Enclosure: |
No |
| Wall Installation: |
No |
| California Title 24 Complaint (LED): |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Available Options |
Fan-only – FV0511VH1 |
Panasonic FV-0511VQC1 WhisperSense DC Ventilation Fan
| Model: |
FV-0511VQC1 |
|---|---|
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Air Volume (CFM): |
110 ,111 ,80 ,83 ,50 ,53 |
| Noise (Sones): |
<0.3 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.6 ,16.4 ,5.9 ,10.8 ,4.0 ,7.2 |
| Energy Efficiency (CFM/Watt): |
10.6 ,6.9 ,13.6 ,7.7 ,12.5 ,7.4 |
| Speed (RPM): |
1342 1480 ,957 ,1239 ,821 ,1172 ,756 ,1093 |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.18 ,0.07 ,0.13 |
| Power Rating (V/Hz): |
0.27 |
| Motor Type (AC/DC): |
DC |
| Duct Diameter: |
4" or 6" |
| Mounting Opening (in sq.): |
2010-01-02 |
| Grille Size (in sq.): |
13 |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protection: |
Yes |
| Blower Wheel Type: |
Sirocco |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| California Title 24 Compliant: |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Gross Weight (lbs): |
11.2 |
| ENERGY STAR Qualified: |
Yes |
| Available Options |
Fan-only – FV0511VQC1 |
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack)
| Airflow (CFM): |
70 |
|---|---|
| Duct Size (in) |
4" |
| Energy Efficiency (CFM/W): |
70 @ 0.1" SP = 3.5 CFM/W, 90 @ 0.1" SP = 3.8 CFM/W |
| Energy Star Qualified: |
Yes |
| Grill Dimensions (in): |
9-1/2" |
| Gross Weight (lbs): |
12.6 |
| Height (in): |
20-1/2" |
| Length (in): |
8-2/3" |
| Motor Type: |
AC |
| Mounting Opening (in.sq): |
7-7/8" |
| Power Consumption (W): |
70 @ 0.1" SP = 20.0W, 90 @ 0.1" SP = 24.0W, |
| Power Rating (V/Hz): |
120/60 |
| Sones: |
0.4 |
| UL Tub/Shower Enclosure: |
Yes |
| Volts (V): |
120 |
| Width (in): |
10-1/4" |
| UPC: |
8.8517E+11 |
