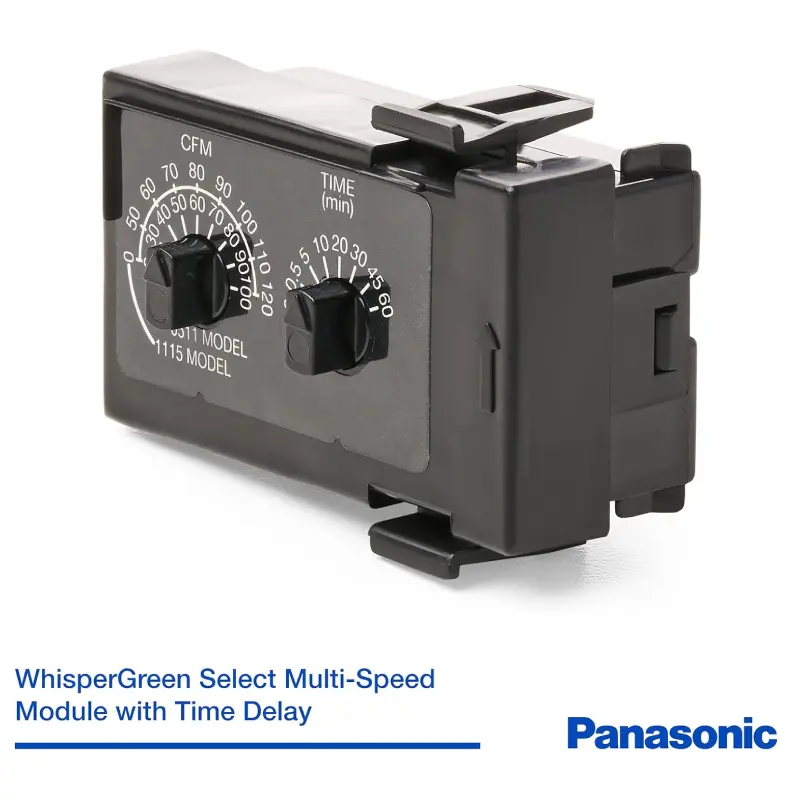

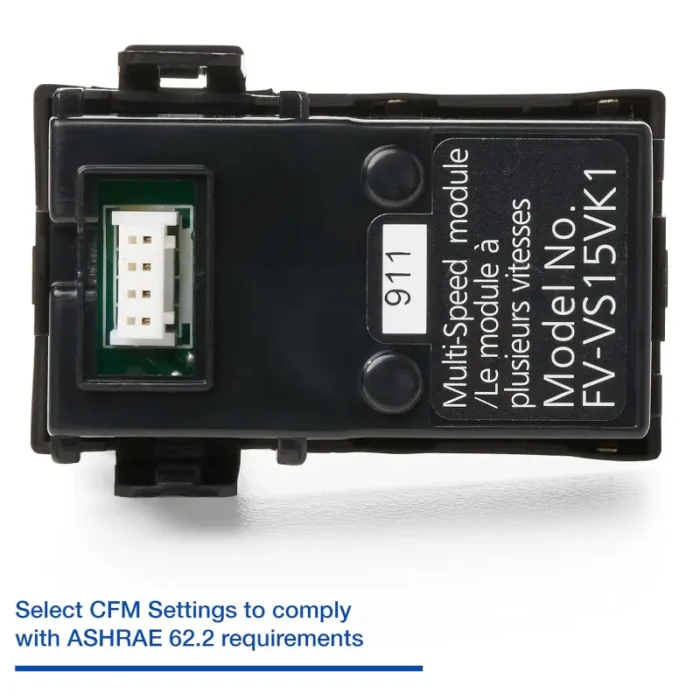

Panasonic FV-VS15VK1 WhisperGreen Select Multi-Speed Module
$57.729
2 in stock (can be backordered)
The WhisperGreen® Select Multi-SpeedModule with Time Delay* allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements. The fan runs continuously at a pre-set lower level (0, 30-100 or 0, 50-120 CFM, in 10 CFM increments), then elevates to a maximum level of operation (50-80-110 or 110-130-150 CFM) when the wall switch is turned on, or when the Motion Sensor module is activated. A High/Low delay timer returns the fan to the pre-set CFM level after a period of time set by the user. *Applies to both the Pre-Installed Multi-Speed Module with Time Delay, as well as the FV-VS15VK1 Multi-Speed with Time Delay Plug ‘N Play module.
| Advanced Features: |
Multi-Speed. Delay Timer. |
|---|---|
| Construction Type: |
single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Industry: |
Residential. Light Commercial. |
| Product Family Name: |
WhisperGreen Select Fan. WhisperGreen Select Fan/Light. |
| Available Options |
Multi-Speed Module – FVVS15VK1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
