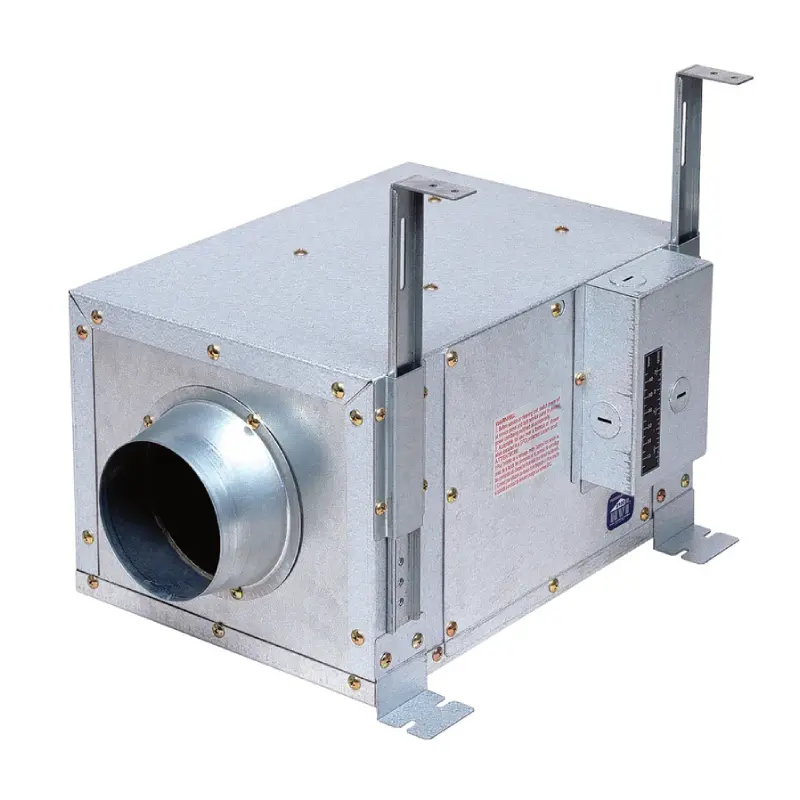

Panasonic FV-40NLF1 WhisperLine 440 CFM In-Line Bathroom Fan
CAD$ 353.375
Available on backorder
Panasonic FV-40NLF1 WhisperLine 440 CFM In-Line Bathroom Fan WhisperLine 440 CFM remote mount in-line fan for single or multiple inlets.
KEY FEATURES
- Insulated housing prevents condensation and noise
- Tapered 4” duct adapter provides easy connection
- Features five positions for installation

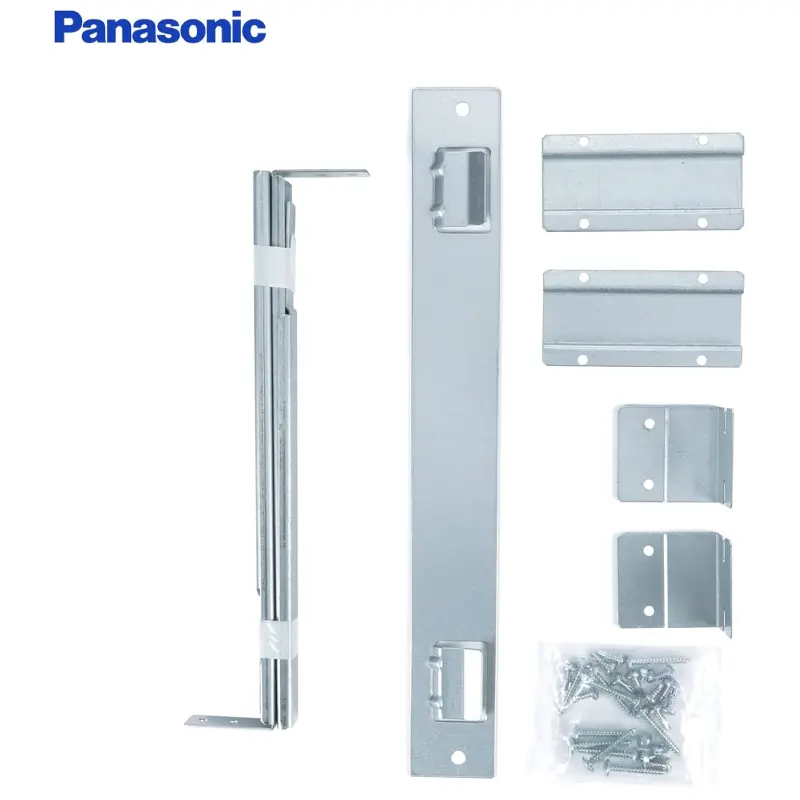

- Joist or truss attachment brackets and suspension brackets included
- Can be used to comply with the latest codes and standards
WhisperLine remote mount, in-line ventilation solution
Panasonic WhisperLine® fans are designed for multiple-task ventilation. This means that you can ventilate multiple areas or multiple rooms with just one fan. WhisperLine fans are a great way to remotely mount a fan and run single or multiple inlets for over the shower, tub, toilet and/or vanity in a single bathroom. WhisperLine features a blower wheel that’s designed to draw air in both sides allowing more area for air to enter the wheel. This versatile product can be installed in five different positions. Joist or truss as well as suspension brackets are included.
Multitasking ventilation fan
This remote-mounted fan can exhaust stale, humid, or contaminated air from multiple points of a room or multiple rooms. For example, you can place inlets over the shower, tub, toilet and vanity in a single bathroom, or in a bathroom, laundry, and craft room to exhaust with a single remote-mounted WhisperLine fan.
Fine-tune the airflow for each inlet
The low profile grilles are adjustable so you can balance the airflow between the nearest and furthest inlets to create even air circulation.
Installation flexibility
This in-line fan can be installed in five different positions between joists and trusses. Additional suspension brackets make your installation as easy as possible.
ENERGY STAR® Certified for energy savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
| Model: |
FV-40NLF1 |
|---|---|
| Advanced Features: |
Single Speed |
| Air Volume Exhaust (CFM): |
440 @ 0.2" SP ,421 @ 0.3" SP ,407 @ 0.4" SP |
| Master Carton Dimensions (HxWxD): |
14-11/16 x 20-3/8 x 11-3/8 |
| CFM: |
Greater than 150 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Construction Type: |
Single Family/Manufactured Housing. Renovation/Remodeling. |
| Current (Amps): |
1.10A |
| Ventilation Design Approach: |
Spot Ventilation. Continuous Ventilation. |
| Duct Diameter: |
8" |
| Energy Efficiency (CFM/Watt): |
3.2 CFM/W |
| ENERGY STAR® Certified: |
No |
| Fan Type: |
Fan Only |
| Industry: |
Residential. Light Commercial. |
| Motor Type (AC/DC): |
AC |
| Mounting Options: |
Ceiling Mount |
| Power Consumption (Watts): |
440 @ 0.2" SP = 136W ,421 @ 0.3" SP = 132W ,407 @ 0.4" SP = 130W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperLine |
| Radiation Damper Available: |
No |
| Warranty: |
3 Year on Parts |
| Master Carton Gross Weight (lbs.): |
19.1 |
| Available CFM Options |
440 CFM – FV40NLF1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-40NLF1 WhisperLine 440 CFM In-Line Bathroom Fan - Installation Instructions
Panasonic FV-40NLF1 WhisperLine 440 CFM In-Line Bathroom Fan - Sell Sheet
Panasonic FV-40NLF1 WhisperLine 440 CFM In-Line Bathroom Fan - Architectural Specification
Panasonic FV-40NLF1 WhisperLine 440 CFM In-Line Bathroom Fan - Specification Submittal Data
