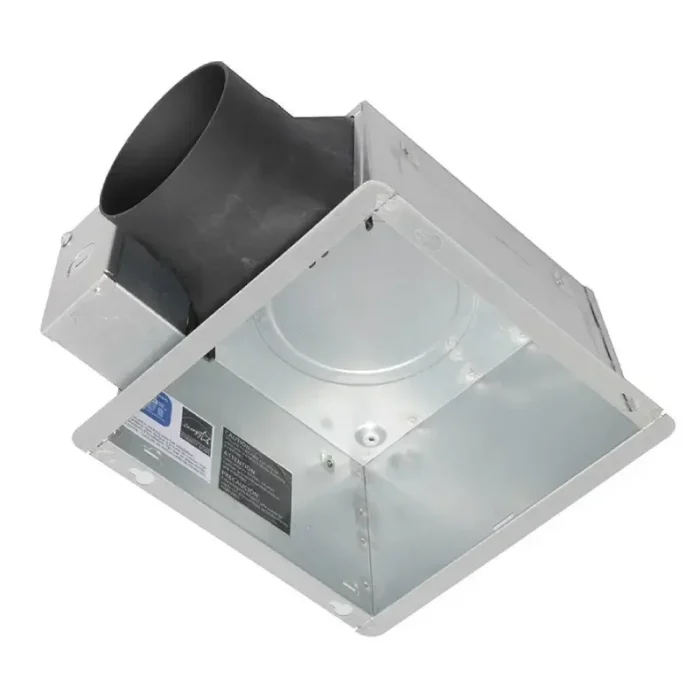

Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack)
CAD$ 111.312
1 in stock (can be backordered)
PRODUCT DETAILS
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack)is a 70/90 CFM fan that delivers strong performance and peace of mind during verification testing. Two-speed selector (70/90 CFM) spot ventilation solution. Ideal for, new residential construction, EcoVent can be used to comply with the latest codes and standards. Available in contractor packs only.
KEY FEATURES
- Ideal for new residential construction (High Performance / ENERGY STAR® Single Family Production Builders and Manufactured Housing).

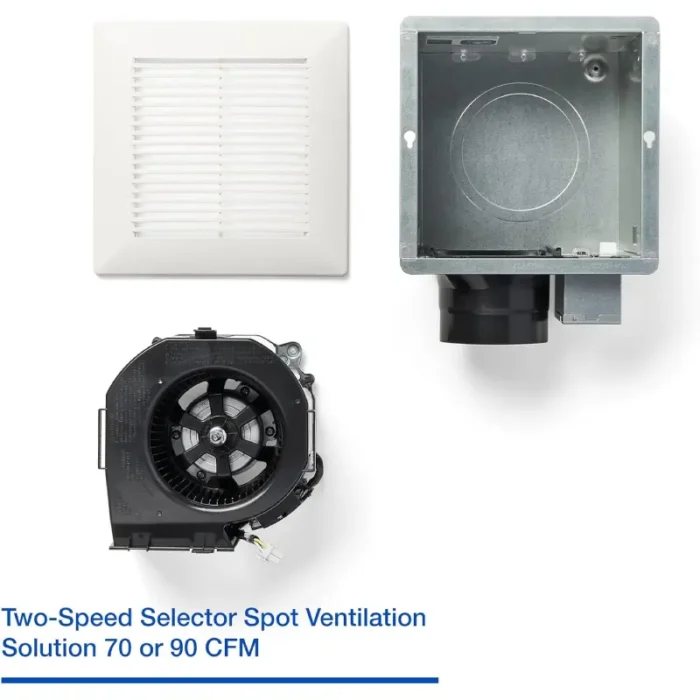

- Two-speed selector (70/90 CFM) spot ventilation solution
- Delivers a True Flow rating of 56 CFM at 0.375″ static pressure (when set at the 90 CFM setting

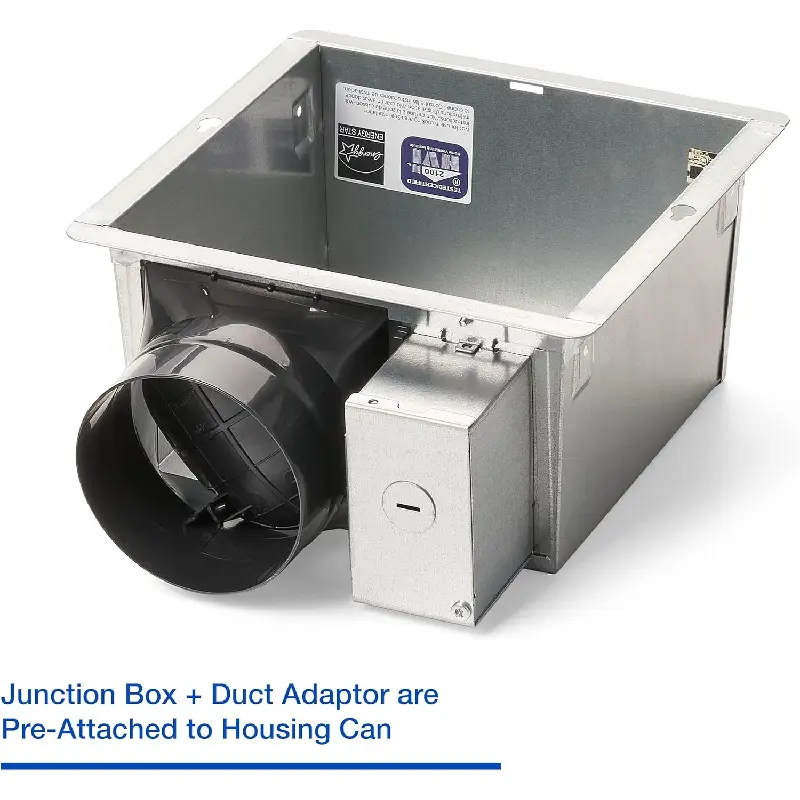

- Junction box and duct adaptor comes pre-attached to the housing can, saving you assembly time and money
- Grille design complements the aesthetics of your bathroom, powder room or laundry room
For house builders searching for an ENERGY STAR® rated, cost-effective fan that not only offers strong performance but also peace of mind during verification testing, EcoVentTM with Veri-BoostTM is the ideal choice. Decide on a strong, environmentally responsible system that offers the installed performance you require from a supplier that sets the bar for quality and affordability.
Before certifying that installed ventilation fans comply with ASHRAE 62.2, ENERGY STAR 3.0 for Homes, LEED for Homes, CA Title 24, CalGreen, and the majority of Green Building programmes, raters are now checking the airflow of the fans. You need to save yourself the headache of having to tear out a subpar fan and replace it because so many fans on the market fail to produce planned airflow. Integral Veri-BoostTM switch of EcoVent gives the fan a 20 CFM boost, ensuring Ventilation Verification Assurance: 50 CFM Installed Performance and that the fan satisfies the stated airflow requirements. To comply with code, the CFM output must be increased. To start, simply flick the Veri-BoostTM Switch.

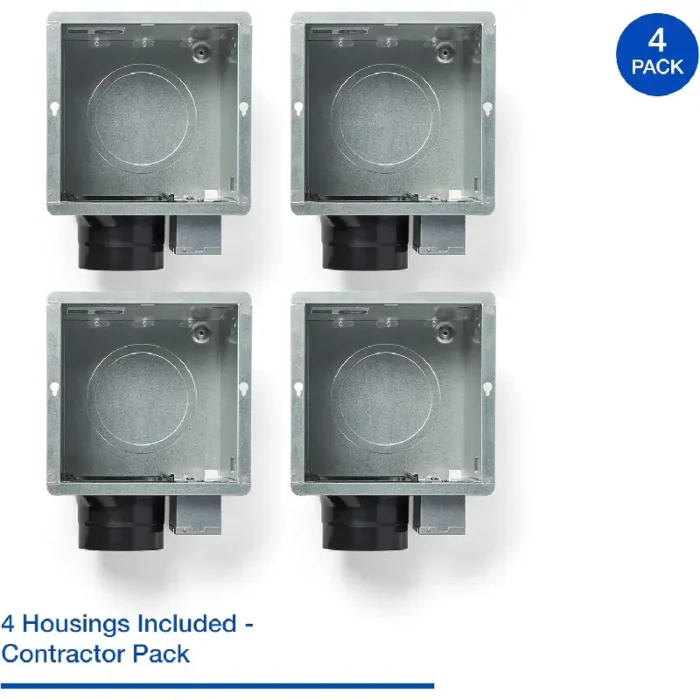

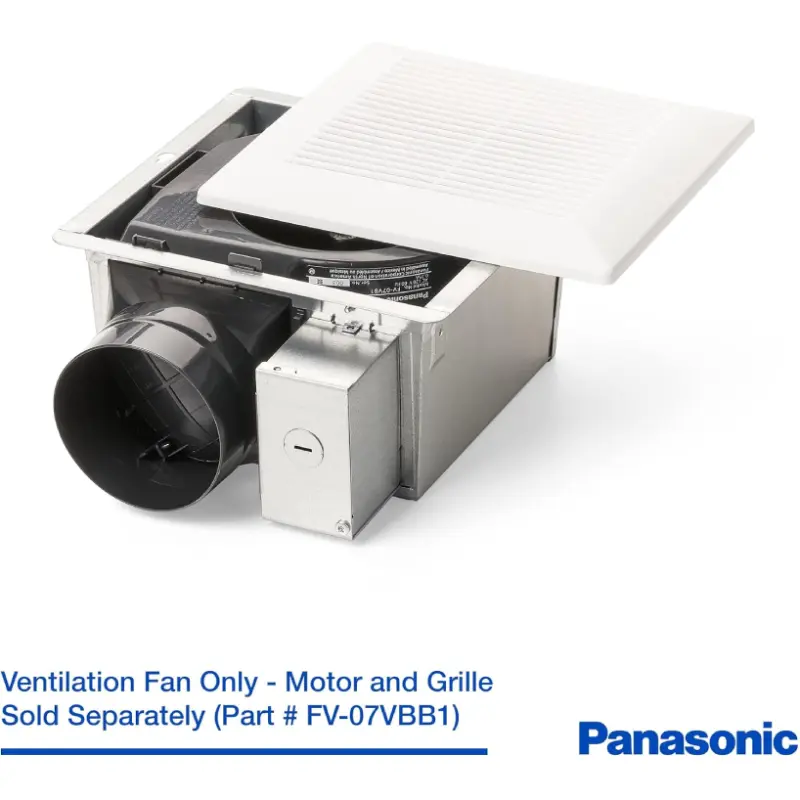

For new home construction, consider the Universal-Can (U-Can) Contractor Pack Panasonic FV-07VBA1 + FV-07VBB1 EcoVent
70 CFM, economical 1.1 sones at 0.1″ w.g. for the ENERGY STAR solution (56 CFM/1.4 sones at 0.25″ w.g.)
A special inbuilt switch called Veri-BoostTM makes sure the fan produces the proper amount of airflow.
Assurance of Ventilation Verification: 50 CFM Installed Capability
The elegance of your bathroom, powder room, or laundry room are enhanced by the little grille design.
Separate packaging of the housing and motor/grille lowers the possibility of onsite loss or damage of the parts. 4″ duct adaptor
When utilised with a GFCI-protected circuit, the built-in metal flange blocks penetrations through drywall to act as an air barrier and helps to reduce leakage in the building envelope during blower door testing.
ASHRAE 62.2, LEED, and ENERGY STAR for Homes 3.0 compliance possible; three-year warranty
| Airflow (CFM): |
70 |
|---|---|
| Duct Size (in) |
4" |
| Energy Efficiency (CFM/W): |
70 @ 0.1" SP = 3.5 CFM/W, 90 @ 0.1" SP = 3.8 CFM/W |
| Energy Star Qualified: |
Yes |
| Grill Dimensions (in): |
9-1/2" |
| Gross Weight (lbs): |
12.6 |
| Height (in): |
20-1/2" |
| Length (in): |
8-2/3" |
| Motor Type: |
AC |
| Mounting Opening (in.sq): |
7-7/8" |
| Power Consumption (W): |
70 @ 0.1" SP = 20.0W, 90 @ 0.1" SP = 24.0W, |
| Power Rating (V/Hz): |
120/60 |
| Sones: |
0.4 |
| UL Tub/Shower Enclosure: |
Yes |
| Volts (V): |
120 |
| Width (in): |
10-1/4" |
| UPC: |
8.8517E+11 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack) - Architectural Specification
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack) - Installation Instructions
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack) - Quick Installation Instructions
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack) - Sell Sheet
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack) - Service Manual
Panasonic FV-07VBA1 Universal Housing EcoVent (4 Pack) - Submittal Sheet
