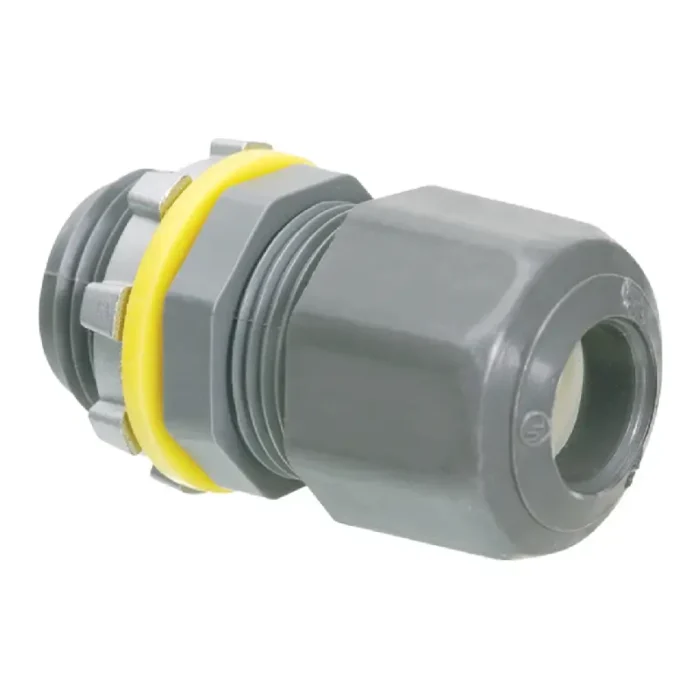

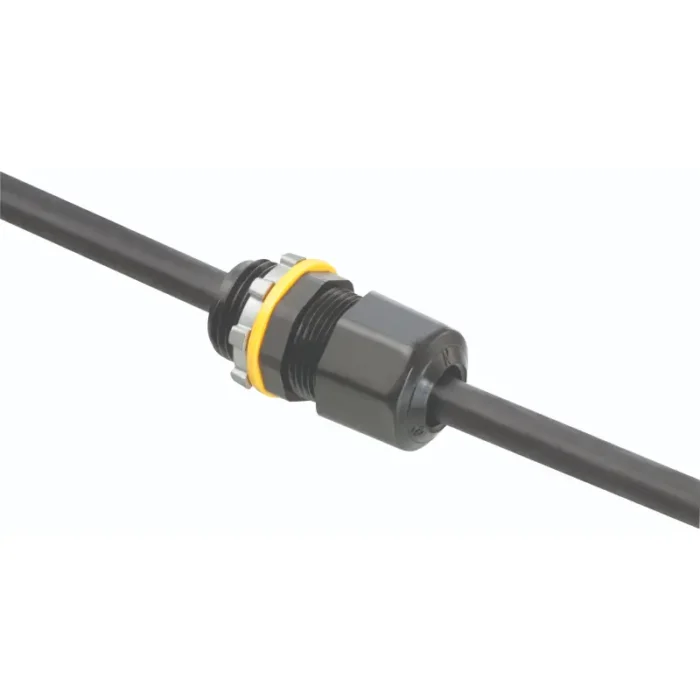

Arlington LPCG50 Low-Profile Non-Metallic Connector
CAD$ 4.992
45 in stock (can be backordered)
Low-Profile Strain Relief Non-Metallic Cord Connector. Low-profile non-metallic, liquid-tight, oil-tight, and gray strain relief cord connector furnished with a sealing ring and locknut. Supports .200 to .485 cord range with a 1/2 inch trade size.
In addition to STEEL and STAINLESS STEEL Arlington offers low profile, strain-relief cord grips in zinc and non-metallic styles. They also offer the largest cord range in the industry at the lowest cost, so you’ll save on inventory.
- Superior pullout resistance Nylon gripper squeezes onto cord as nut is tightened
- Sealing ring assures liquid- and oil-tight seal when installing in non-threaded openings
- UL/CSA Listed
| Weight: |
0.038 lbs/each |
|---|---|
| Height: |
0.978" |
| Width: |
0.978" |
| Color: |
Gray |
| Additional Color Options: |
Black – LPCG50BL ,White – LPCG50W |
| Material(s): |
Nylon (Body) Santoprene® (Grommet) Polyethylene (Sealing Ring) Zinc (Locknut) |
| Cord Range: |
0.200" – 0.485" |
| Liquid Tight: |
Yes |
| Oil Tight: |
Yes |
| Trade Size: |
1/2" |
| Available Size |
1/2" – LPCG50 |
Brand
Arlington Industries
Arlington Industries® is a leading U.S. manufacturer of high-quality electrical fittings, cable management products, and low-voltage mounting solutions. Known for innovation and code-compliant designs, Arlington has been serving electricians, contractors, and distributors for over 70 years.
With a commitment to quality, Arlington offers a wide range of UL-listed products for residential, commercial, and industrial electrical installations. Their product line includes steel and non-metallic cable connectors, electrical boxes and enclosures, floor box systems, low-voltage brackets, wall plates, and fittings for flexible conduit, NM cable, and MC cable. Arlington’s patented designs are engineered to help professionals save time, reduce labor costs, and meet NEC and CSA standards with ease.
Whether you're wiring a home, outfitting a data center, or upgrading a commercial facility, Arlington delivers trusted and efficient solutions for modern electrical needs. As a recognized distributor of Arlington products in Canada, we offer a full selection of genuine fittings and accessories, ready to ship nationwide with expert support and competitive pricing.
RELATED PRODUCTS
Arlington 8412 Connector for Larger MC Cable
Arlington 930 AnyBODY Metallic LB Conduit Body – 1/2″
| Weight: |
0.580 lbs/each |
|---|---|
| Height: |
5.110" |
| Width: |
2.520" |
| Color: |
Silver |
| Material(s): |
Copper-Free Aluminum |
| Conduit Type: |
Threaded IMC or Rigid and Set-Screw EMT |
| NEC Compliance: |
Section 314.16 (c) (2) of the 2014 NEC |
| Trade Size: |
1/2" |
| Volume: |
4.80 Cubic Inches |
| Comes With: |
(3)Threaded Flanges (4)Cover Plates (1)Aluminum Body (1)Access Cover Gasket (1)Access Cover |
| Available Size |
1/2" – 930 |

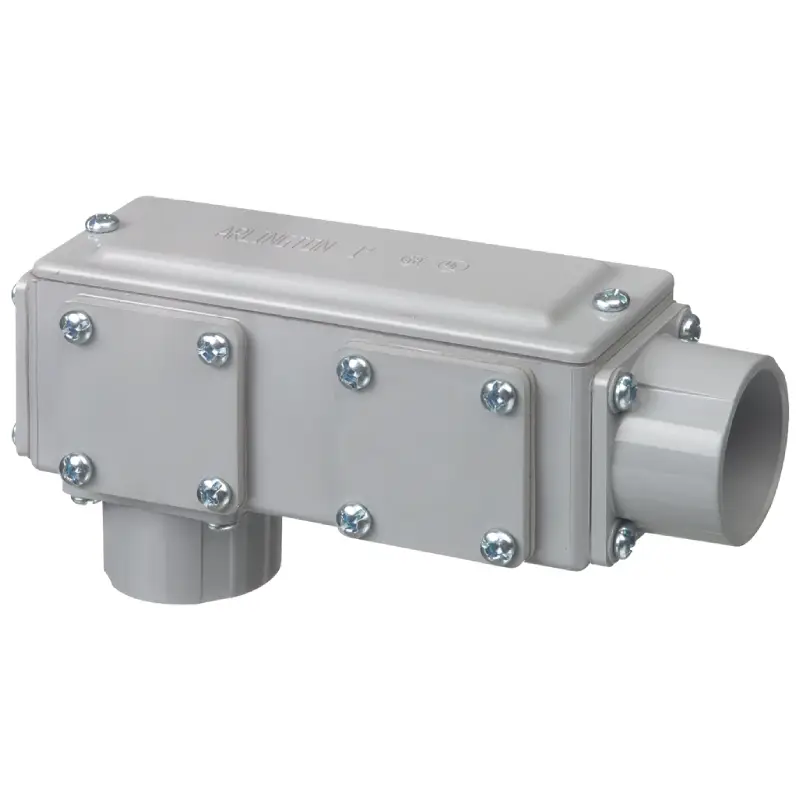

Arlington 930NM AnyBODY Non-Metallic Conduit Body – 1/2″
