Arlington FSC3212R Small Diameter Sconce Boxes for Retrofit Construction
$9.025
1 in stock (can be backordered)
Arlington FSC3212R Small Diameter Sconce Boxes for Retrofit Construction

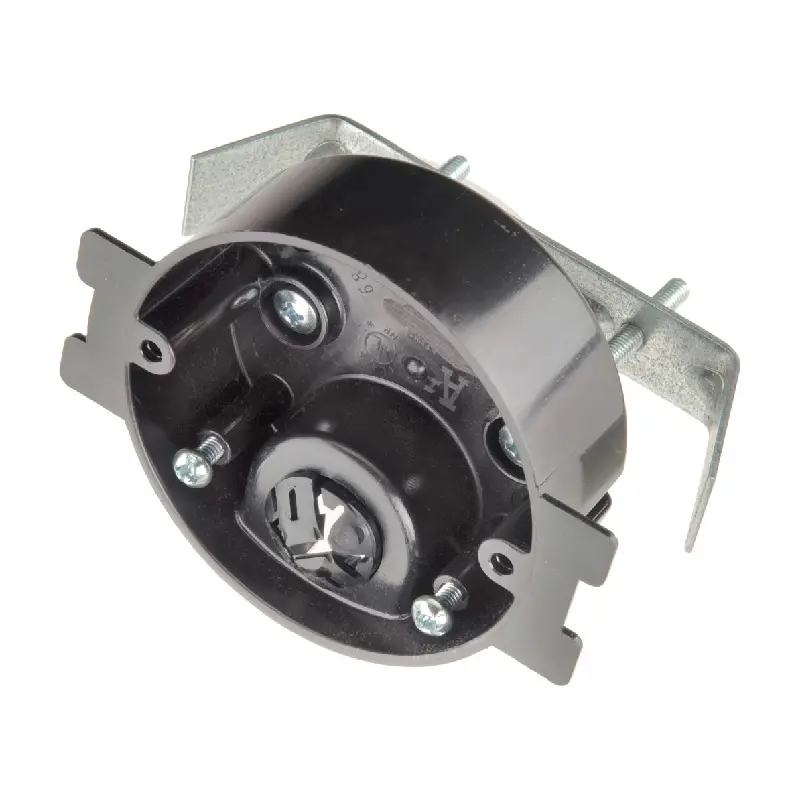

The Arlington FSC3212R is a small-diameter sconce/fixture box tailored for retrofit installations. Its compact 3¼″ diameter and 6.8 cubic-inch interior capacity make it ideal for mounting wall sconces or small light fixtures up to 3 lbs on finished drywall or paneling.
Key Features:
Slim design: 3¼″ diameter for minimal visibility behind light fixtures
Box capacity: 6.8 cu in—enough for wiring and connectors
Ready-to-install: Includes captive bracket screws and NM94 cable connector
Self-contained: No loose parts to misplace

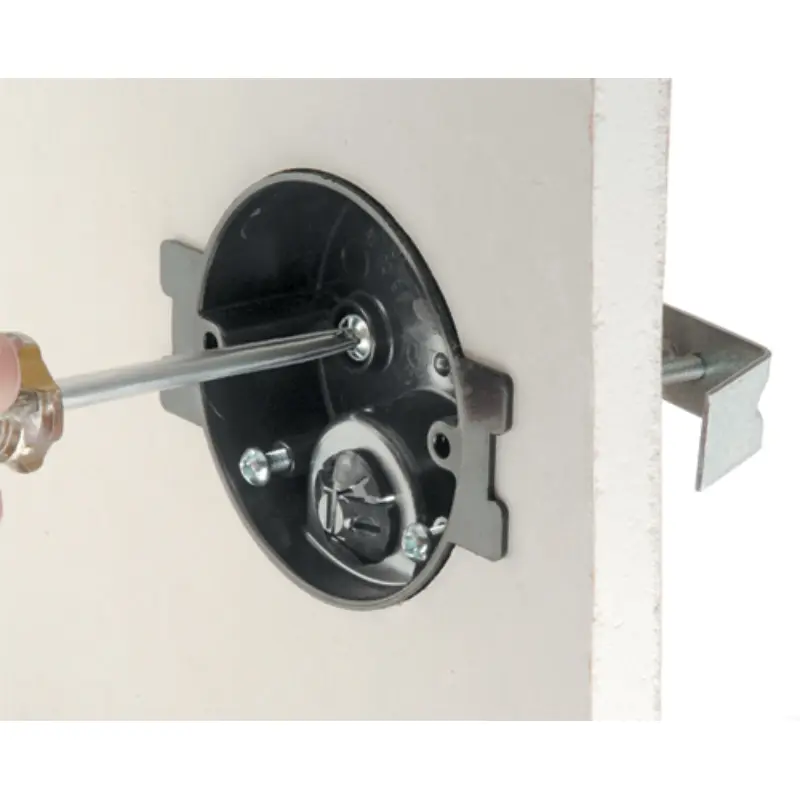

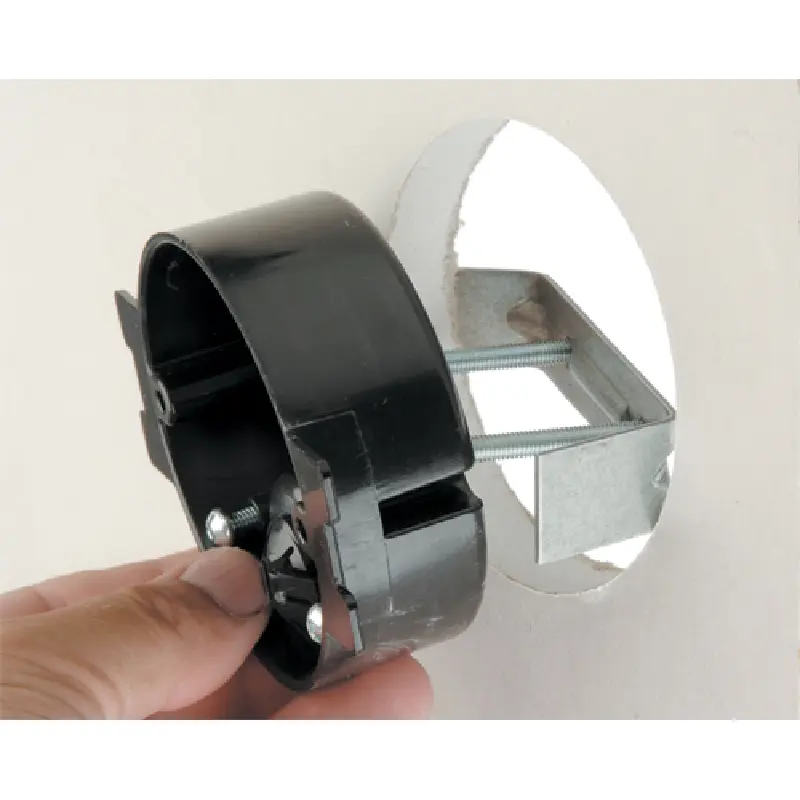

1¼″ depth with speed-clamp installation—no tools required
Supports up to 3 lb fixtures with most canopies covering fully
Color & Material: Black plastic, UL-listed
Brand
Arlington Industries
Arlington Industries® is a leading U.S. manufacturer of high-quality electrical fittings, cable management products, and low-voltage mounting solutions. Known for innovation and code-compliant designs, Arlington has been serving electricians, contractors, and distributors for over 70 years.
With a commitment to quality, Arlington offers a wide range of UL-listed products for residential, commercial, and industrial electrical installations. Their product line includes steel and non-metallic cable connectors, electrical boxes and enclosures, floor box systems, low-voltage brackets, wall plates, and fittings for flexible conduit, NM cable, and MC cable. Arlington’s patented designs are engineered to help professionals save time, reduce labor costs, and meet NEC and CSA standards with ease.
Whether you're wiring a home, outfitting a data center, or upgrading a commercial facility, Arlington delivers trusted and efficient solutions for modern electrical needs. As a recognized distributor of Arlington products in Canada, we offer a full selection of genuine fittings and accessories, ready to ship nationwide with expert support and competitive pricing.
