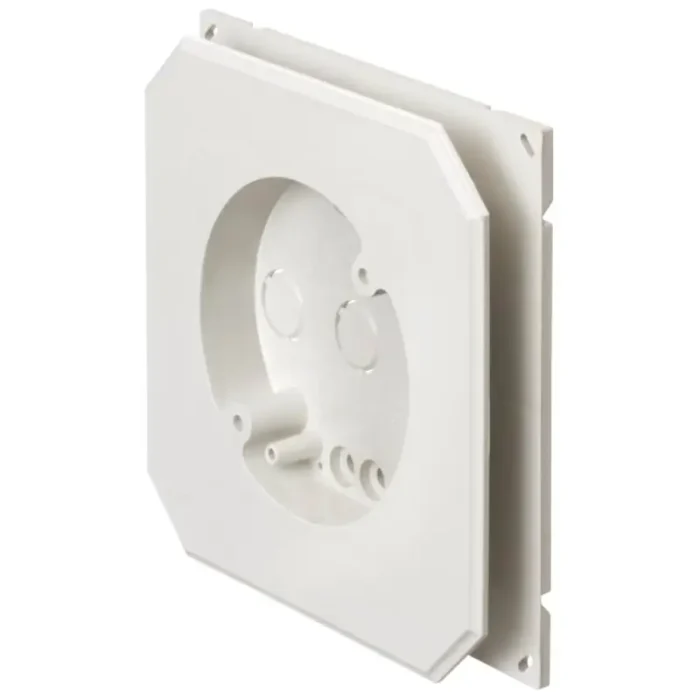

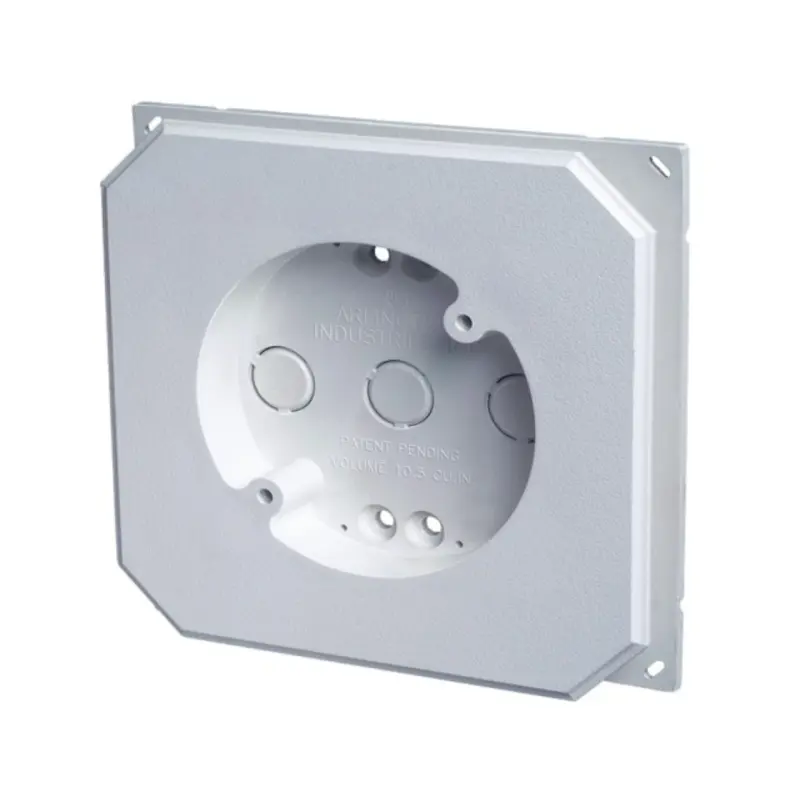

Arlington 8141FGC Siding Mounting Block with Grounding Clip
$16.162
11 in stock (can be backordered)
Siding Mounting Block. Siding Mounting Block. One piece design. Built in 10.5 cubic inch box. 1″ J-channel. NM cable connector Included. Textured paintable surface.
Mounting block with built in electrical box for smooth vertical mounting of light fixtures on all siding types. Paintable. UV rated plastic for long outdoor life.
FEATURES AND BENEFITS
- One piece design
- Textured, paintable surface
- NM cable connector included
- Installs before or after siding is installed. Remove break away flanges for installation on previously sided structures.
| Weight: |
0.718 lbs/each |
|---|---|
| Height: |
6.652" |
| Width: |
6.652" |
| Color: |
White |
| Material(s): |
UV-Rated Plastic |
| Paintable: |
Yes |
| Siding Type: |
All Types |
| Trade Size: |
10.5 cubic inches |
| Comes With: |
(1)NM94 Cable Connector (1)Box |
Brand
Arlington Industries
Arlington Industries® is a leading U.S. manufacturer of high-quality electrical fittings, cable management products, and low-voltage mounting solutions. Known for innovation and code-compliant designs, Arlington has been serving electricians, contractors, and distributors for over 70 years.
With a commitment to quality, Arlington offers a wide range of UL-listed products for residential, commercial, and industrial electrical installations. Their product line includes steel and non-metallic cable connectors, electrical boxes and enclosures, floor box systems, low-voltage brackets, wall plates, and fittings for flexible conduit, NM cable, and MC cable. Arlington’s patented designs are engineered to help professionals save time, reduce labor costs, and meet NEC and CSA standards with ease.
Whether you're wiring a home, outfitting a data center, or upgrading a commercial facility, Arlington delivers trusted and efficient solutions for modern electrical needs. As a recognized distributor of Arlington products in Canada, we offer a full selection of genuine fittings and accessories, ready to ship nationwide with expert support and competitive pricing.
RELATED PRODUCTS
Arlington LV2 Low Voltage Mounting Bracket
Arlington LVS2 Screw On Low Voltage Mounting Bracket
Arlington NM96 Non-Metallic Push-In Connector
Panasonic FV-0510VS1 WhisperValue DC Exhaust Fan 50/80/100 CFM
| Model: |
FV-0510VS1 |
|---|---|
| Air Volume Exhaust (CFM): |
50 @ 0.1" SP ,53 @ 0.25" SP ,80 @ 0.1" SP ,81 @ 0.25" SP ,100 @ 0.1" SP ,100 @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
6.89 x 14.25 x 16.73 |
| CFM: |
50-70. 80-110 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Construction Type: |
Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling. |
| Current (Amps): |
50 CFM= .09A ,80 CFM= .13A ,100 CFM=.20A |
| Ventilation Design Approach: |
Ventilation Design Approach |
| Duct Diameter: |
4" Oval |
| Energy Efficiency (CFM/Watt): |
50 CFM= 12.8 CFM/W ,80 CFM=11.4 CFM/W ,100 CFM = 9.2 CFM/W |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
13 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling Mount ,Wall Mount (UL) ,Tub/Shower (UL) |
| Motor Type (AC/DC): |
DC |
| Mounting Opening (in sq.): |
2010-01-02 |
| Mounting Options: |
Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL) |
| Noise (Sones): |
50 @ 0.1" SP = < 0.3 ,etc. |
| Power Consumption (Watts): |
50 CFM= 4.4W ,80 CFM= 7.2W ,100 CFM=11.1W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperValue DC |
| Radiation Damper Available: |
Yes |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
6 year DC Motor ,3 Year Parts |
| Master Carton Gross Weight (lbs.): |
8.82 |
| Available Options |
Fan-only – FV0510VS1 |
Panasonic FV-0511VQ1 WhisperCeiling DC Ventilation Fan
| Model: |
FV-0511VQ1 |
|---|---|
| Advanced Features: |
Single Speed |
| Air Volume (CFM): |
110 ,111 ,80 ,83 ,50 ,53 |
| Blower Wheel Type: |
Sirocco |
| California Title 24 Compliant: |
Yes |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.18 ,0.07 ,0.13 |
| Duct Diameter: |
4" or 6" |
| Energy Efficiency (CFM/Watt): |
10.6 ,6.9 ,13.6 ,7.7 ,12.5 ,7.4 |
| ENERGY STAR® Certified: |
Yes |
| Grille Size (in sq.): |
13 |
| Gross Weight (lbs): |
11 |
| MAX. Current (Amps): |
0.27 |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Motor Type (AC/DC): |
DC |
| Mounting Opening (in sq.): |
2010-01-02 |
| Noise (Sones): |
<0.3 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.6 ,16.4 ,5.9 ,10.8 ,4.0 ,7.2 |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperCeiling DC |
| Speed (RPM): |
1342 1480 ,1016 ,1268 ,867 ,1185 ,768 ,1097 |
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Thermal Fuse Protection: |
Yes |
| Type of Motor Bearing: |
Ball |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| Available Options |
Fan-only – FV0511VQ1 |
