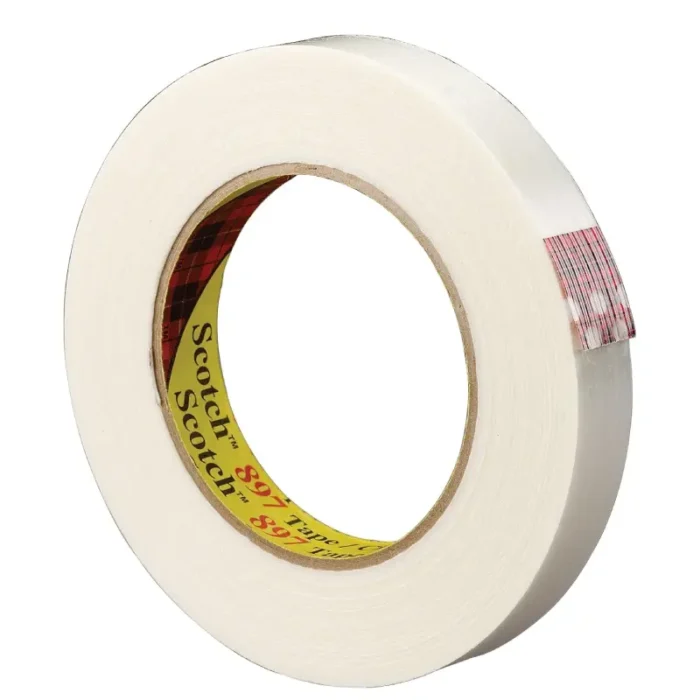

3M 897-18X55 Filament Tape, 897, clear, 0.70″ x 60.14 yd
$9.834
45 in stock (can be backordered)
The Scotch® Filament Tape 897 is a medium strength, general purpose, clear fibreglass-reinforced tape with a synthetic rubber resin adhesive ideal for medium-duty strapping, bundling, and reinforcing.
The Scotch® Filament Tape 897 provides good adhesion to most surfaces, including a variety of plastics, carpets, natural fibres, and metals.
Highlights
- Offers excellent resistance to nicks and abrasion
- Good shear strength to fibreboard surfaces
- Polypropylene backing, reinforced with glass yarn filaments, with a synthetic rubber resin adhesive
- Tensile strength 170 lbs/in (2977 N/cm) width
| Adhesive Type: |
Synthetic Rubber |
|---|---|
| Backing (Carrier) Material: |
Polypropylene Film |
| Brands: |
Scotch |
| Core Size (Imperial): |
3 none |
| Core Size (metric): |
76 mm |
| Elongation at Break: |
4% |
| Industries: |
General Industrial, Metalworking |
| Performance Level: |
Performance |
| Product Colour: |
Transparent |
| Smallest Saleable Unit: |
Roll |
| Tensile Strength (Imperial): |
170.0 lb/in |
| Tensile Strength (metric): |
2977 N/100mm |
| Total Tape Thickness without Liner (Imperial): |
5 Milli-inch (mil) |
| Total Tape Thickness without Liner (metric): |
0.127 mm |
| Units per Case: |
48.0 Roll |
| Overall Length (Imperial): |
60.14 yd |
| Overall Length (Metric): |
55 m |
| Overall Width (Imperial): |
0.7 in |
| Overall Width (Metric): |
18 mm |
Brand
3M
