energy recovery ventilator, or ERV. An ERV is a piece of energy-efficient ventilation equipment that simultaneously ventilates part of the home’s “bad” or stale air while bringing in ne

w air. An especially created capillary plate divides the supply and exhaust airstreams, enhancing the enthalpic heat transfer process. This transfer enables us to maintain humidity indoors during dry weather or to reroute extra moisture back to the exhaust airstream during humid weather. We also release surplus heat or recapture it. Last but not least, the ERV contributes to this process by cleaning the air as it filters provided air. We must understand that when humidity and temperature variations are too great, our HVAC systems cannot keep up. The ERV aids in balancing these extremes.

Whole House Energy Recovery Ventilators (ERVs) Explained

The fundamental ventilation purpose of an ERV is to maintain “predictable” and “uneventful” air flows in our systems. Toxins are diluted and indoor air quality is improved by bringing in fresh air, which is then evacuated through an exhaust fan to maintain system balance. The concept of maintaining regulated air pressure inside the house is crucial and advantageous. More builders and residents should be educated about this technology as it transitions from a cutting-edge building practice to a code and healthy home requirement, according to the building industry.

Our HVAC systems can operate more efficiently by moderating or tempering the air. Consider this: Would we want to carelessly vent away humid air in the winter only to bring in drier, colder air that requires heating and humidification? We can conserve a significant amount of energy by recovering heat and moisture. To catch or expel the heat and humidity that aren’t ideal, it’s advisable for both builders and occupants to balance supply and exhaust air flows.

The debate about upfront costs and ERV ROI is interesting, but it depends on how ROI is defined. Although ERVs technically consume energy, they improve the efficiency of the rest of our systems. Extremes in temperature and humidity are uncomfortable for most people, and if they are not effectively controlled, we run the danger of numerous physical and financial issues. Mould, mildew, and pests pose a risk to our property, and poor indoor air quality puts individuals at risk for respiratory and other disorders.

Panasonic’s Intelli-Balance 200

The Intelli-Balance 200 is a 200 cfm application and a member of the same product family as the WhisperComfort model, which operates at 20–40 cfm and the Intelli-Balance 100, which operates at 100 cfm. Up to a 7500 sf home can be serviced by the Intelli-Balance 200.

Here are some convenient important Intelli-Balance features:

• Two DC motors with unique pressurisation techniques
• When there is more demand for airflow due to increased activity or occupancy, the boost function enables this to happen under the control of the tenant.
• MERV 13 supply filter; MERV 8 and HEPA filters are optionally available.
• A condensate pipe or drain are not necessary for the appliance.
• Designed to connect to existing ducting or be used independently
• Carry handles facilitate installation and increase worker safety.
• Optional LCD removal
• Created for single-family homes and newly constructed, airtight dwellings that adhere to energy efficiency criteria
• Designed for every climate zone in North America
• Can function in places with low temperatures of -22°F (-30°C). When the outside temperature lowers to 14°F, the defrost cycle function begins to work.
• High-efficiency core material penetrated with an anti-mold treatment that
• recovers heat and balances moisture
• 67 CFM, a sensible recovery rate (SRE) of 83%
• Constant supply and exhaust airflows are controlled separately.
• external restrictions
• Meets the requirements of Novo Climate and ENERGY STAR Ontario.
• Three choices for installation – the floor, wall, or ceiling (chain mount and brackets included)
• Includes static pressure ports and instructions for balancing
• For a professional appearance from a professional installer, use a powder coat finish. No corrosion or fingerprints
• 3 years for all other parts, 6 years for the ECM motor

The MERV 13 supply-side filter that is standard for high-quality filtration without sacrificing efficiency is included with the Intelli-Balance 200. The Minimum Efficiency Reporting Value, or MERV, assesses how well filters function when they capture particles between.3 and 10 micrometres in size. The MERV rating should be as high as possible. HEPA filters, which are considerably finer, stand for High Efficiency Particulate Absorbing filters. In places with greater levels of air pollution, during wildfires, or in the case of other irritants, HEPA filters may make sense. Ken says that because a HEPA filter is working harder to trap more particulate matter, it will need to be inspected and cleaned more frequently.

With the Intelli-Balance 200, Panasonic, which takes pride in producing silent ventilation devices, achieves this goal by carefully placing the fan motors inside the appliance and employing an EPS insulation covering all throughout. This is effective and promotes operations since noisy fans prompt users to turn off equipment. Additionally, the Intelli-Balance 200 is a small device for what it performs, which might also help with noise reduction.

Ken advises using ERVs constantly. Theoretically, moisture could gather when this equipment is not in use. Even though Panasonic has included an anti-mold treatment, it is never a good idea for moisture to stay in the core.

When is an ERV Ideal?

An ERV moderates temperature and humidity variations while balancing airflows. In non-extreme differentials, it considerably aids in managing both sensible (heat) and latent (moisture) loads, which eases the burden on the remainder of this complicated system. However, an ERV is not a stand-alone heater, air conditioner, humidifier, or dehumidifier. It is a component of a system that, when properly designed and constructed, enables energy-efficient temperature, ventilation, filtration, and humidity control. An ERV assists in air conditioning and reduces unnecessary energy loss. An ERV works best in a habitable environment where people will be, where we usually heat or cool, and where it makes sense to condition our air for most or all of the time.

It’s interesting to hear Ken and Green Builder Matt Hoots discuss the current advancement of HVAC design and architectural thought as well as when an ERV makes the most sense. Matt points out that there is still plenty to learn about HVAC systems. He discusses the distinctions between supply-side ventilation and balanced ventilation, which particularly exhausts troublesome air from important spaces like kitchens and toilets instead of using exhaust ventilation (pressurising the structure and pushing the air out). The two explore when and where particular components or tactics might work best. Everyone is welcome to contribute to this fascinating dialogue, which we intend to continue. When constructing the ideal system, it’s critical to take the size, airtightness, and climate zone into account.

The post What is an Energy Recovery Ventilator or ERV? appeared first on New Age America.

While soldering establishes a sufficient conductive connection between the pieces, it doesn’t always work when you have electrical goods to repair or attach. Due to its hazardous components, it is also not eco-friendly and cannot be applied to heat-sensitive items. JB Weld therefore appears to be a substitute, but does it conduct electricity?

Electricity is not conducted by JB weld. It is an electrical insulator made of 30–40% epoxy resin and 50% calcium carbonate. In both its liquid and hardened phases, JB weld is heatproof and pressure-resistant. To increase device longevity, it is applied to microelectronics, communication equipment, and medical electronics.

What is J-B Weld

You can use JB Weld, a two-part adhesive, on a variety of surfaces, including glass, ceramic, metal, PVC, wood, fabric, or paper. In order to create a strong bond, you can also use it as a laminate, sealer, or electrical insulator.

It can endure high pressure and temperatures as high as 500°F (260°C) continuously, and as high as 600°F (316°C) for a period of 10 to 15 minutes.

JB Weld comprises two tubes: the steel (black package of resin) and the hardener. It is a permanent solution and can be shaped or drilled after treatment (the red one). You must squeeze equal amounts from each tube and combine them to obtain the right ratio.

Why J-B Weld Is Not Electrically Conductive

One steel-based tube of JB weld is included, but it also has a small amount of iron powder, which makes the adhesive more resilient and gives it a grey tone. However, there isn’t enough metal present for it to be electrically conductive.

JB weld is mostly made up of insulator components like 30–40% epoxy resin and 50% calcium carbonate. Calcium carbonate is an insulator because it is water soluble. Electrical components are shielded from dirt and moisture by epoxy resin.

JB Weld is suitable for use on motors, transformers, and bushings. However, you should employ electrically conductive adhesives to enhance the electrical and thermal connectivity in electronic systems.

Conclusion

Popular glue JB Weld is frequently used to patch up tiny gaps or cracks in METAL. JB Weld is sometimes conductive, despite popular belief to the contrary. In truth, JB Weld can be a very good conductor of electricity if used properly.

Related Blogs

The post Does J-B Weld Conduct Electricity? appeared first on New Age America.

All of the most recent home renovation products for enhancing your home are tested by the engineering specialists at the Good Housekeeping Institute. On a variety of materials, including primed sheetrock and sensitive paper, we take into account things like ease of application, the cleanliness of the paint edge, and if it peeled the surface it was glued to when removed. The removal of the tape was next examined to determine whether (and to what extent) the surface was disturbed. The following are the top painter’s tapes for all jobs, in our opinion, based on analysis of approximately 100 data points from lab tests:

• Frogtape is the best painter’s tape overall. Decorative tape for delicate surfaces
• Best Price Tape for painting: Painter’s Mate Painter’s tape in green
• Frogtape is the best multi-surface painter’s tape. Multi-Surface Artist’s tape
• The most widely used tape for painting is Scotch Blue Original Multi-Surface. Artist’s tape
• Scotch Rough Surface Painter’s Tape is the best painter’s tape for textured walls.
• Scotch Delicate Surface Painter’s Tape is the best tape for delicate surfaces, such as walls.

How to choose the right painter’s tape for your job:

Incorrect painter’s tape usage could lead to poor lines or even cause the wall behind it to be removed during removal. Consider your particular work while choosing painter’s tape to get the greatest results.

• Wall finish: It’s important to choose a tape that is appropriate for the surface it will be applied on. Multi-surface tapes may rip delicate materials like wallpaper or recently painted walls, but they will adhere better to tougher surfaces. When in doubt, choose gently.
• Width: In order to protect the most surface from errant brush strokes, wide tape between 1.5 and 2 inches will be your best solution unless you’re painting a small area. Wider tape might cost a little bit more, but it’s easier to pay a few dollars more now than it is to go back and fix any mistakes!
• Timeframe: Consider the length of time you anticipate needing to complete your task. The majority of tapes specify how long they should be left in place before being removed. It’s crucial to follow this advice to prevent the product from performing negatively, such as prematurely peeling or leaving residue on surfaces after removal.

1. BEST OVERALL PAINTER’S TAPE FROGTAPE (Delicate Surface):

Don’t be fooled by the name; although being intended for use on fragile surfaces, this painter’s tape performed well in our testing, earning it a high ranking. In our lab experiments, we discovered that the mildly adhesive paper tape was simple to work with—from pulling it off the roll and adhering it to the wall to the final removal. This made it suitable for both straightforward lines and more intricate designs. It can remain in place for up to 60 days before painting after it has been applied to drywall that has been papered or primed. The tape was removed, leaving behind precise, sharp lines.

The tape is available in widths of 0.94, 1.41, and 1.88 inches and may be used to cover a lot of territory inside a home, including primed drywall, fresh paint, finished wood, wallpaper, veneer, laminate, and vinyl. However, you’ll probably be better off using a stronger adhesive for unfinished or unprimed surfaces.

2. BEST VALUE PAINTER’S TAPE PAINTER’S MATE (Green):

Despite its medium stickiness, Painter’s Mate Green is soft on surfaces and simple to use from application to removal. A few dollars less per roll than other painter’s tape options of the same width, it is a multi-surface crepe paper tape that may be used on painted surfaces, glass, wood, metal, and vinyl. The tape may not give the smoothest edges, though, since we discovered some bleeding and feathering after removal in GH Institute tests. The widths of this tape are 0.94, 1.41, and 1.88 inches.

3. BEST MULTI-SURFACE PAINTER’S TAPE FROGTAPE (Multi-Surface):

You’ll need a tape for harder surfaces that has just the right amount of adhesive to hold it in place without damaging your wall when you remove it. When it comes to surfaces, Frogtape Multi-Surface finds a happy medium between cured paint, untreated wood, metal, glass, stone, and carpet.

In studies conducted by the GH Institute, we discovered that this tape’s thickness and stickiness—while making it more difficult to work with—actually worked to its advantage by enabling it to adhere to stronger surfaces. It still left sharp edges and was quite simple to apply and remove.

You have plenty of time to finish your project because it can stay on surfaces for 21 days, but if you’re working in full sunlight, that time limit is reduced to only seven days. The tape comes in widths of 0.94, 1.41, and 1.88 inches.

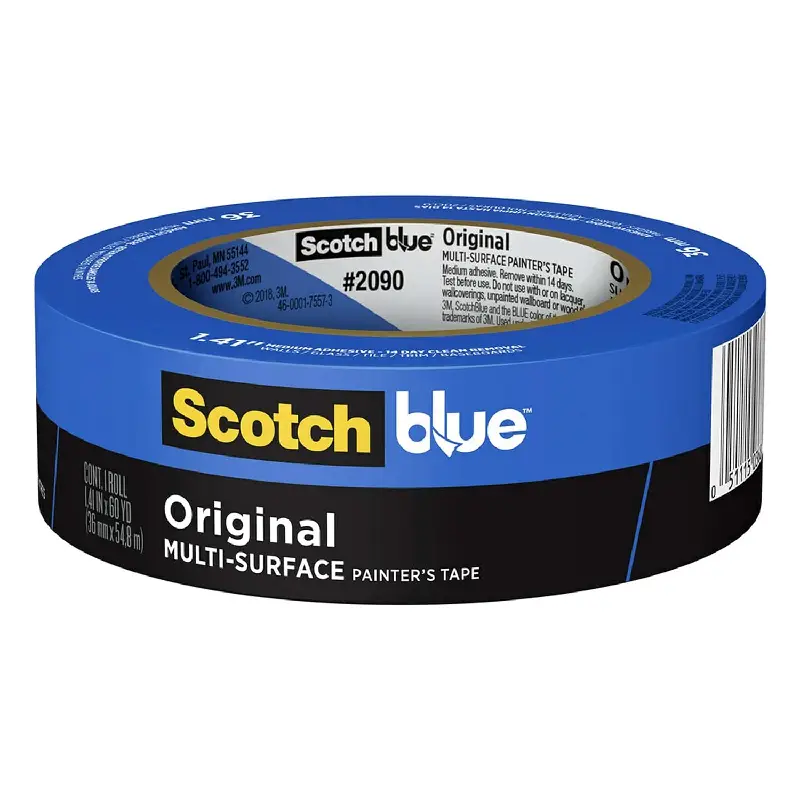

4. MOST POPULAR PAINTERS TAPE ON AMAZON SCOTCH (Blue Original Multi-Surface):

Scotch Blue Original Multi-Surface Painter’s Tape has acquired a devoted following and is currently the number one best seller on Amazon. Walls, trim, tile, and glass are just a few of the typical domestic surfaces that our medium adhesive crepe paper tape adheres to.

This tape is available in multi-packs that save money for big jobs in widths up to 2.83 inches, which is about an inch wider than most other options. In testing conducted by the GH Institute, this tape was easy to rip off the roll, stick to the wall, and peel off, however engineers did observe feathery edges, some bleeding, and peeling on delicate surfaces.

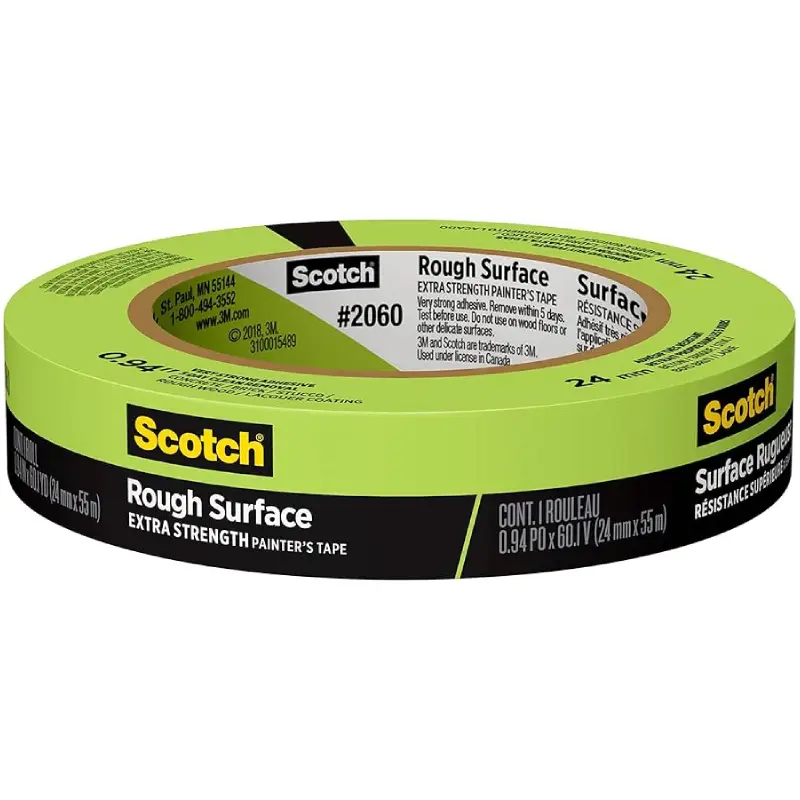

5. BEST PAINTER’S TAPE FOR TEXTURED WALLS SCOTCH (Rough Surface):

Brick, stone, and concrete surfaces are going to need extra glue to attach to them. The strong adhesive from Scotch Rough Surface is designed to stick to sturdy surfaces while remaining simple to use. Available in widths of 0.70, 0.94, 1.44, and 1.81 inches, it is a crepe paper tape.

According to user reviews, this tape adheres well to somewhat textured surfaces and provides the crisp lines they want with no bleeding. But this tape shouldn’t be used on typical interior surfaces like painted drywall, plaster walls, and wood trim because doing so could damage those materials when it’s removed.

6. BEST PAINTER’S TAPE FOR DELICATE WALLS SCOTCH (Delicate Surface):

For sensitive surfaces like wallpaper, this soft tape is a good choice because it is among the simplest to shred, stick, and remove. In laboratory studies, the minimal adhesion left the walls intact following application, but with varying results: When the tape finally fully peeled off the wall, it revealed a little feathery paint edge rather than the crisp line you’ll usually be seeking. The tape occasionally pulled off the wall prematurely.

It comes in widths of 0.70, 0.94, 1.41, and 1.88 inches and is designed for interior usage on softly textured drywall, wallpaper, finished or engineered hardwood, cabinets, and veneers.

Conclusion:

Overall, clean paint lines and splotchy work can both be caused by poor painter’s tape. Despite this, the cassettes we examined performed closely together, indicating that there weren’t any noticeable disparities between them; each tape received a score that was within 10 percentage points of the others. It’s critical to comprehend your need for the painter’s tape before making a choice. Not all painter’s tapes are created equal; some have a very adhesive substance, while others might have a more soft adhesion to prevent sticky residue from ruining the surface.

The post What are the Best Painters Tape of 2022 appeared first on New Age America.

Panasonic WhisperFitEZ Bathroom Ventilation Fan (FV-0511VF1)

Panasonic WhisperWarm Bathroom Ventilation Fan (FV-0511VH1)

Panasonic WhisperSense Bathroom Ventilation Fan (FV-0511VQC1)

Panasonic WhisperGreen Bathroom Ventilation Fan (FV-05-11VKL2)

Panasonic WhisperValue Bathroom Ventilation Fan (FV-0510VS1)

How Efficient are Panasonic Bathroom Fans?

Panasonic’s exhaust fans use premium ECM (electrically commutated motor) motors, which consume less energy yet produce more air.

Four pole AC and DC motors make up these fan motors. Since they have four poles, they operate more smoothly and efficiently than regular bathroom fans.

And naturally, this leads to higher energy efficiency and quieter exhaust fans that use a lot less energy over the course of a year.

What Is The Energy Cost To Run A Panasonic Bathroom Fan?

There is a straightforward calculation you can do to determine the cost to operate your Panasonic fan over the course of a year.

Find out the bathroom ventilation fan’s wattage first. The WhisperFitEZ, for instance, uses roughly 25 watts. As a point of reference, the earlier Broan 671 bathroom fan consumes 250 watts, which is ten times more energy.

A conversion of 25 watts to kWh yields a daily energy use of 0.6 kWh. It uses 219 kWh in a year (365 days multiplied by 0.6 kWh).

In the USA, a kilowatt hour costs on average roughly 12 cents. Thus, 219 kWh times $0.12 equals $26.

In essence, you will spend about $26 if you use your WhisperFitEZ constantly for an entire year, and by no means would the majority of homes leave their fan on constantly.

What Is SmartFlow Technology?

Since Panasonic motors are ECM, they may instantly change their speed to achieve the desired CFM.

Bathroom fans, especially Panasonic vent fans with SmartFlow technology, will turn on automatically when they detect static pressure. Therefore, if your duct system has a few twists, you won’t have to worry about not reaching your desired CFM because the fan will automatically increase its speed.

How Quiet Are Panasonic Bathroom Exhaust Fans?

The majority of Panasonic bathroom fans have a sound rating of 1.0 sone or less, which indicates that they are extremely quiet.

Additionally, Panasonic enjoys using bigger blower wheels because they can flow more air at faster RPMs while producing less noise. In general, a smaller blower wheel will move less air (at a lower RPM) and make a lot more noise.

On the market, Panasonic offers some of the quietest bathroom fans.

Sones

Ventilation fan noise is measured in sones. In general, the bathroom vent fan is quieter the lower the sones. I would consider anything rated as 1.0 sone or less to be very quiet. Most homes have a bathroom fan that is very noisy and in the 4.0 sone range.

Noise Complaints

To be honest, one of the most common complaints in the market is from homeowners about noisy bathroom fans, and Panasonic fans aren’t exempt. Unfortunately, noise levels can also be increased by things other than fans.

Panasonic tests the noise levels of their exhaust fans in optimum conditions. Therefore, if you have a 3-inch duct instead of the 4-inch duct that Panasonic employs and advises using, your noise will be louder due to the higher resistance.

Additionally, since the vent duct could not even be connected inside the wall, you shouldn’t presume that the bathroom fan is truly sucking air out of the building. By turning on the fan and observing air flow at the outer cover, you can confirm air flow.

Additionally, noise levels might rise with each duct turn and length of the run. The amount of noise will increase if your duct is 30 feet long and has three 90-degree turns.

The most crucial aspect of achieving the specified Panasonic sone rating is matching the recommended duct size, which is often either 4-inch or 6-inch.

What is a Panasonic

If put properly, Panasonic bathroom vent fans are premium exhaust fans made to get rid of moisture and unpleasant aromas from your bathroom.

Panasonic offers a variety of sizes and features for their exhaust fans.

The majority of the CFM (the measurement of fan speed) falls between 50 and 110 cfm. I advise purchasing a fan whose speed is at least 50 cfm. Here is a link to my comprehensive article on bathroom fan sizing.

What Are The Best Panasonic Bathroom Fans According to us?

1. Panasonic WhisperFitEZ (FV-0511VF1)Bathroom Fan:

The WhisperFitEZ by Panasonic is our choice for the finest bathroom vent fan.

With the WhisperFitEZ, you may select between 80 and 110 cfm. You can rapidly switch to 110-cfm by just flipping a button on the housing if 80-cfm isn’t powerful enough for you. Additionally, because of its low profile, it is excellent for remodelling or tight ceiling cavities.

A Flex-Z Fast installation bracket is included with the WhisperFitEZ, which should make installation simpler. The sound rating of the Panasonic motor is only 0.3 sones, which is incredibly low.

2. Panasonic WhisperWarm (FV-0511VH1) Bathroom Fan:

The Panasonic WhisperWarm is a high-end bathroom heater and combined fan.

On chilly mornings, the 1600-watt heater’s stainless steel-sheathed heating element will swiftly warm up your bathroom.

With this fan’s “Pick a Flow” technology from Panasonic, you may select a flow rate of 50, 80, or 110 cfm.

The sound rating is only 0.7 sones, and the 110-cfm fan speed is adequate for most restrooms.

3. Panasonic WhisperSense (FV-0511VQC1) Bathroom Fan:

The Panasonic WhisperSense is a high-end bathroom fan with a humidity sensor.

When the moisture level reaches your desired level, the humidity sensor will turn on the bathroom fan. It will switch off when the humidity level decreases.

There is a motion sensor in addition to a humidity sensor, and you may choose to utilise it to control whether the fan is on or off based on movement. This fan’s cfm may be selected from 50, 80, or 100 cfm using a little switch located beneath the cover.

4. Panasonic WhisperGreen (FV-05-11VKL2) Bathroom Fan:

The Panasonic WhisperGreen is a premium bathroom fan with an LED light.

The LED light is a dimmable 10-watt LED chip panel. In order to have a warm glow in the evening, it also comes with a 1-watt LED nightlight.

Additionally, a switch inside the housing lets you choose between 80 and 110 cfm.

The whisper in its name refers to how quiet this fan is—0.3 sones.

5. Panasonic WhisperValue (FV-0510VS1) Bathroom Fan:

The Panasonic WhisperValue is a fantastic, cost-effective bathroom fan. It’s low profile makes it equally compatible with 2×4 construction (minimal thickness).

By just flipping a switch on the housing, you may choose between 50, 80, or 100 CFM for the fan speed on this unit.

The ECM high-quality motor should last longer because it uses SmartFlow technology to adjust the fan speed.

In a new building, an L-shaped bracket makes installation simpler.

Conclusion (our top choice):

The WhisperFitEZ is our top selection for the best Panasonic bathroom fan. Here is why.

#1. Pick A Flow

With the WhisperFitEZ, you may choose between 80-cfm and 110-cfm by just flipping a little switch (after removing the cover). The majority of other bathroom fans lack this feature.

#2. Low Profile

Due to its low profile, this fan ought to be simpler to install in your ceiling or wall. In essence, the housing is substantially thinner than a typical fan.

#3. Quality Motor

The high-quality and effective Panasonic motor will increase the lifespan of your bathroom fan.

#4. Quiet

This bathroom fan is incredibly silent, with a rating of only 0.3 sone.

The post Top 5 Best Panasonic Bathroom Fans in 2022 appeared first on New Age America.

The standard solution is frequently to utilise the screw-in electrical connector itself, or even wire nuts and electrical tape, if you need to splice wires together in the field. Although both approaches appear to be effective, there is some technique needed in putting them together. If the wires are too slack, they might not be secure; if they are too tight, you risk injuring the connector or, in the case of wire nuts, having the wires burst out.

Is there really a simpler way, despite the fact that you could believe it to be a necessary evil of the job? A more trustworthy approach? The lever nut-style Wago wire connectors are the unequivocal “yes” to both questions.

How to use Wago Lever Nuts and When Were They First made?

Lever nuts were invented by WAGO, who in 2003 received UL approval for the first such product. Simply cut the wires to the desired length, pull the lever on the appropriate connector up, push the wire into place, then flip the lever back down to use them. For their more recent WAGO 221 series connectors, their blocks are available in two different forms and in 2, 3, and 5 wire formats.

The older 222 series can handle solid-core or stranded wire between 28 and 12 AWG (.08 and 2.5mm2). Remember that thinner wire is indicated by greater numbers. Connectors have a 20A capacity and a 600V UL listing. There are two different versions of the 221 line. The 12 AWG version is UL approved for 600V and 20A and is compatible with wires between 24 and 12 AWG (.2 and 4mm2). The 10 AWG version is UL approved for 600V and 30A and works with 20 to 10 AWG (.5 to 6mm2).

Although it is possible to find generic 222-style lever nut connectors, WAGO is such a market leader that the phrase “WAGO connector” is generally used as a general term. The WAGO 221-style nuts, which even when compared to the 222 have several really beautiful qualities, almost a 40% reduction in size, something you often won’t find in the generic form.

How to use Wago 221 Connectors?

Over its predecessor, the WAGO 221 series offers a number of significant advantages. First of all, these new connectors take up a lot less room in packed panels thanks to a 40% size decrease compared to the 222 Series. The levers are also made to open and close with less force. While the WAGO 221 series includes two recessed test points on each connector—one in the front and one in the rear, beneath a lever—the WAGO 222 series only has one. Both even offer instructions for how far to remove the wire on the bolts themselves.

The WAGO 221 connector’s transparent housing, lets you see whether your wire is properly positioned inside the clamping compartment, is perhaps its best feature. Both types of connectors are very remarkable inventions that handle a range of wire gauges firmly and effortlessly! The WAGO 222 is rated to hold a finer gauge of wire (down to 28 AWG) when necessary, but the WAGO 221 type offers a number of significant advantages.

Conclusion

To recap, Wago Connectors were created to facilitate splicing without the use of tools. Wago’s clamp technology has a quicker installation process and requires no maintenance. Wago connectors are easy to use, and are great solid, and fine stranded conductors. You will be able to utilise these connectors and know how to use them without any problems with our assistance, and they will last you for a very long time.

The post How to use Wago Connectors? appeared first on New Age America.

Keep reading until the conclusion of this essay if you don’t think I’m telling the truth. We’ll go over all there is to know about Panasonic bathroom exhaust fans, including why they are the best. In the event that you need assistance deciding on a certain model, we will also offer some ideas and advice of my own.

The Best Exhaust Fans: Why Panasonic?

Panasonic is a name that, if you haven’t been living under a rock, you’ve undoubtedly heard of. They have a long history and a solid reputation, and numerous popular household appliances bear their name. And with good cause!

They never skimp on quality when producing any equipment.

That also holds true for the exhaust fans in their bathrooms. The class-leading Panasonic bathroom exhaust fans are head and shoulders above the typical low-cost exhaust fan. The typical inexpensive exhaust fan is ineffective and noisy. They frequently fall short of the stated CFM ratings, leaving your bathroom moist and unsanitary.

The most crucial aspect of Panasonic bathroom exhaust fans is their high level of energy efficiency. As one of the top competitors for the energy star rating, Panasonic exhaust fans are good for the environment and your electricity cost.

ECM Motors Are Energy Efficient and Quiet

Really high-quality brushed electrically commutated motors are used to create these exhaust fans (ECM). ECMs provide excellent performance with optimum effectiveness. ECM motors are reliable and have a long lifespan. all while making barely audible noise.

ECM motors operate much more quietly than conventional motors found in other bathroom fans. As a result, they are not only quiet and energy-efficient but also less likely to overheat and malfunction.

For peace of mind, a long warranty

The endurance of Panasonic bathroom exhaust fans is backed by their super-long warranty durations. Panasonic exhaust fans come with at least a 3- to 6-year warranty, but the majority of exhaust fans only give a 1-year warranty. But given how durable they are, you won’t need to worry too much about that.

Easy Installation Thanks to the Flex Z Bracket

The flex z brackets for Panasonic bathroom exhaust fans are included. This implies that both their installation and replacement are incredibly simple. Therefore, you may no longer worry with exhaust fans that take a long time to remove and install. Panasonic fans are easily installed and changed.

Panasonic’s exhaust fans are now the best on the market because of all of these advantages and characteristics. So choose Panasonic if you’re wanting to buy one.

Which Panasonic Bath Fan Should You Choose?

I’ve probably persuaded you by this point that Panasonic bathroom exhaust fans are the best on the market, and that you should get one. But the matter of which model to purchase still remains. Your question is valid given the wide selection of excellent devices Panasonic offers.

Which bathroom exhaust fan you should choose depends on a few distinct aspects. Check out this guide to learn how to choose the best bathroom fan for you.

Here, we’ll give you a general suggestion that works well in the majority of circumstances: WhisperCeiling, a Panasonic FV-0511VQ1 product.

Review of the Panasonic FV-0511VQ1 WhisperCeiling

The best part of this bathroom exhaust fan is that it is highly adaptable. It will be suitable for 90% of American & Canadian bathrooms.

It can adapt to both 4″ and 6″ ducts so you don’t have to replace the duct when replacing the fan. You also get three different power levels at 50 CFM, 80 CFM, and 110 CFM. This means that bathrooms of almost every size can benefit from these fans.

Important note: 6″ duct is recommended if you plan on using the 110 CFM setting. It will be considerably noisier with a 4″ duct at that airflow.

At a max power of 110 CFM, this is a powerful fan, but do not let that scare you as it is still silent. With the energy star certification, it’s also very power efficient.

What you get with the Panasonic FV-0511VQ1 purchase

• Precision Spot Ventilation: This exhaust fan is very precise in cleaning away the impurities in the bathroom air. Furthermore, pollution is removed from the bathroom at a very fast rate.
• Highly Adaptable: From duct size to fan speed, this fan is highly adaptable. It can fit in a large number of bathrooms without any kinds of adjustments at all.
• Easy Installation: The flex z bracket ensures that you can easily install and replace the fan even from beneath the ceiling.

Who Produces Bathroom Exhaust Fans That Are the Quietest?

We also have a suggestion if you’re looking for a bathroom exhaust fan that is incredibly silent. Yes, Panasonic once more produces the most noise-free bathroom exhaust fans.

In fact, Panasonic topped our ranking of the world’s whisper-quiet bathroom fans.

Panasonic bathroom exhaust fans are less than 1.5 sones loud, compared to the typical bathroom exhaust fan’s 1 to 5 sones of noise. In reality, most models fall below 0.3 sones.

The Panasonic FV-0511VQC1 WhisperSense bathroom exhaust fan is the company’s overall quietest model. This bathroom exhaust fan is so quiet—only 0.3 sones—that you might need to double-check to see if it’s actually on. It makes very little noise and continues to be quiet for many years.

It also meets the other requirements without failing.

The same high-quality components and materials are used in this fan as in other Panasonic fans. As a result, you need not be concerned about quality being compromised. Your life will be made easier by the versatility, power efficiency, and lifespan that are all present.

For your bathroom to stay fresh and comfortable, it contains various sensors that instantly detect odour and pollution and eliminate them as soon as possible.

Additionally, the warranty on the motor alone is for 6 years. You won’t ever have to be concerned about the motor degrading or performing poorly.

Additional considerations

Let’s take a look at some considerations for installing an exhaust fan in your bathroom

Insulation for ducts:

Depending on whether the duct will run through a conditioned area or an unconditioned area, the duct insulation requirement may or may not apply. You ought to take that knowledge into account and proceed accordingly. Check read this post to learn more about exhaust duct insulation.

Duct Size:

The majority of residential bathroom exhaust fans use either 4′′ or 6′′ ductwork. You can use an adapter to make everything fit, however the fan typically makes more noise when you use an adapter to connect two different sizes. Therefore, it is advised to match your fan’s duct size.

Conclusion

To recap, Panasonic makes the best bathroom exhaust fans. They are both high quality and of good value. My overall recommendation is the Panasonic FV-0511VQ1 WhisperCeiling. But if you really want a super quiet one, then go with the Panasonic FV-0511VQC1 WhisperSense.

The post Who makes the Best Bathroom Exhaust Fans? appeared first on New Age America.

We have a better choice with Wago lever nuts. We threw away my typical wire nut connectors with colour codes once we learned about these connectors. We’ll only use these nuts going forward.

Wago Lever Nuts: What Are They?

You open an orange lever with a Wago lever nut, insert a severed wire end, and then close the lever. You’re finished once you’ve done that for the two or three wires you’re linking, and the wires are joined when the lever is closed. Make sure that each wire is locked in by giving it a slight tug.

These lever nuts can be found for various wire gauges and in two (221-412), three (221-413), and five (221-415)-wire configurations. They work with both solid and stranded wire.

How we Tested Them

In our warehouse, we just installed a few surface-mounted electrical outlets, and the small outlet boxes made it challenging to utilise ordinary wire nuts for all the pigtailing we needed to accomplish.

In the warehouse we have boxes of Wago three-wire model 221 lever nuts. We required a way to incorporate pigtail connections, and in our warehouse we were installing seven additional boxes and connections.

Performance Evaluation

These are not simple push-connect fittings; each lever requires some effort to open, and they close with a distinct snap. The work is done by the lever closing, which you can feel.

As you enter the wires into the largely transparent plastic connector, you can see the wires. This aids in ensuring that you are fully putting them in. You can accurately remove the appropriate amount of insulation from each wire using the little gauge on the device’s side.

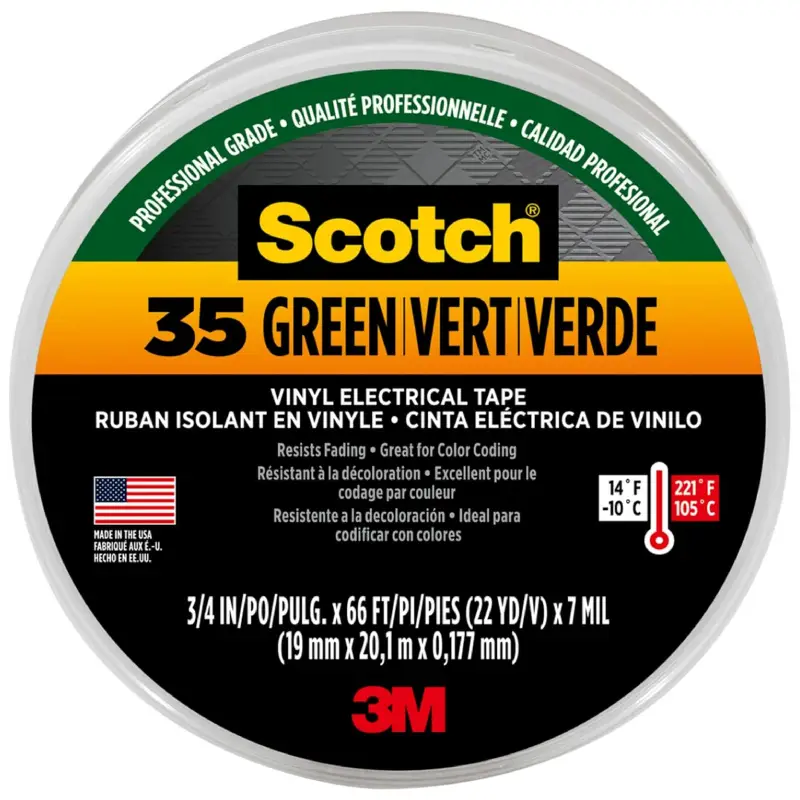

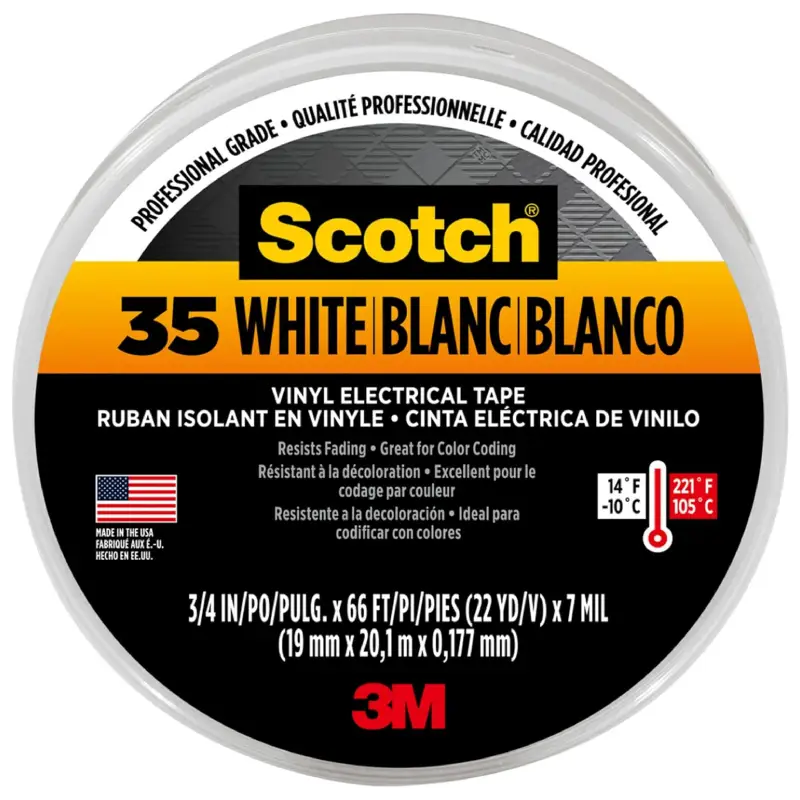

Three Wago 221s, one for the neutral, hot, and ground lines, fit easily into my little outlet boxes. To add an added layer of security, we colored-coordinated electrical tape over each lever nut so I could identify each one if we opened an outlet box. Although it is not required, it was simple and felt appropriate.

Conclusion

No problem or regret has ever existed for us. In our opinion, these connectors are reliable and a great replacement for standard wire nuts.

The lever control mechanism makes it incredibly simple to add or replace wiring whenever I need to open a junction box or light switch box.

We would advise you to look at our business’ website and conduct your own investigation. According to our experience, there isn’t much justification for the do-it-yourself homeowner to prefer conventional plastic wire nuts over this more modern method of joining electrical wires.

The post What are the best wire connectors? appeared first on New Age America.
